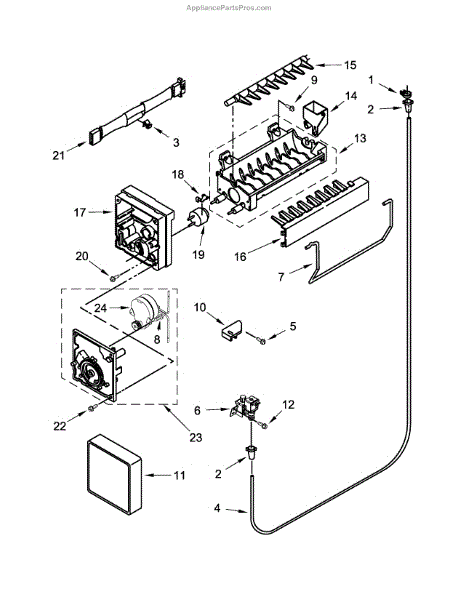

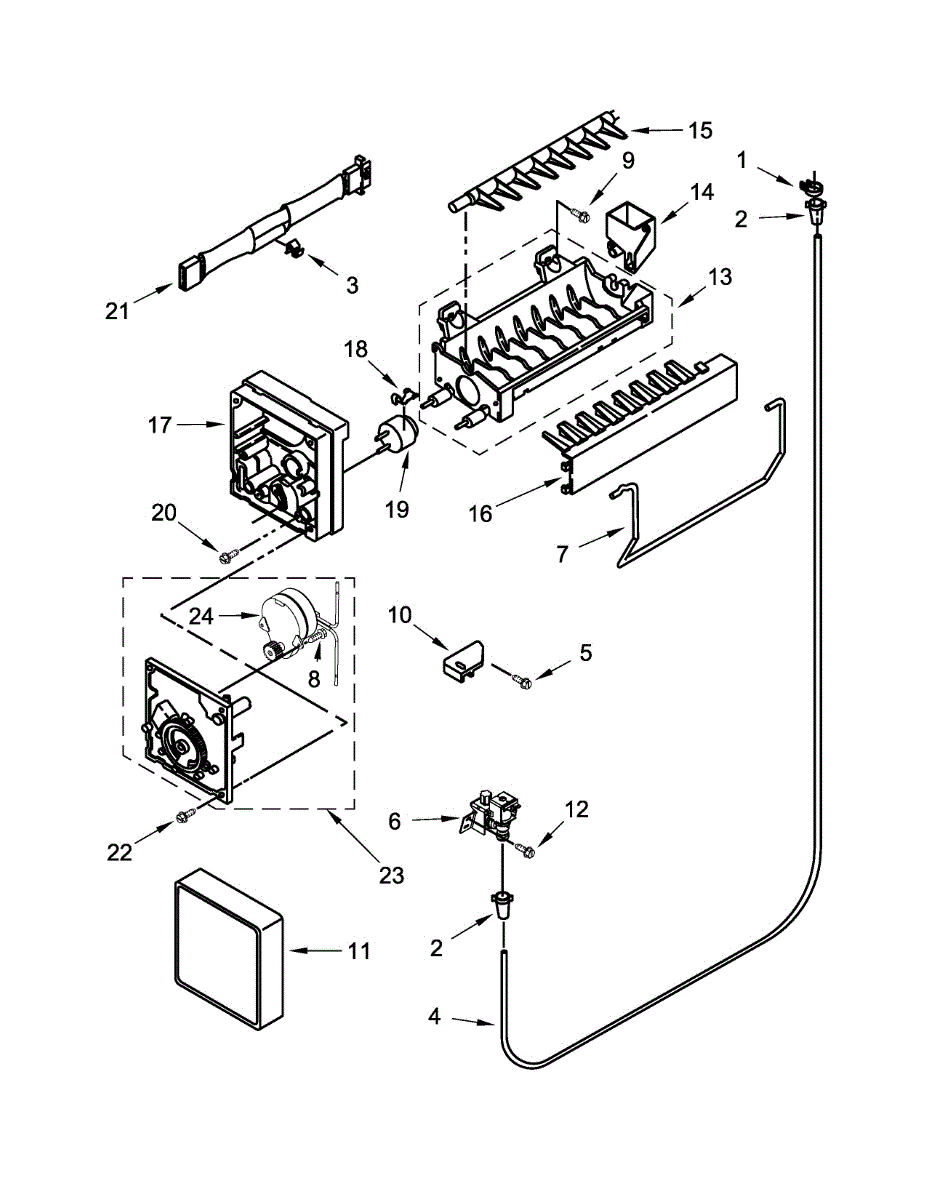

Parts for Kenmore 106.72154111 (10672154111, 106 72154111): Ice Maker Parts

Secures hoses and tubing connections in refrigerators to prevent leaks. Replace if clamp is loose, corroded, or causing water drips. Verify fit with model.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Ice maker not filling or water dispenser not working? This water inlet valve controls flow to both. Easy 30-minute DIY fix for most refrigerators.

This ice maker shut-off arm is the wire lever that detects the ice bin level and stops production when raised. Replace a bent, broken, or missing arm to restore reliable on/off control of your icemaker.

• Monitors bin fullness; in the up position it opens the internal switch to pause ice making
• Lowers as ice is used so the icemaker can resume cycles
• Restores manual shutoff when you lift the arm

• Disconnect refrigerator power and turn off the water supply before servicing
• Remove the ice bin for access; open the icemaker front cover if your model has one
• Pull the old arm straight out of the pivot holes; align and fully seat the new arm so it moves freely
• Restore power and lower the arm to resume ice production; the arm raises and stops production when the bin is full

Mounting bracket that secures the ice maker assembly to the refrigerator wall. Replace if cracked, broken, or missing to restore proper ice maker support.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Fix ice dispensing issues with this refrigerator ice crusher auger assembly. Solves problems with crushed ice not dispensing or jamming in the chute.

Replacement screw secures panels, brackets, and components inside your refrigerator. Needed when original fastener is stripped, missing, or lost.

Connects ice maker to freezer wiring. Replace if wires are pinched, damaged, or connector is broken. Installs between ice maker and freezer cavity wall.

Ice maker not making ice or leaking? This complete ice maker kit replaces corroded contacts and faulty assemblies. DIY-friendly installation in 30-60 minutes.
