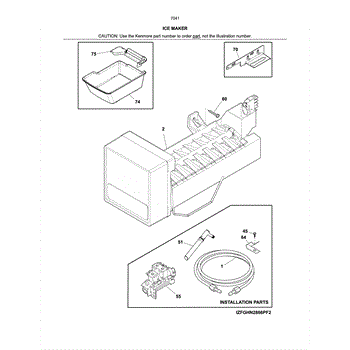

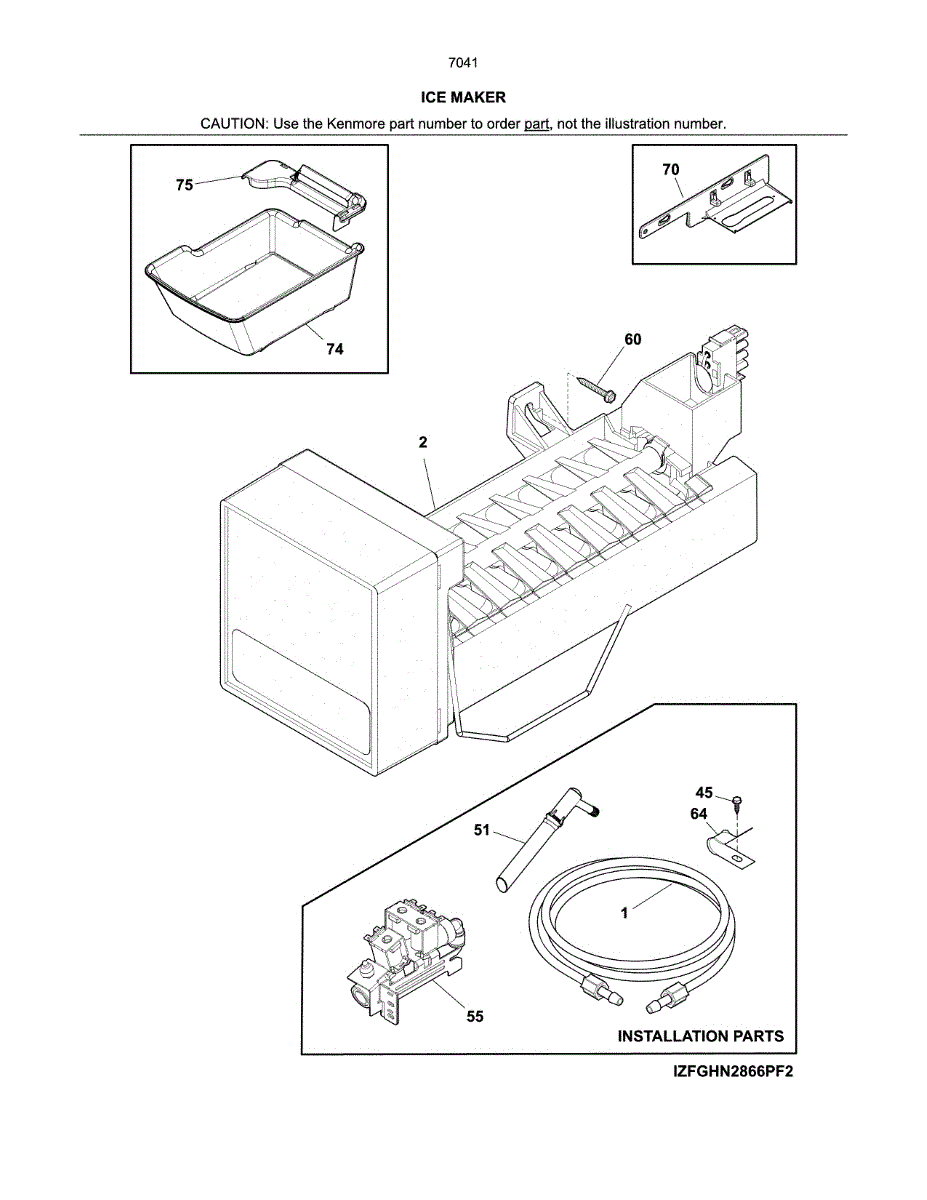

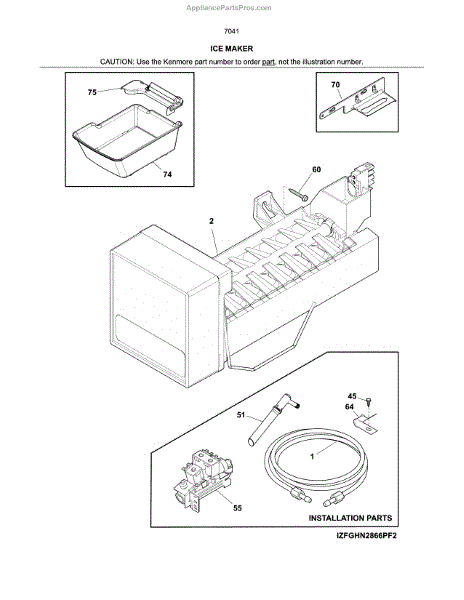

Parts for Kenmore 253.7041241A (2537041241A, 253 7041241A): Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

The Ice Maker is an OEM replacement part for Frigidaire French doors and side-by-side refrigerators. It automatically produces batches of fresh ice for daily use.

Symptoms of an issue include:

• Reduced or discontinued ice production
• Ice cubes fused or stuck together
• Water or moisture inside the refrigerator

Causes can be mineral or scale buildup inhibiting parts, or damage from opening the refrigerator door before harvest is complete. Other causes involve mold growth or freezing of internal components over time.

Compatible with Gibson and Electrolux refrigerator models as well, it maintains a constant ice supply.

This water tube kit restores the refrigerator's water path. Replacing damaged or brittle tubing helps stop leaks and brings back reliable water flow to the dispenser and/or ice maker.

• Provides a secure route for water from the inlet valve through the refrigerator
• Replaces kinked, cracked, or leaking tubing that can restrict flow
• Helps resolve little/no water dispensing, slow/no ice production, or water drips/leaks
• Matches original routing and connection style on applicable units

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel to catch residual water and depressurize the line
• Note tube routing; cut ends square and fully seat tubing into fittings; avoid kinks
• Restore water and power, then check all connections for leaks and purge air by dispensing water

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This ice maker mounting bracket secures the ice maker assembly inside the refrigerator so it stays stable and correctly aligned with the water fill tube. Replace a damaged bracket to prevent looseness and restore consistent ice production.

• Supports and positions the ice maker assembly
• Maintains proper alignment with the water fill tube for correct filling
• Damage can cause a loose/sagging ice maker, rattling, water drips near the ice maker, or intermittent/no ice
• Replace if the bracket is cracked, bent, or missing

• Unplug the refrigerator and shut off the water supply before service
• Remove the ice bin and ice maker to access the bracket; reuse existing mounting hardware
• Ensure the fill tube seats correctly and the ice maker sits level before tightening fasteners
• Restore power and water; check for leaks and proper ice maker operation

This snap bucket is the removable ice collection bin that holds and delivers cubed ice from the ice maker. It restores a secure, easy-to-remove ice storage that keeps ice contained and ready for dispensing. What it does:

• Collects and stores ice produced by the refrigerator ice maker
• Snaps into the ice maker housing for a secure fit and easy removal
• Helps prevent ice from spilling inside the freezer compartment
• Can be replaced if cracked, warped, or if ice does not properly collect

• Disconnect power to the appliance before servicing to avoid injury
• Remove any remaining ice and slide the old bucket out, then snap the new bucket into the ice maker housing
• Handle carefully to avoid damaging the ice maker components or surrounding trim
• No special tools are typically required;

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
