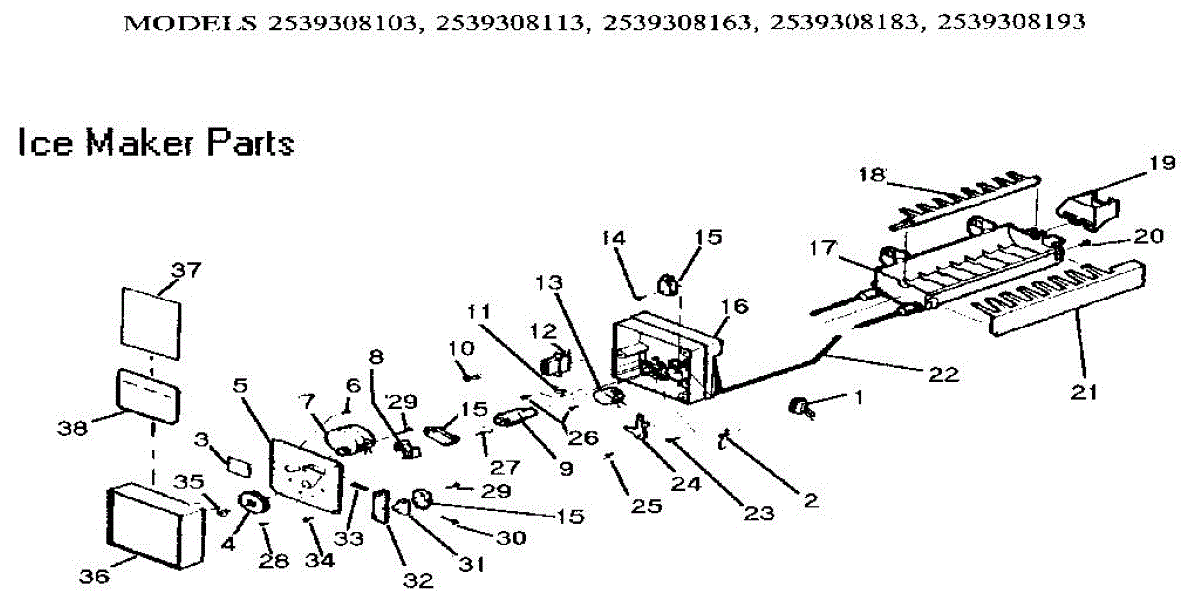

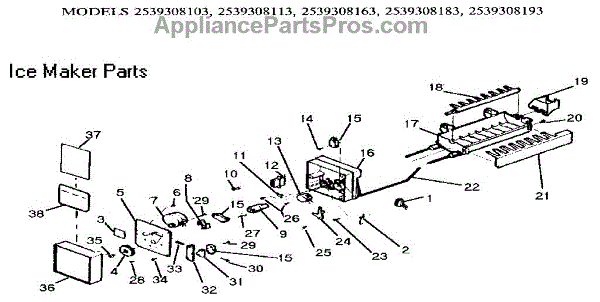

Parts for Kenmore 253.9308193 (2539308193, 253 9308193): Ice Maker Parts

Ice maker clicking or not producing ice? A worn drive gear with stripped teeth is often the cause. This 5-minute fix restores normal ice production.

Mounting plate secures the ice maker assembly inside your refrigerator. Replace if cracked, warped, or broken to restore proper ice maker support.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

This complete ice maker unit produces and dispenses ice cubes in your refrigerator's freezer compartment. It includes all internal mechanisms for water filling, freezing, and ice ejection cycles. Install this assembly if your ice maker has stopped producing ice, makes unusual noises, or produces malformed ice cubes.

Spacer component for refrigerator hold switch assembly. Replaces worn, cracked, or missing spacers. Installs between hold switch and mounting plate.

The refrigerator icemaker thermal cut-off protects the icemaker from overheating by shutting off power when temperatures exceed safe limits. Located within the icemaker assembly, replace it when ice production stops completely or the icemaker appears to have no power.

Refrigerator not cooling or running too warm? A faulty thermostat prevents proper temperature regulation. This control cycles the compressor to maintain set temps.

Specs: 4 - 24 x 0.750

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

Ice maker stopped making ice? This complete ice maker assembly resolves no ice production and leaking issues. Easy DIY install with video guide included.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

The bearing and inlet assembly supports the dryer drum's rotation and allows air intake into the system. Located at the rear of the drum assembly, it ensures smooth operation and proper airflow. Replace when you hear grinding noises, the drum wobbles, or clothes take longer to dry.

Specs: 8 - 18 x 3/8

Specs: 8 - 18 x 1

Ice maker not shutting off or making too much ice? A worn lever arm prevents proper shutoff. Simple replacement takes under an hour to restore function.

Specs: 4 - 24 x 3/8

Specs: 4 - 40 x 0.375

Specs: 4 - 40 x 3/4

Fix water dispensing issues or ice maker problems with this valve switch plate. Controls water flow to dispensers and ice makers in most refrigerators.

Specs: 8 - 18 x 7/16

Specs: 6 - 20 x 0.437

Replaces your refrigerator's ice maker cover if cracked, broken, or missing. This protective cap installs on the ice maker assembly in your freezer.

Wire harness for ice makers and refrigerators. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connectors are broken.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components
