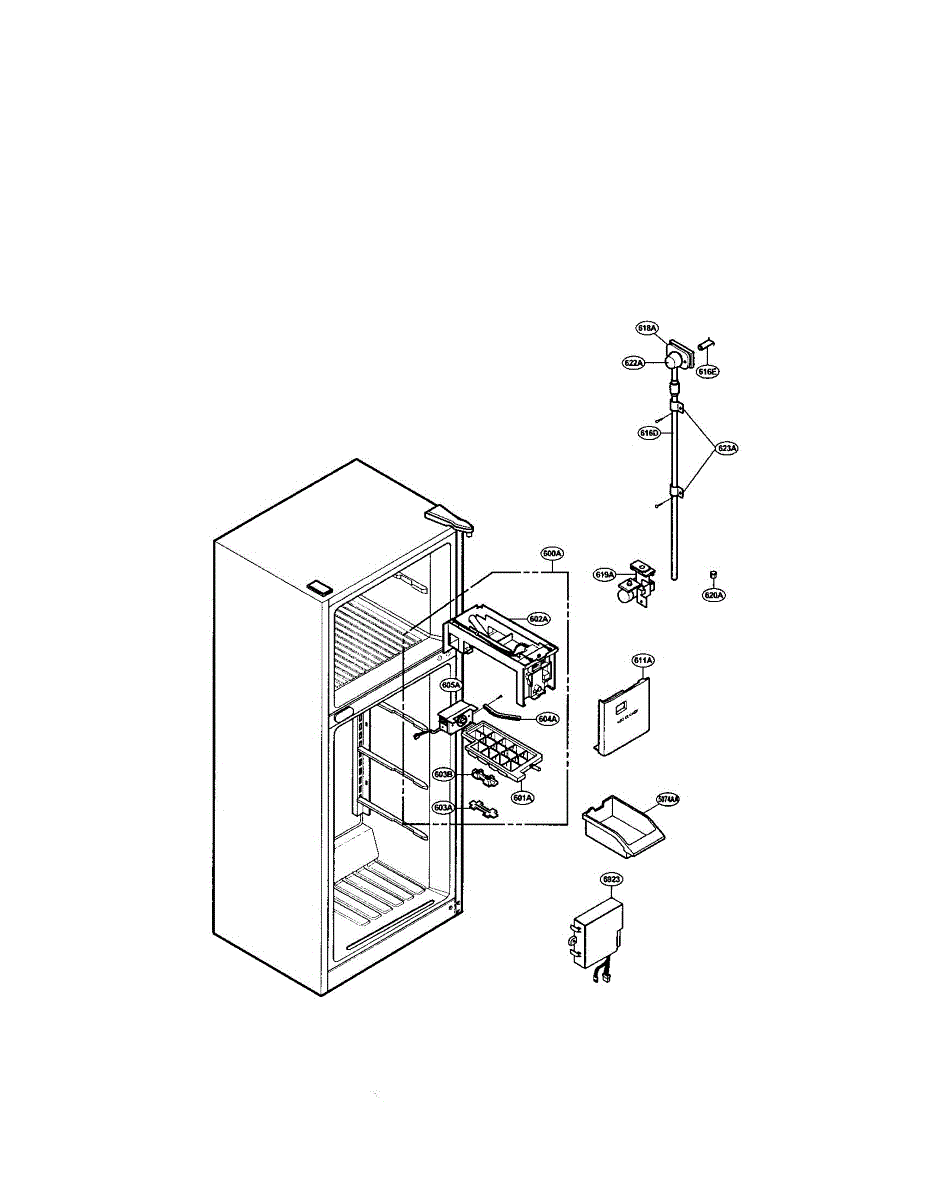

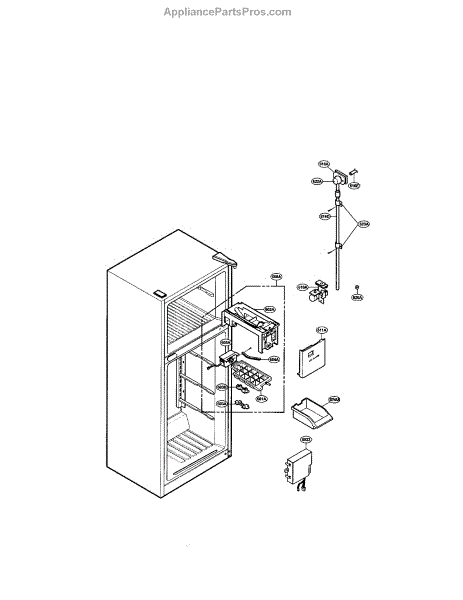

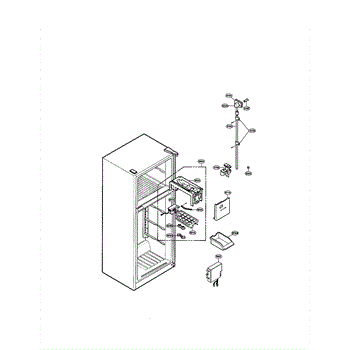

Parts for Lg LRTBC1821BK: Ice Maker Parts

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser fan assembly circulates air across the condenser coils and compressor to remove heat from the refrigeration system. Replacing a failing fan helps restore efficient cooling performance and protects the compressor from overheating. What it does:

• Draws air through the condenser coils to dissipate heat
• Supports proper system pressures and overall cooling efficiency
• Helps maintain stable temperatures in both compartments
• Common symptoms include the fan not running, loud noise from the rear, warm cabinet temperatures, or a very hot compressor area

• Pre-assembled fan motor with blade and mounting bracket

• Disconnect power before servicing; use gloves to protect against sharp edges
• Access the lower rear compartment and remove the back cover to reach the fan
• Note wire positions; move over any reusable grommets or screws and secure the assembly firmly
• The blade spins freely and is oriented to move air across the condenser; clean coils before restoring power

This condenser fan assembly circulates air across the condenser coils and compressor to remove heat from the refrigeration system. Replacing a failing fan helps restore efficient cooling performance and protects the compressor from overheating. What it does:

• Draws air through the condenser coils to dissipate heat
• Supports proper system pressures and overall cooling efficiency
• Helps maintain stable temperatures in both compartments
• Common symptoms include the fan not running, loud noise from the rear, warm cabinet temperatures, or a very hot compressor area

• Pre-assembled fan motor with blade and mounting bracket

• Disconnect power before servicing; use gloves to protect against sharp edges
• Access the lower rear compartment and remove the back cover to reach the fan
• Note wire positions; move over any reusable grommets or screws and secure the assembly firmly
• The blade spins freely and is oriented to move air across the condenser; clean coils before restoring power

The Condenser Fan Blade is an OEM replacement part for LG refrigerators. The condenser fan motor blade is located on the condenser fan motor which is usually located on or near the compressor at the back of the refrigerator. This part is responsible for circulating air over the condenser coils. This helps to remove heat from the condenser and evaporate water in the defrost drain pan.

Causes of blade failure can include normal wear over extended runtime, accumulated dirt and dust impeding airflow, or physical impact damage.

Symptoms of a faulty condenser fan blade include:

• Refrigerator fails to properly cool and maintain temperatures
• Condenser unit runs excessively as heat fails to dispel
• Abnormal noises such as grinding or squealing emanate from the condenser area

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

This electronic timer module controls cycle advancement and timing functions for the washer's control system, restoring proper cycle sequencing and timing when the original timer fails. It replaces a faulty timer assembly to help the machine run through selected programs. What it does:

• Regulates cycle timing and advances the machine through wash, rinse and spin stages
• Restores normal cycle progression when the washer won't advance or stops mid-cycle
• Can resolve symptoms such as no cycle changes, erratic timing, or unresponsive cycle selection
• Interfaces with the console and drive components to coordinate timed operations

• Disconnect power before beginning service to avoid electrical shock
• Handle the module carefully and avoid touching circuit contacts; use ESD precautions if available
• Install in the original mounting location and reconnect all wiring harnesses to their matching connectors
• Test operation through a full cycle before final reassembly

This sensor cover protects and secures the appliance sensor assembly to help maintain accurate sensor positioning and guard the sensor from damage, dust, and moisture that can interfere with normal operation. What it does:

• Shields the sensor housing from physical damage, dust and moisture.
• Keeps the sensor properly positioned so it can read conditions reliably.
• Can prevent intermittent sensor faults and related error codes when damaged.
• Helps avoid false readings that can cause incorrect cycles or behavior.

• Disconnect power to the appliance before starting any work to avoid shock or injury.
• Handle nearby wiring and sensor components carefully; avoid touching circuit contacts.
• Verify the cover seats flush and secures to the sensor housing; do not force or deform plastic tabs.
• If any sensor or wiring was disturbed during installation, recheck connections and test operation before regular use.

The Tube is an OEM replacement part for LG refrigerators. It is a 1/4" plastic tubing that transports water from the main supply line to the refrigerator's water dispenser and ice maker.

Over time, causes of a faulty water line can include mineral buildup restricting water flow, microscopic cracks developing from regular use and pressure fluctuations, or kinks interfering with the flow.

Symptoms of a problematic water line include:

• Slow or intermittent water flow from the dispenser
• Incomplete fills of ice trays
• strange noises when water is dispensed
• Water leaks underneath or behind the fridge

This LG part is also compatible with Sears/Kenmore refrigerators.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function
