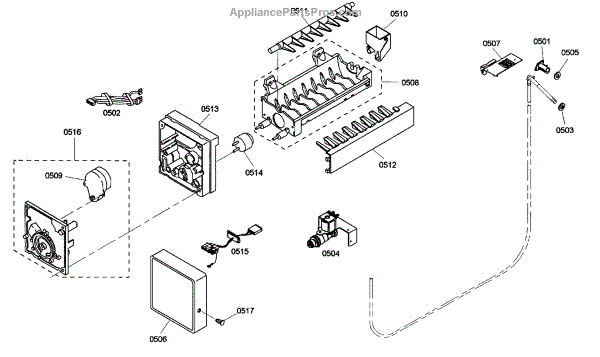

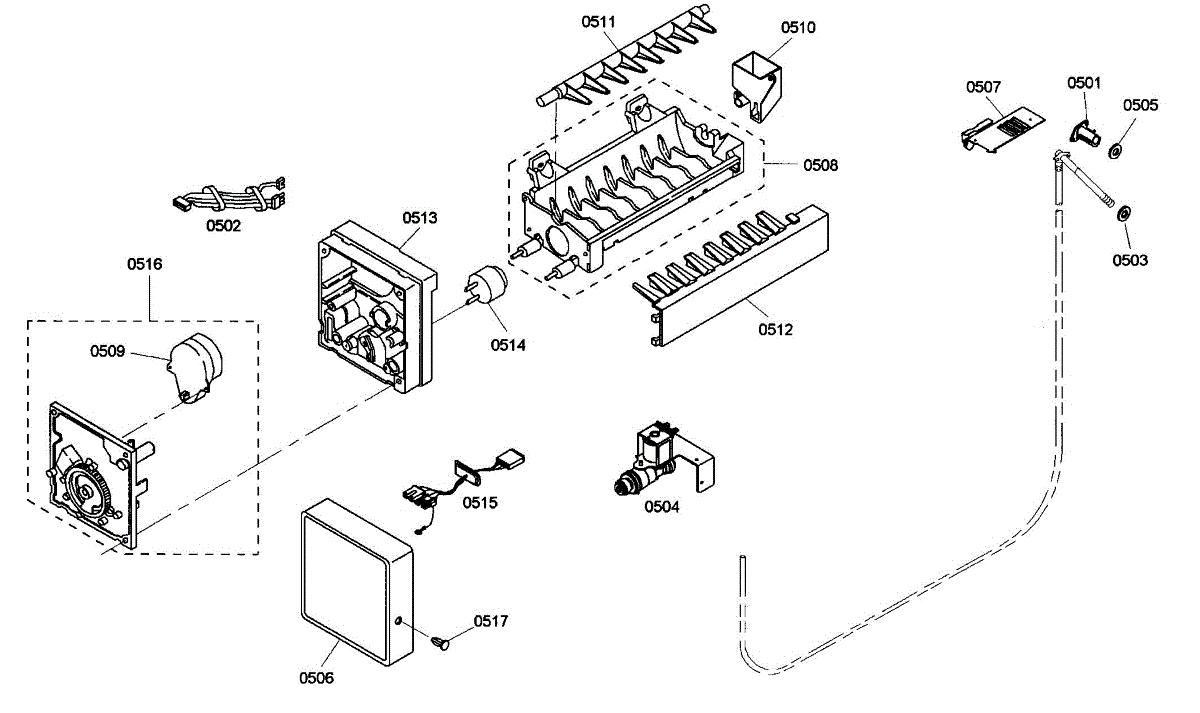

Parts for Thermador KBUIT4865E01: Ice Maker Parts

This Bosch filter removes contaminants and improves water taste. The filter should be changed every six months for best performance. Simple installation requires no special tools. Measures approximately 13.25" x 2.5" x 2.5".

This tube-fill is the water fill tube used to deliver water to the ice maker/dispensing assembly, helping restore proper water routing for reliable ice production and dispensing. Replace a cracked or clogged tube to reduce leaks and poor water flow. What it does:

• Directs water from the inlet/valve to the ice maker or dispenser
• Helps prevent water from spraying or pooling inside the freezer/refrigerator
• Commonly replaced when you see leaking, reduced ice production, or no water to the ice maker
• Works as a direct channel—does not include valves or connectors unless listed separately

• Verify power and water supply are turned off before starting work
• Handle carefully to avoid kinking; route the tube the same way as the original
• Check seals and fittings for damage and replace any worn clamps or grommets

The Water Valve is an OEM part for Bosch refrigerators. This part controls the flow of water into the refrigerator's ice maker and water dispenser system. By opening and closing in response to demands from the refrigerator's control system, it ensures the proper amount of water is supplied for making ice and dispensing water, maintaining optimal operation and efficiency.

The need for replacement can arise from a variety of causes, including mineral buildup from hard water, which can obstruct the valve's opening, mechanical failure due to wear and tear over time, or electrical issues preventing the valve from opening or closing properly.

Symptoms of a malfunctioning Water Valve include:

• No water being dispensed, indicating the valve may not be opening properly.
• The ice maker not producing ice, or producing very small ice cubes, suggesting insufficient water flow.
• Water leaking from the valve area, which can indicate a crack or failure in the valve's seal.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

A replacement heat exchanger that helps remove heat from the refrigerator cooling circuit so the appliance can maintain proper internal temperatures. Restores proper refrigerant flow and supports consistent cooling performance. What it does:

• Circulates refrigerant through the evaporator circuit to absorb heat from the fresh-food compartment
• Helps the system reach and maintain target cooling temperatures
• Commonly replaced when corrosion, leaks, or physical damage reduce cooling efficiency
• Required if symptoms include weak cooling, frost pattern changes, or visible refrigerant leakage

• Disconnect power and follow all safety procedures before servicing
• Inspect surrounding tubing and fittings for damage or corrosion; replace any compromised components
• Use proper leak-testing and vacuum procedures when recharging the system

This ice container is the molded bin that holds and dispenses ice from the freezer, restoring a clean storage area and reliable ice delivery. It replaces cracked, warped, or worn bins that leak or block the dispenser. What it does:

• Collects and stores cubed or crushed ice made by the ice maker
• Guides ice toward the dispenser and prevents jams at the chute
• Prevents freezer leakage and reduces ice melting inside the compartment
• Helps maintain proper ice flow when the existing bin is cracked, warped, or missing

• Unplug the refrigerator or disconnect power before starting any work
• Remove remaining ice and thaw if necessary to avoid spills
• Lift out the old bin and slide the new container into the same guides; no special tools typically required
• If you encounter resistance, stop and check for obstructions to avoid damage
