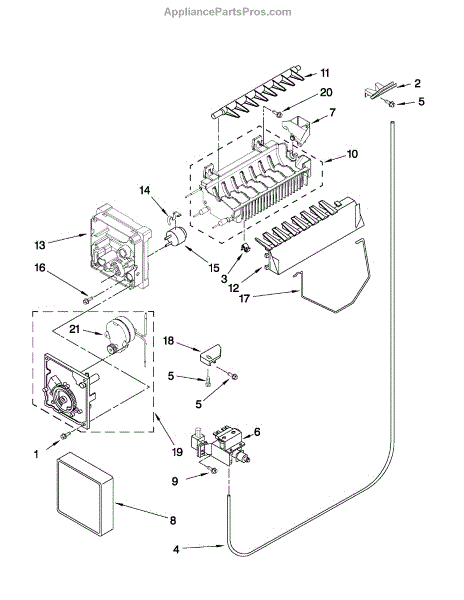

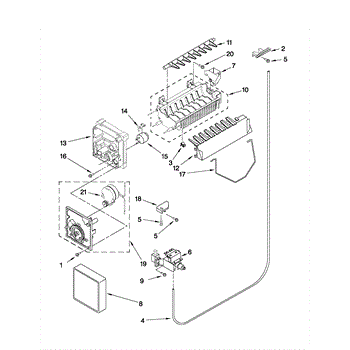

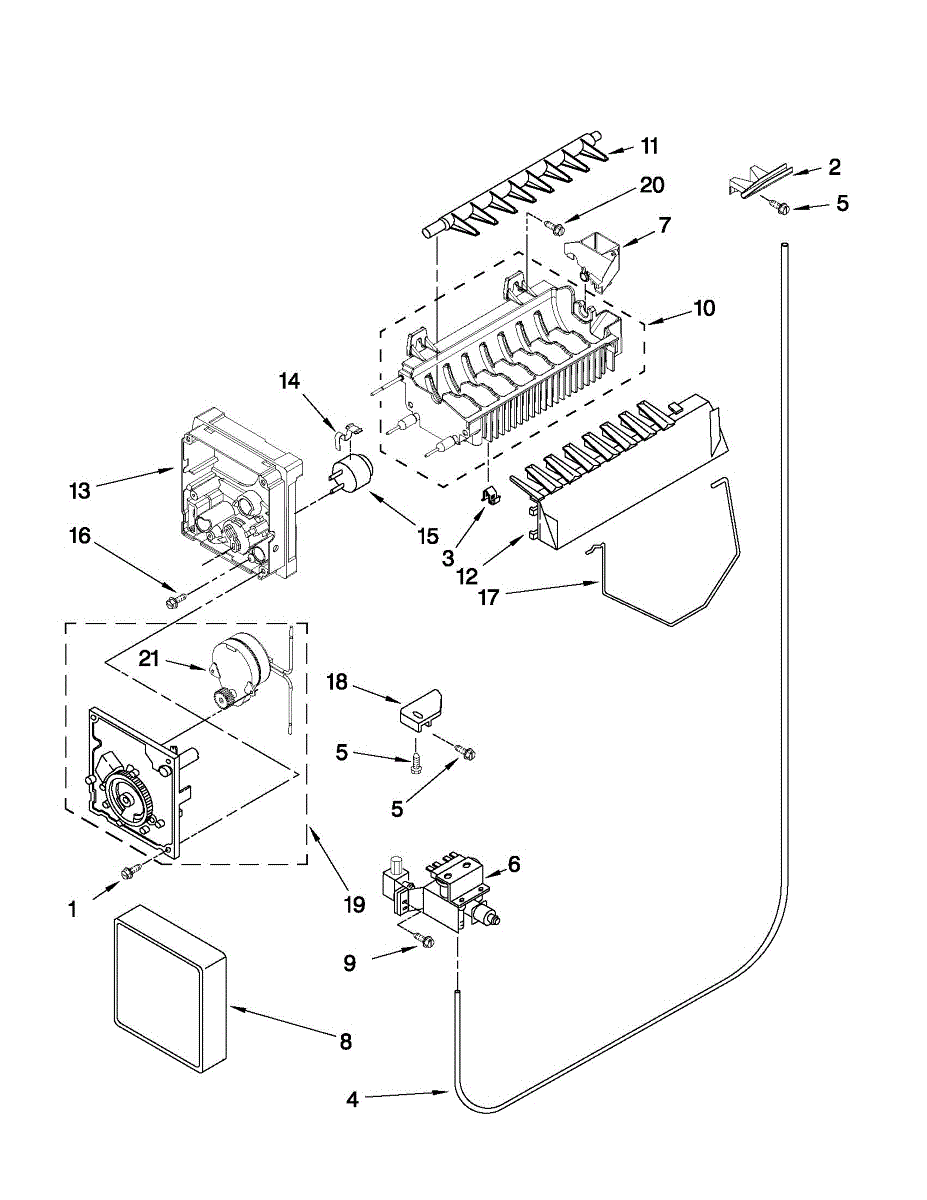

Parts for Crosley CS22CFXTS05: Icemaker Parts

This is the chute component that directs water from the fill tube into the ice maker mold inside the freezer compartment. It ensures water flows accurately into the ice tray without spilling into the surrounding freezer area. Replace this part if water is leaking around the ice maker, ice forms outside the mold, or the chute is cracked or blocked with ice buildup.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice maker not filling or water dispenser leaking? This water inlet valve regulates water flow to both. DIY repair typically takes 10-20 minutes.

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Mounting bracket that secures the ice maker assembly to the refrigerator wall. Replace if cracked, broken, or missing to restore proper ice maker support.

Ice maker stopped working or making ice? This refrigerator ice maker restores automatic ice production. DIY-friendly install in under an hour.

Note: This is an icemaker only, the bail arm and cover are not included and are sold separately or you can use the parts from the old icemaker.
