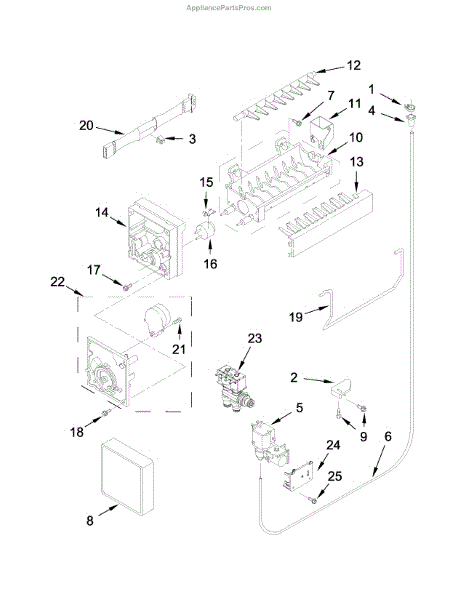

Parts for Ikea IX5BBEXDS00: Icemaker Parts

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

The ice maker bracket is an OEM part for Whirlpool refrigerators. This bracket is a structural component that holds and supports the icemaker assembly within the refrigerator. It allows for secure mounting and installation of the icemaker while also maintaining proper alignment.

Causes of a bad bracket can include wear and tear over time, cracks or breaks due to impact or stress, or corrosion issues that compromise the integrity of the mounting structure.

Symptoms of a bad bracket include:

• Loose or unstable icemaker installation
• Improper ice production or dispensing
• Noise or vibrations emanating from the icemaker area
• Moisture leaks or water damage near the bracket mounting points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

These inserts are for 1/4 inch plastic tubing. Package of 4.

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.

This replacement water tube routes incoming water to the appliance's inlet assembly, restoring a sealed path for water flow and helping stop leaks or loss of water supply at the inlet. Install when tubing is cracked, split, or leaking. What it does:

• Replaces the damaged or cracked inlet tubing that delivers water to the appliance
• Restores a proper sealed connection to prevent water leaks at the inlet area
• Helps recover normal water supply when symptoms include visible leaks or reduced/absent water flow to the inlet
• Matches OEM routing and connection points for correct fit and function

• Recommended for users familiar with appliance water connections; shut off the water supply before starting
• Turn off power to the appliance and relieve any system pressure before disconnecting lines
• Inspect and replace any worn clamps or fittings; use proper-size connectors and tighten to avoid leaks

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

This cup fill spout directs the dispenser's water stream cleanly into a cup. If the spout is cracked, clogged, or warped, it can cause splashing or persistent drips—replacing it restores a steady, controlled flow.

• Funnels water from the dispenser outlet for a smooth, targeted stream
• Helps reduce splashing and water running down the door
• Can resolve drips after dispensing, erratic spray, or a damaged/missing spout
• Visible cracks, mineral buildup, or deformation are common failure signs

• Unplug the appliance and turn off the water supply
• Open the dispenser area and release the spout from its locking tabs or clips
• Seat the new spout fully; transfer any seals from the old part if applicable
• Restore water and power, then test for proper flow and leaks

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

This ice maker shut-off arm is the wire bail that senses ice level in the bin. It lifts to stop production when full and lowers to restart cycles, helping prevent overfilling and restoring normal, automatic ice making.

• Senses bin ice level and mechanically signals the ice maker to run or stop
• Prevents overfilling by stopping ice production when the arm is raised
• Restores ice making when the arm is lowered after ice is used
• Replacing a bent, missing, or jammed arm can help with "won't stop making ice" or "won't make ice" issues

• Disconnect power before servicing; remove the ice bin for access
• Insert the arm's pivot ends fully into the ice maker head openings; ensure correct orientation
• The arm moves freely without binding, then restore power and lower the arm to resume ice production

This wire assembly connects and powers the ice maker so it can cycle and make ice. It replaces a damaged or disconnected ice-maker harness to restore electrical continuity and reliable ice production. What it does

• Provides the electrical connections between the ice maker and the freezer wiring harness
• Restores power to the ice maker when factory wiring is frayed or broken
• Helps stop intermittent or complete ice-maker failure caused by damaged connectors or wiring
• Supports proper communication for fill and harvest cycles when installed correctly

• One wire assembly for the ice maker

• Disconnect power to the refrigerator before starting any repair
• Access may require removing freezer shelves/panels and the ice maker module per OEM instructions
• Match connector shapes and routing; avoid sharp bends or pinched wiring when installing
• After installation, restore power and run an ice-maker test cycle to verify proper operation

This water inlet valve assembly controls the flow of water from the home supply into the refrigerator. Replacing a faulty valve restores proper water delivery to the ice maker and/or dispenser for consistent ice production and dispensing.

• Opens and closes to send water to the ice maker and/or dispenser as commanded by the refrigerator
• Common symptoms: no water from dispenser, no ice production, slow/weak dispenser flow
• May also present as continuous dripping into the ice maker/dispenser or leaks around the valve body
• If water lines and filter are clear but filling is inconsistent or absent, the valve may be at fault

• Disconnect power and shut off the water supply before servicing
• Place a towel or shallow pan to catch residual water; note line and wire locations for reassembly
• Ensure tubing is fully seated in fittings; avoid overtightening plastic connections
• Restore water and power, then check all joints for leaks and run the dispenser to purge air/debris

Size: 8-18 x 1/2 inch.

The Icemaker Kit is an OEM replacement part for Whirlpool refrigerators. It is a comprehensive kit that includes all the necessary components to replace or install a new icemaker in your refrigerator.

Causes of needing a new icemaker kit can include the existing icemaker malfunctioning, producing insufficient or irregular ice, or being damaged due to wear and tear.

Symptoms indicating it's time to replace the icemaker include:

• No ice production or irregular ice cube formation
• Water leaks or excessive condensation around the icemaker area
• Strange noises or grinding sounds during operation
• Error codes or warning lights related to the icemaker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models. Note: This kit no longer comes with the "shut-off" arms. Order by model if needed.
