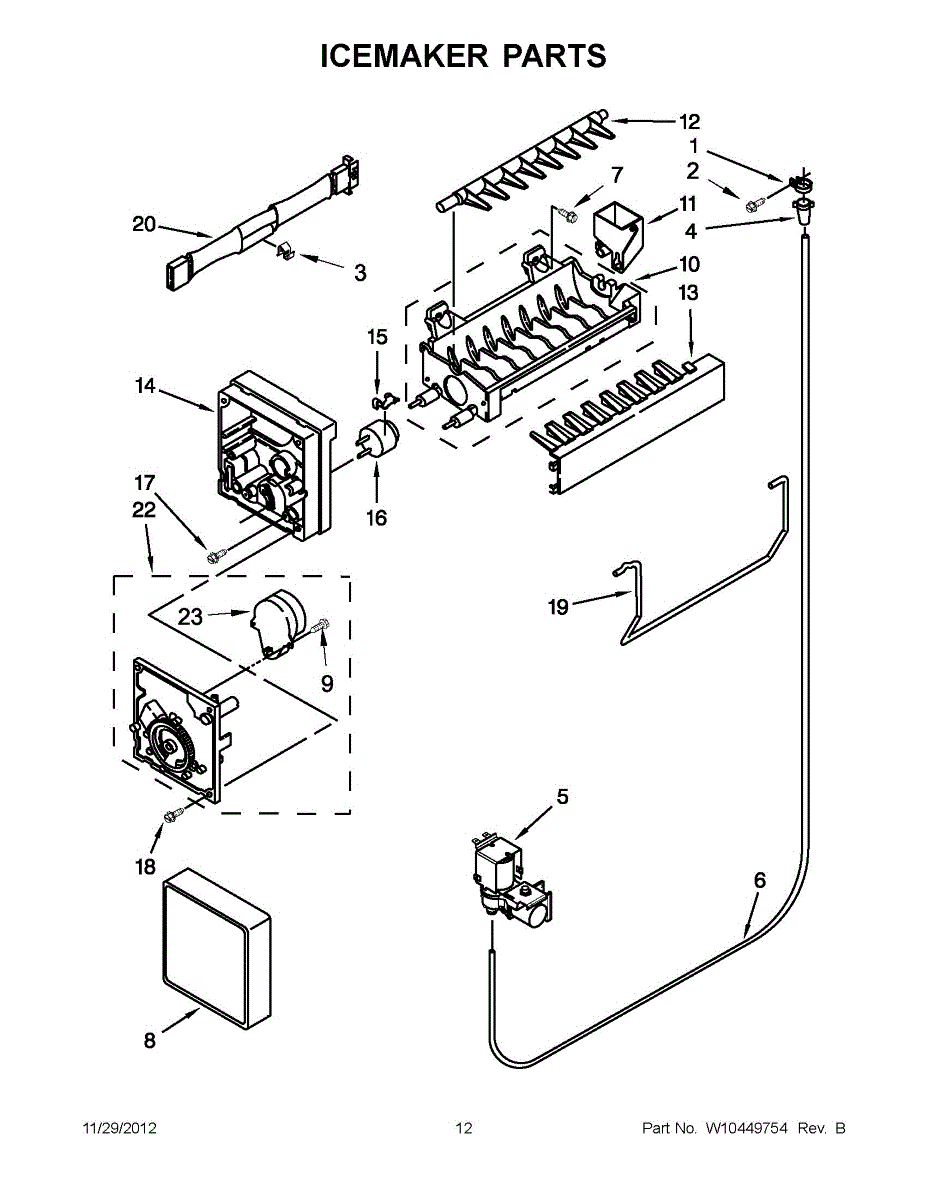

Parts for Maytag MFF2055YEB00: 06 - Icemaker Parts

This hose clamp secures a rubber or plastic hose to its fitting on your appliance, maintaining a tight, leak-resistant seal under vibration and pressure. Replace when the old clamp is rusted, bent, or no longer holds tension. What it does:

• Clamps around a hose to grip the fitting and seal the joint
• Helps prevent drips, leaks, and hose blow-off at the connection
• Restores secure clamping force when the original is worn or damaged
• Common symptoms: water at the connection, hose slipping off, visible corrosion or distortion

• 1 hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, seat hose fully on the fitting, then position clamp just behind the bead/raised lip
• Tighten or compress evenly with the appropriate tool; avoid overtightening that could damage the hose
• After reassembly, run a short test and inspect for leaks

Size: 8 x 1/2 ab.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

These inserts are for 1/4 inch plastic tubing. Package of 4.

The inlet valve is an OEM replacement part for Whirlpool refrigerators. Located where the water line attaches inside the fridge, it controls input flow into the ice maker and water dispenser components. A reliable inlet is necessary for these features.

Causes of a faulty inlet valve can range from water conditions like excess minerals collecting inside to wear from repeated valve openings.

Symptoms include:

• Ice maker or water dispenser not working properly
• Water leaks inside the fridge compartment
• Restricted flow not allowing full ice baskets or glass fills

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement water tube routes incoming water to the appliance's inlet assembly, restoring a sealed path for water flow and helping stop leaks or loss of water supply at the inlet. Install when tubing is cracked, split, or leaking. What it does:

• Replaces the damaged or cracked inlet tubing that delivers water to the appliance
• Restores a proper sealed connection to prevent water leaks at the inlet area
• Helps recover normal water supply when symptoms include visible leaks or reduced/absent water flow to the inlet
• Matches OEM routing and connection points for correct fit and function

• Recommended for users familiar with appliance water connections; shut off the water supply before starting
• Turn off power to the appliance and relieve any system pressure before disconnecting lines
• Inspect and replace any worn clamps or fittings; use proper-size connectors and tighten to avoid leaks

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cup fill spout directs the dispenser's water stream cleanly into a cup. If the spout is cracked, clogged, or warped, it can cause splashing or persistent drips—replacing it restores a steady, controlled flow.

• Funnels water from the dispenser outlet for a smooth, targeted stream
• Helps reduce splashing and water running down the door
• Can resolve drips after dispensing, erratic spray, or a damaged/missing spout
• Visible cracks, mineral buildup, or deformation are common failure signs

• Unplug the appliance and turn off the water supply
• Open the dispenser area and release the spout from its locking tabs or clips
• Seat the new spout fully; transfer any seals from the old part if applicable
• Restore water and power, then test for proper flow and leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ice maker shut-off arm is the wire bail that senses ice level in the bin. It lifts to stop production when full and lowers to restart cycles, helping prevent overfilling and restoring normal, automatic ice making.

• Senses bin ice level and mechanically signals the ice maker to run or stop
• Prevents overfilling by stopping ice production when the arm is raised
• Restores ice making when the arm is lowered after ice is used
• Replacing a bent, missing, or jammed arm can help with "won't stop making ice" or "won't make ice" issues

• Disconnect power before servicing; remove the ice bin for access
• Insert the arm's pivot ends fully into the ice maker head openings; ensure correct orientation
• The arm moves freely without binding, then restore power and lower the arm to resume ice production

This wire harness assembly connects the appliance's control components to power and sensors, restoring reliable electrical signaling and operation. Use it when damaged wiring or connector failures cause power or control faults. What it does:

• Routes electrical power and signals between the control board, user interface, and major components
• Replaces frayed, burned, or broken wiring that can cause intermittent or lost control functions
• Restores proper connector fit for secure electrical connections
• Helps resolve symptoms such as unresponsive controls, intermittent operation, or visible wire damage

• Disconnect power before servicing to avoid shock or injury
• Verify connectors match and seat fully; replace any damaged clips or fasteners
• Handle connectors by the plug bodies—avoid pulling on wires

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Kit is an OEM replacement part for Whirlpool refrigerators. It is a comprehensive kit that includes all the necessary components to replace or install a new icemaker in your refrigerator.

Causes of needing a new icemaker kit can include the existing icemaker malfunctioning, producing insufficient or irregular ice, or being damaged due to wear and tear.

Symptoms indicating it's time to replace the icemaker include:

• No ice production or irregular ice cube formation
• Water leaks or excessive condensation around the icemaker area
• Strange noises or grinding sounds during operation
• Error codes or warning lights related to the icemaker

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models. Note: This kit no longer comes with the "shut-off" arms. Order by model if needed.
