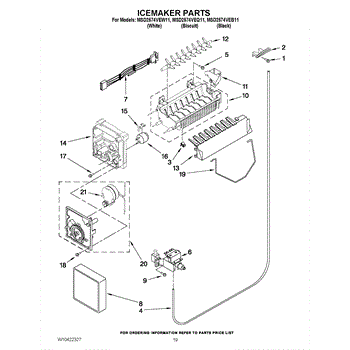

Parts for Maytag MSD2574VEW11: 12 - Icemaker Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This chute channels water and wash additives from the dispenser housing into the tub. Replacing a damaged or clogged chute helps ensure proper dispensing and reduces leaks or residue around the dispenser area. What it does:

• Guides detergent/bleach/fabric softener from the dispenser to the wash tub
• Maintains proper flow to prevent backups at the dispenser drawer
• Helps reduce leaks and drips from the dispenser area
• Common failure symptoms include water backing up into the drawer, detergent residue left in the dispenser, or leaks at the front-left/top of the washer

• 1 chute

• Disconnect power and turn off water supply before servicing
• Access is typically from the top; remove panels as needed to reach the dispenser assembly
• Transfer any seals, clamps, or hardware from the old chute
• Reassemble and run a brief fill/rinse to check for proper flow and leaks

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Fix water leaking from your refrigerator or ice buildup in the freezer. This water inlet valve controls flow to your ice maker and dispenser. DIY repair.

Connects ice maker to freezer wiring. Replace if wires are pinched, damaged, or connector is broken. Installs between ice maker and freezer cavity wall.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Freezer not cold enough or stuck in defrost mode? This defrost thermostat regulates defrost cycles to prevent ice buildup and maintain proper cooling.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Ice maker won't stop making ice? The shut off arm senses when the bin is full and stops production. Easy 10-minute DIY fix—just snap into place.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

The Ice Maker is an OEM part for Whirlpool refrigerators. Designed to efficiently produce ice, this ice maker ensures your refrigerator dispenses fresh and clear ice cubes whenever you need them. It integrates seamlessly into compatible models, maintaining the integrity and performance of your appliance. Note: The original bracket that covered bottom of the icemaker is NLA.  The new bracket is part number W11500948.

Signs that it's time to replace your ice maker include a noticeable decrease in ice production, ice cubes that are smaller or misshaped, and unusual noises during the ice-making process. These issues can arise from a variety of causes such as a malfunctioning water inlet valve, a clogged filter, or even temperature inconsistencies within the freezer compartment.

Symptoms of a bad Ice Maker include:

• Inability to produce ice
• Producing ice at a slower rate than usual
• Ice cubes are not ejected from the mold
• Water leaks in the freezer compartment

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
