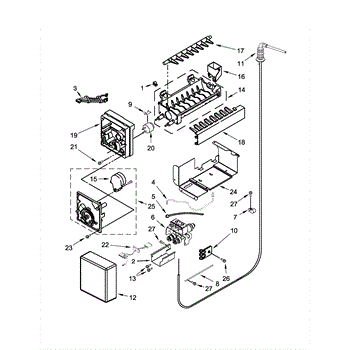

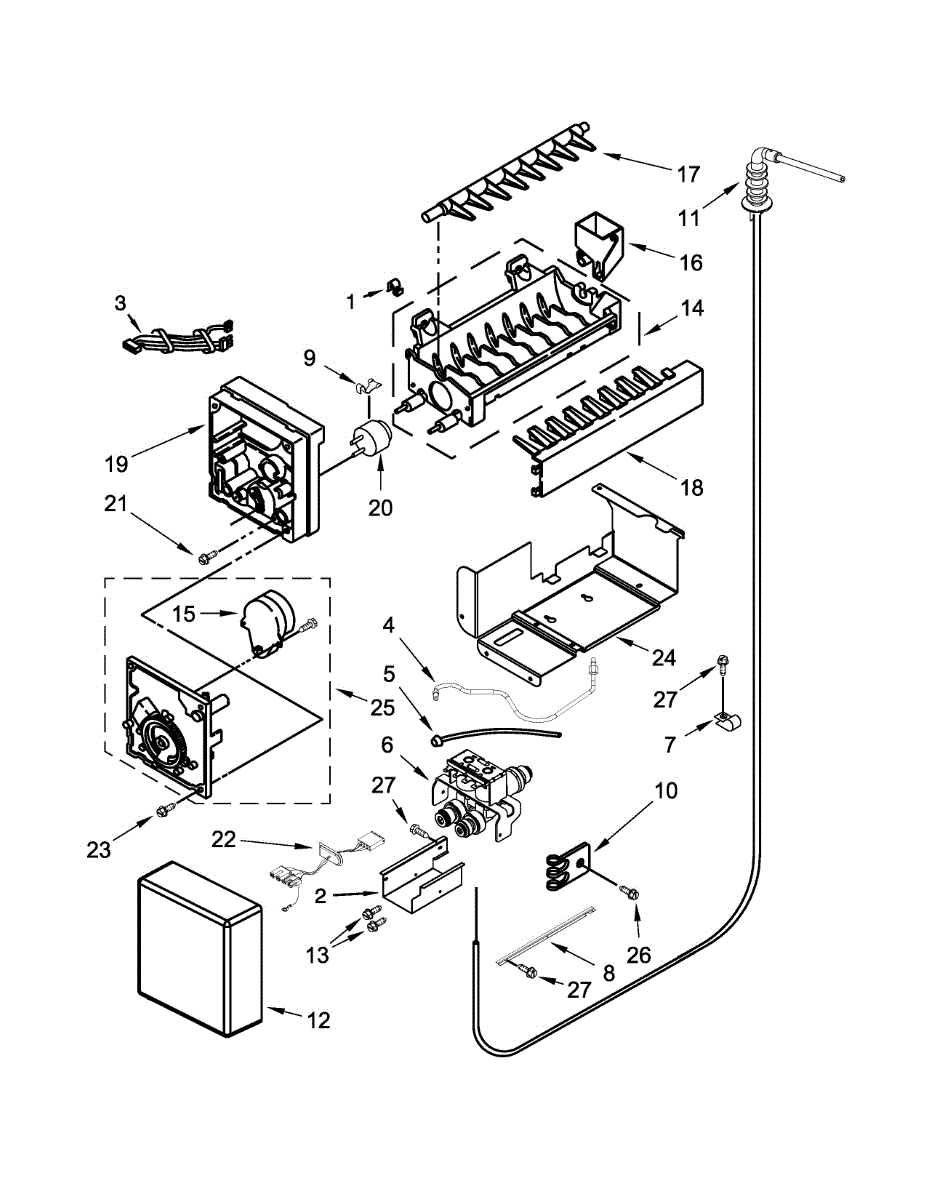

Parts for Jenn-Air JS48PPDUDE00: Icemaker Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This inlet fitting connects the household water supply to the appliance's waterline, providing a secure, leak-resistant connection for ice makers and water dispensers. Use it to replace damaged or leaking supply fittings and restore proper water flow. What it does:

• Provides a sealed connection between the home's water supply and the appliance waterline
• Replaces cracked, corroded, or leaking inlet fittings that cause drips or loss of water supply
• Helps restore proper water flow to ice makers and dispensers when the original connector fails
• Compatible with standard waterline tubing used on many Whirlpool refrigeration applications

• Turn off the household water supply and unplug the appliance before beginning any work
• Inspect tubing for damage and replace the waterline if brittle or kinked to ensure a reliable seal
• Use appropriate thread sealant or ferrules per the original installation type; hand-tighten then secure per manufacturer guidance

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water inlet valve regulates the flow of water into your appliance during operation. Replacing a sticking or leaking valve restores reliable filling performance and helps prevent slow fills, no fills, or unwanted dripping when the unit is off.

• Opens and closes to supply water when energized by the control
• Common symptoms include no fill, slow/low fill, or water seeping into the unit when idle
• May cause leaks from the valve body or a loud humming with little/no water flow
• Mineral buildup or a failed coil can restrict flow or prevent the valve from opening/closing

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water and relieve line pressure at the hose
• Note wire and line locations; transfer any brackets or fittings from the old valve as needed
• Restore water and power, check for leaks at all connections, and run a test fill

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

The Tube-Inlet is an OEM part for Whirlpool refrigerators. It is the component that connects the water supply lines allowing water to flow into the refrigerator's ice maker and water dispenser. The tube inlet is designed to securely attach to the back of the fridge and easily connect to supply hoses through compression nuts and fittings.

Causes of a bad tube-inlet include mineral or sediment buildup within the tubing restricting flow, cracks or leaks from wear and tear over time, or loose or damaged fittings. With normal use, water pressure and temperature fluctuations can cause small issues to develop.

Symptoms of a bad tube-inlet are:

• Slow or incomplete filling of the ice maker or water dispenser
• Water leaks from connection points
• Loose fittings or burst tubing

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket secures internal parts to the appliance frame to maintain alignment and reduce movement. It's a direct-fit replacement that restores proper support for the attached assembly and helps stop rattling or shifting. What it does:

• Provides a secure attachment point for internal components to the appliance frame
• Restores correct alignment to reduce vibration and noise during operation
• Prevents mounted parts from shifting or coming loose over time
• Helps maintain safe, stable operation of the affected assembly

• Disconnect power (and water for washer/dishwasher) before starting any repair
• Use basic hand tools to remove fasteners; keep track of screws and clips
• Handle edges carefully—metal brackets can be sharp
• Refer to OEM instructions for exact location and torque specs

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Made by Whirlpool. This kit includes 15 feet of copper tubing, saddle valve, teflon tape, and tubing connector. Use this kit to connect your refrigerator ice maker to water supply (usually your water shut off valve under the kitchen sink).
