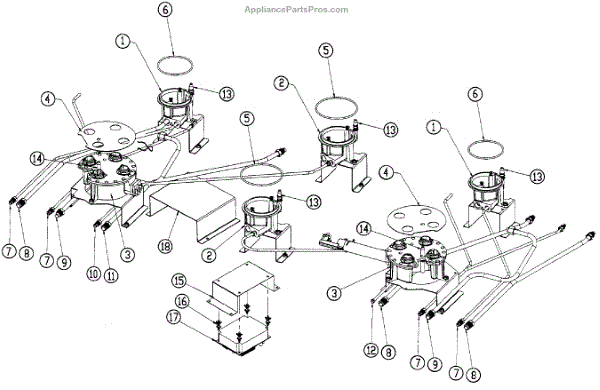

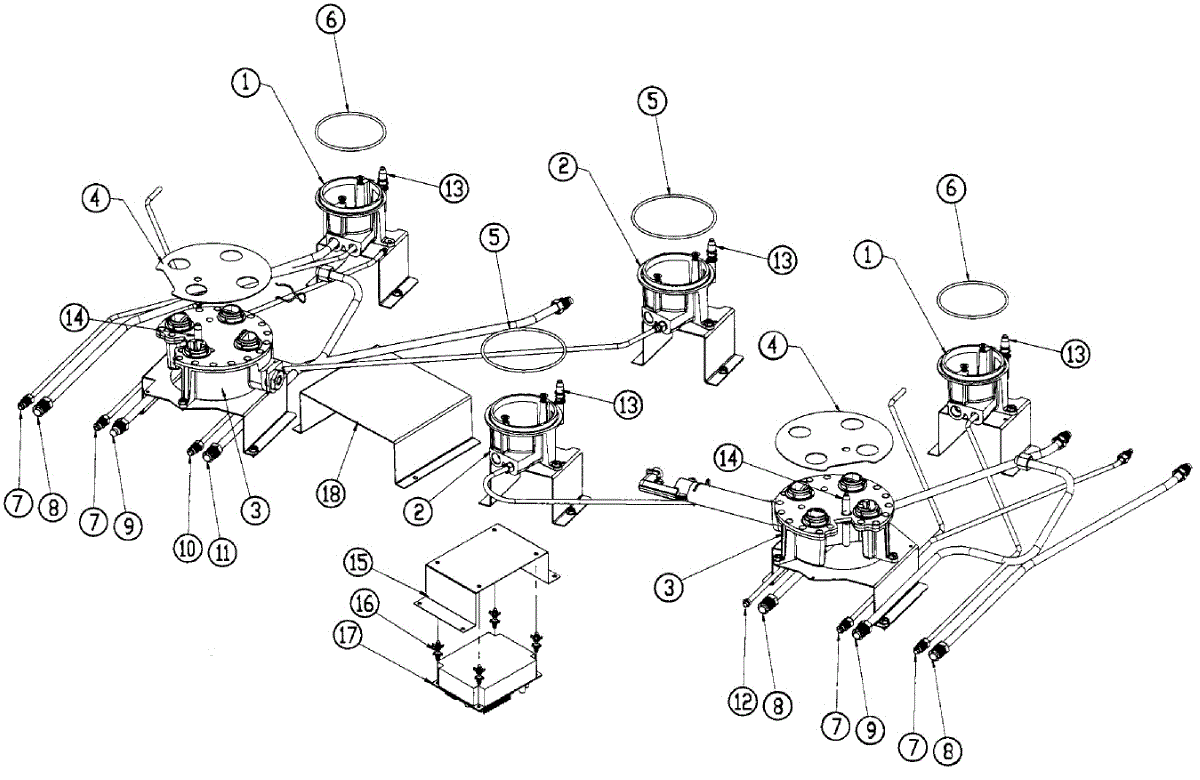

Parts for Dacor ER48DSCHLPH: Igniter Assembly Parts

Seals the dual burner assembly to the cooktop surface, preventing spills and ensuring proper support. Replace when worn to restore a snug fit and reliable burner operation. Verify fit with your model number.

Rubber O-ring that seals the surface burner assembly to prevent gas and air leaks. Replace if you notice gas odor, poor ignition, or uneven flames. Confirm fit with your model number.

Nylon support bracket that secures the PCB control board in your dishwasher. Replace if cracked, broken, or missing to properly mount the circuit board.

Controls and protects LED lighting and display circuitry. Replace if LEDs flicker, dim, or fail completely. Verify fit with your model number.

This service shield LED isolator is a small module that controls and protects LED indicators on the appliance's control panel, making diagnostics and LED replacement easier for service techs. What it does

• Routes and isolates LED power and signals so indicator lights operate correctly
• Prevents backfeed and protects the main control board from LED-related faults
• Commonly replaced when LEDs are unlit, flickering, or display/indicator behavior is erratic
• Used during panel repairs and service diagnostics to restore proper LED function

• One service shield LED isolator module (single unit)

• Always disconnect power at the breaker or unplug the appliance before servicing
• Handle the module by edges and avoid touching contacts; observe basic ESD precautions
• Verify connector orientation and seating; do not force connectors onto pins
