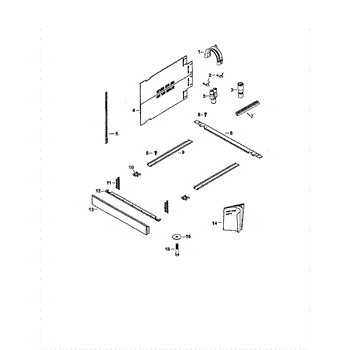

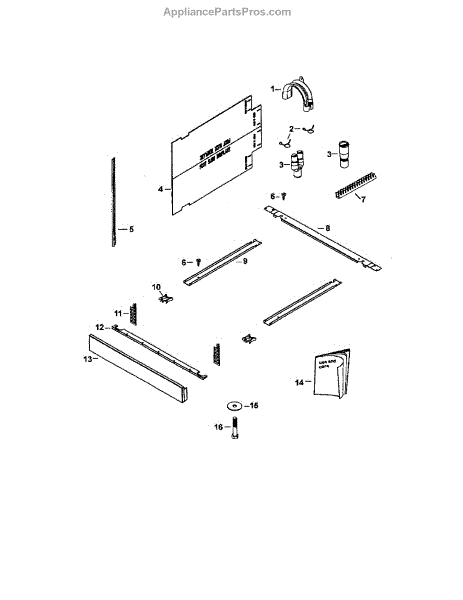

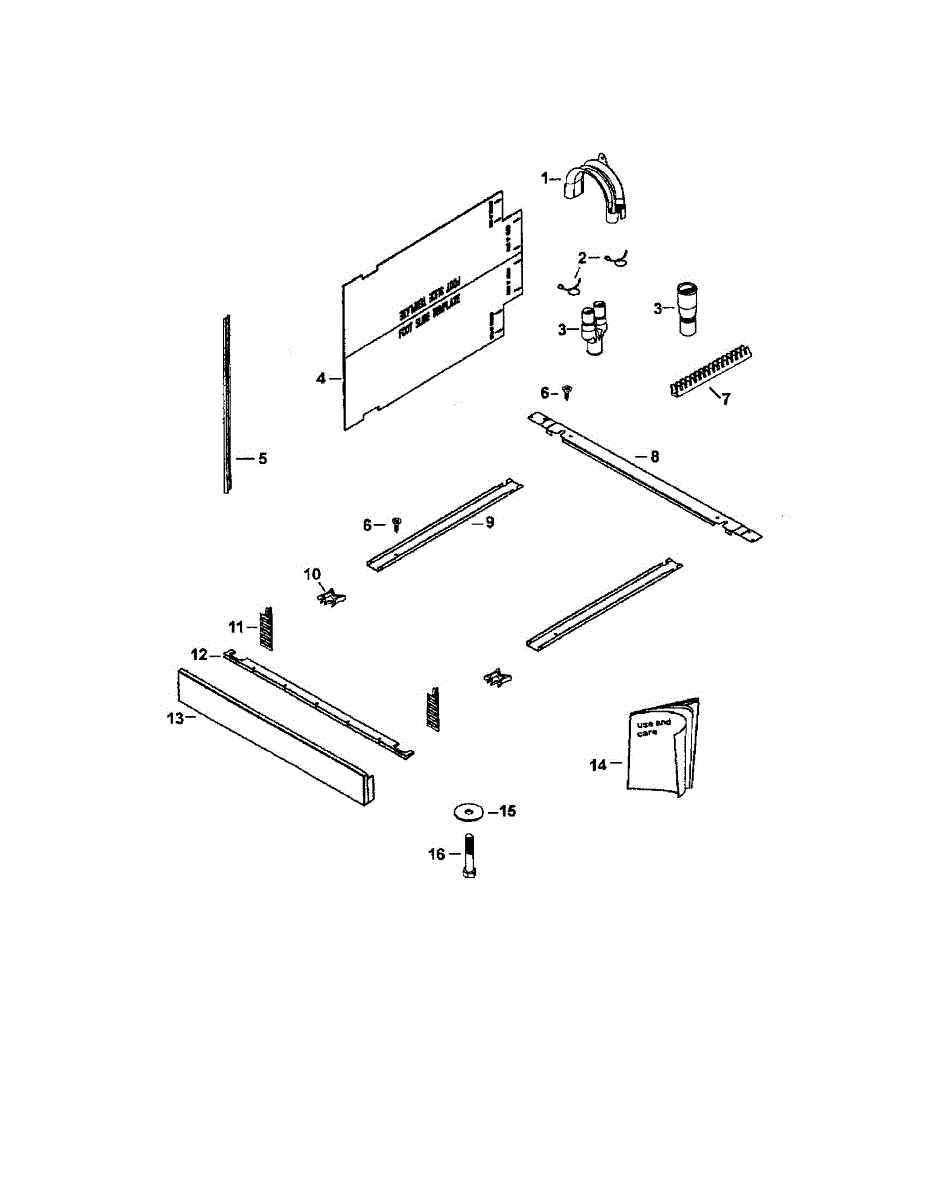

Parts for DD602: Installation Components Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Secures and positions your dishwasher drain hose to prevent kinks and improper routing. Replace if clip is cracked, broken, or missing for stable hose support.

Wire clip secures the drain hose connection in your dishwasher. Replace if the original clip is broken, missing, or no longer holds the hose firmly in place.

This replacement joiner drain hose connects dishwasher drain lines to the home drain or disposer, restoring proper wastewater flow and helping prevent leaks caused by brittle or damaged tubing. Simple, direct replacement for the original joiner hose. What it does:

• Links the appliance drain outlet to a house drain or garbage disposer to route wastewater away.
• Replaces cracked, split or collapsed joiner tubing that can cause leaks or poor drainage.
• Helps stop symptoms such as water pooling beneath the appliance, slow draining, or visible leaking at the hose connection.
• Designed to match OEM routing and connection points for a like-for-like drain path.

• Disconnect power and water supply before servicing.
• Remove existing clamps and fittings, then slide hose into place and secure with appropriate clamps; do not reuse corroded clamps.
• Ensure hose routing avoids kinks, sharp bends, and contact with hot engine parts; maintain proper high-loop or air-gap per local code.
• Run a short test cycle and check for leaks at both connections before returning the appliance to service.

Joins two dishwasher drain hoses or connects drain outlet to household drain. Replace if leaking, cracked, or causing drainage issues. Verify fit with your model number.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Extends dishwasher drain hose by 11' 10". Replace missing or damaged extension kit to complete drain system installation or repair.

Wire clip secures the drain hose connection in your dishwasher. Replace if the original clip is broken, missing, or no longer holds the hose firmly in place.

Connects two sections of dishwasher drain tubing to restore a continuous path. Replace if cracked, broken, or leaking at the connection point.

This black end plate assembly replaces a damaged or worn side/end trim piece to restore a clean appearance and help protect internal components from debris and contact. It fits where a finished trim or cover is required on the appliance. What it does:

• Covers and protects exposed edges and internal components at the appliance end or side
• Restores a finished cosmetic appearance after damage or wear
• Helps keep wiring and internal parts from snagging or accumulating debris
• Can reduce rattling associated with a loose or broken end trim

• One black end plate assembly

• Disconnect power (and water, if applicable) before servicing the appliance
• Installation typically requires removing panels and a few fasteners; keep hardware for reuse
• Handle edges carefully to avoid cuts and to protect painted finish
• Verify part fit and orientation before final fastening

Small mounting tab that secures trim, panels, or shelving edges in your dishwasher. Replace if broken, missing, or cracked to restore stable attachment.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
