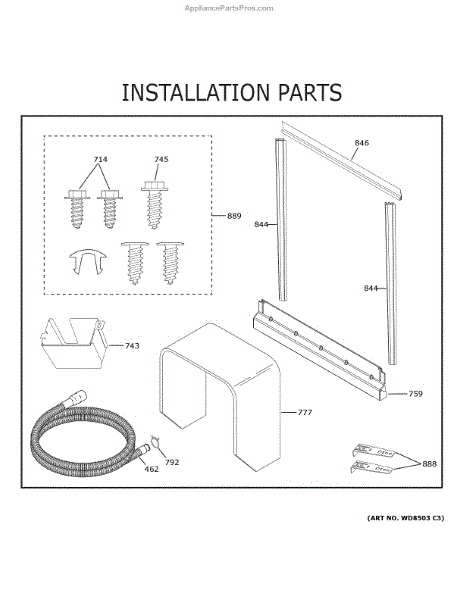

Parts for Ge CDT800P2N5S1: Installation Parsts Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Tube is an OEM part for GE dishwashers. This tube is responsible for carrying wastewater from the dishwasher to the household drain, ensuring efficient and effective removal of dirty water during and after the wash cycle. The drain tube helps maintain the dishwasher's performance by preventing water from pooling inside the appliance.

Over time, drain tubes can become clogged, cracked, or worn out due to regular use or debris buildup. Common causes of a bad drain tube include blockages from food particles, mineral deposits, wear and tear from frequent use, or damage from improper installation or handling.

Symptoms of a bad drain tube include:

• Water not draining from the dishwasher
• Leaks around the dishwasher area
• Unpleasant odors due to standing water
• Visible cracks, splits, or kinks in the tube

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Tub Insulation Blanket is an OEM part for GE dishwashers. This insulation blanket wraps around the dishwasher tub, helping to reduce noise during operation and improve energy efficiency by maintaining consistent temperatures inside the dishwasher.

Causes of a bad insulation blanket can include wear and tear over time, exposure to moisture, or damage from pests or improper installation.

Symptoms of a bad tub insulation blanket include:

• Increased noise levels during the dishwasher cycle
• Higher energy consumption or longer cycle times
• Visible damage or deterioration of the insulation material
• Excessive heat escaping from the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Restore a clean, finished look at your dishwasher's tub opening with this tub trims kit. Replacing worn or missing side trims helps the door open and close smoothly and prevents snagging or rubbing along the tub edges.

• Finishes and protects the left and right edges of the tub opening
• Helps guide the door and maintain proper clearance
• Replace if trims are cracked, warped, missing, loose, or discolored
• Common signs include visible gaps, trim falling off, or door scraping/binding

• Disconnect power and turn off the water supply before servicing
• Open the door, remove old trims, and clean the mounting surfaces
• Align each new trim to the correct side and press/seat fully for a secure fit
• Open and close the door to confirm smooth operation and proper clearance

Restore a clean, finished look at your dishwasher's tub opening with this tub trims kit. Replacing worn or missing side trims helps the door open and close smoothly and prevents snagging or rubbing along the tub edges.

• Finishes and protects the left and right edges of the tub opening
• Helps guide the door and maintain proper clearance
• Replace if trims are cracked, warped, missing, loose, or discolored
• Common signs include visible gaps, trim falling off, or door scraping/binding

• Disconnect power and turn off the water supply before servicing
• Open the door, remove old trims, and clean the mounting surfaces
• Align each new trim to the correct side and press/seat fully for a secure fit
• Open and close the door to confirm smooth operation and proper clearance

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

This kit contains the screws and matching plug buttons used to secure and finish a countertop installation, restoring a clean, secure fit and covering screw heads for a finished look. What it does:

• Provides the correct screws to fasten the countertop to the cabinet or appliance frame
• Includes plug buttons to conceal screw heads for a neat appearance
• Helps stop loose or rattling countertops by replacing worn or missing fasteners
• Matches OEM fit and fastening locations when original parts are missing or damaged

• Use proper driver bits to avoid stripping screw heads; hand-start screws to ensure correct alignment
• Keep plastic plug buttons away from heat sources during installation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
