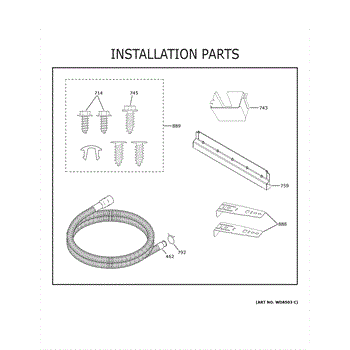

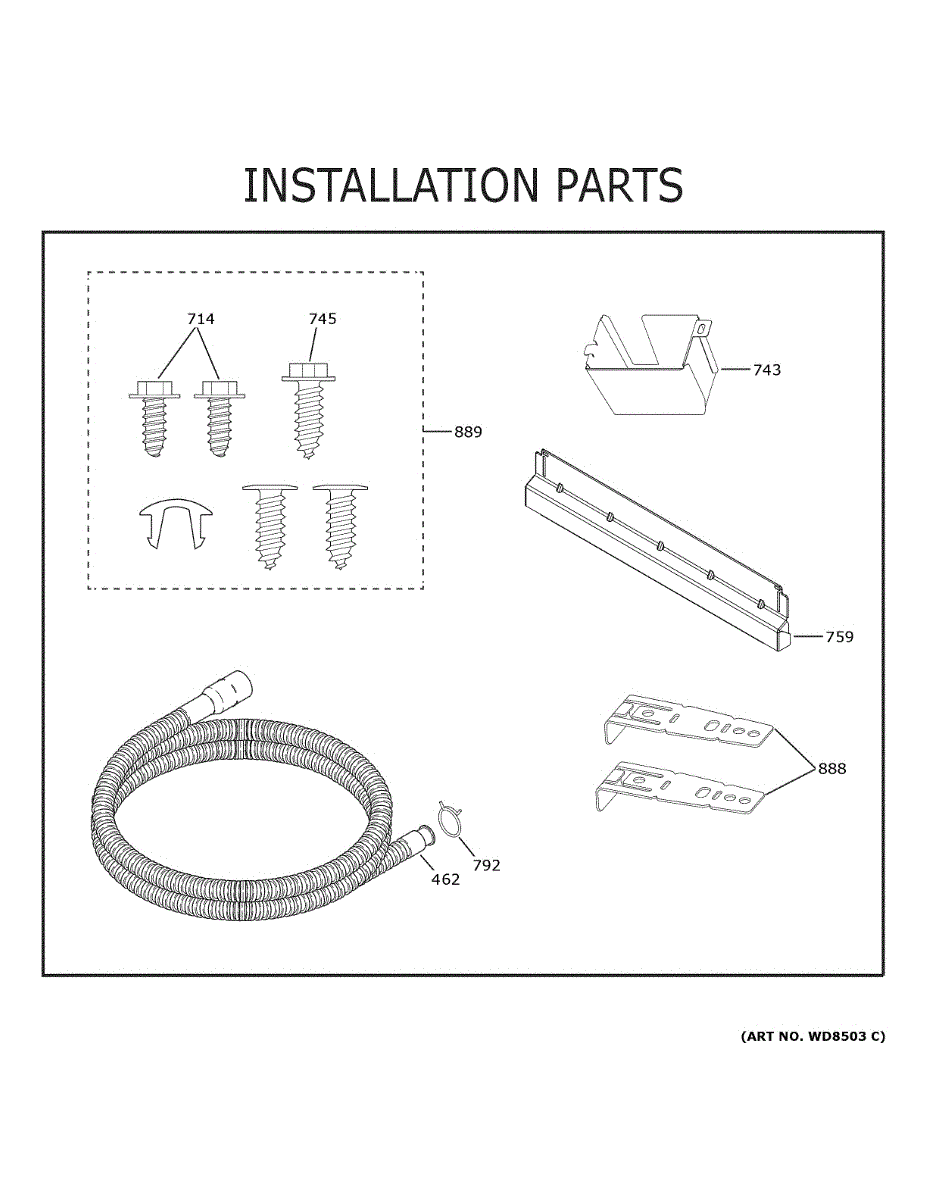

Parts for Ge GDF511PGM4BB: Installation Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Drain Tube is an OEM part for GE dishwashers. This tube is responsible for carrying wastewater from the dishwasher to the household drain, ensuring efficient and effective removal of dirty water during and after the wash cycle. The drain tube helps maintain the dishwasher's performance by preventing water from pooling inside the appliance.

Over time, drain tubes can become clogged, cracked, or worn out due to regular use or debris buildup. Common causes of a bad drain tube include blockages from food particles, mineral deposits, wear and tear from frequent use, or damage from improper installation or handling.

Symptoms of a bad drain tube include:

• Water not draining from the dishwasher
• Leaks around the dishwasher area
• Unpleasant odors due to standing water
• Visible cracks, splits, or kinks in the tube

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

The Countertop Screw & Buttonplug is an OEM part for GE dishwashers. This assembly includes screws and button plugs designed to securely fasten the dishwasher to the underside of kitchen countertops.

Causes of a bad Countertop Screw & Buttonplug can include stripped threads from over-tightening, corrosion due to exposure to moisture, or general wear and tear that diminishes the screws' and plugs' ability to maintain a secure hold.

Symptoms of a bad Countertop Screw & Buttonplug include:

• Dishwasher tilting forward when the door is opened
• Visible gaps between the dishwasher and countertop
• Loose feeling or movement of the dishwasher when pushed
• Screws failing to hold or remain in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
