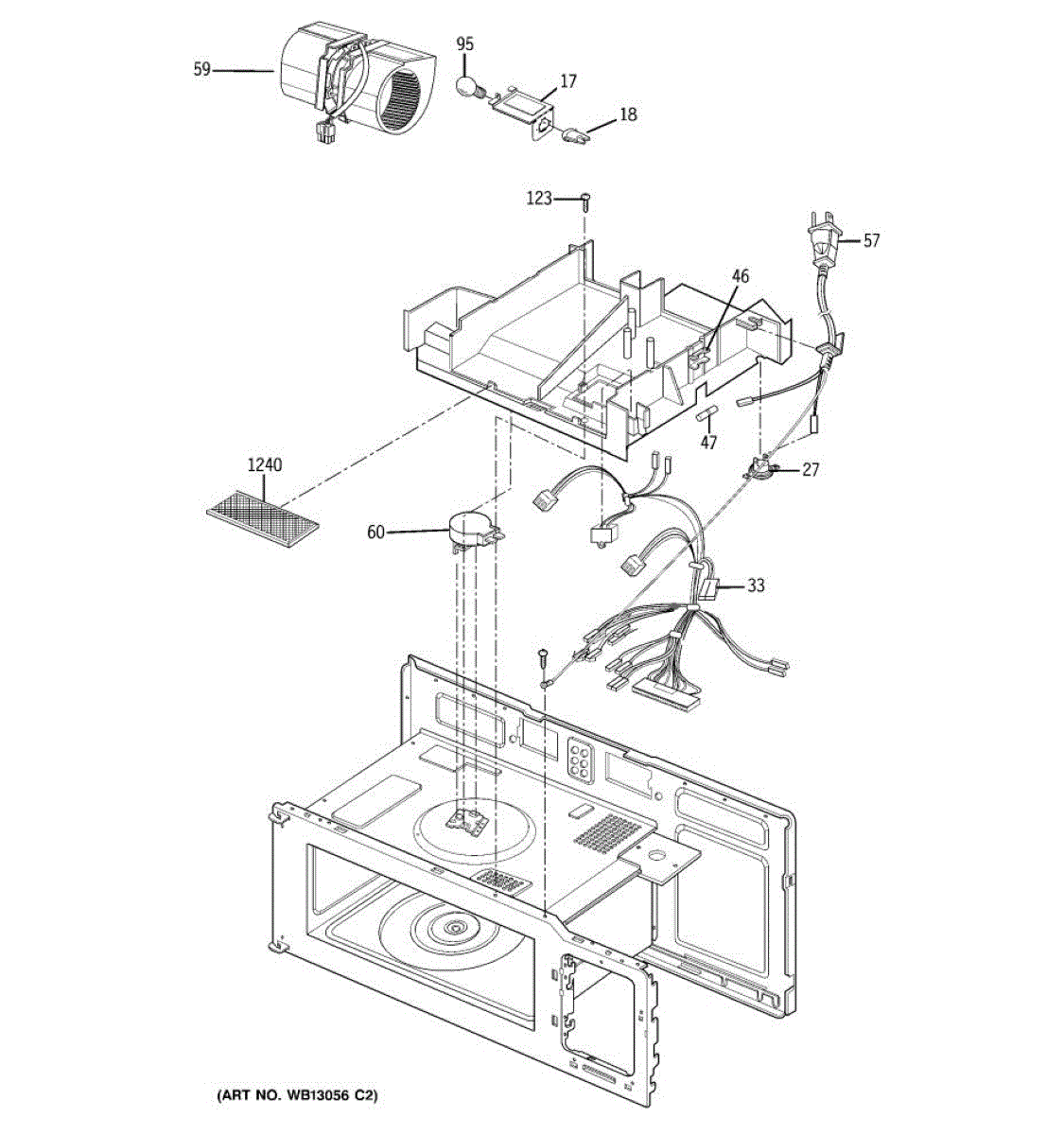

Parts for Ge JVM1533BD05: 06 - Interior Parts (2) Parts

This cover lamp is the replacement light lens that protects and diffuses the interior bulb, restoring even lighting and shielding the lamp from food and debris. A simple cosmetic and functional replacement for cracked or missing lenses. What it does:

• Protects the interior light bulb from spills, dust and accidental contact
• Diffuses and softens light for more even illumination inside the compartment
• Replaces cracked, yellowed or missing lamp covers that allow bright hotspots or expose the bulb
• Helps prevent direct bulb contact that can shorten bulb life or cause debris buildup

• One cover lamp / light lens

• Disconnect power before servicing to avoid electric shock
• Remove the old cover by releasing clips or removing retaining screws; handle bulbs only when cool
• Snap or secure the replacement lens into place and verify it seats evenly without flexing
• Check the bulb and socket before assuming a lens issue

This thermostat regulates oven temperature to help maintain consistent cooking results and prevent under- or over-heating. It replaces a failed temperature control component to restore accurate oven cycles. What it does:

• Senses oven temperature and signals the control to cycle the heating element or burner
• Helps correct symptoms like oven not reaching set temperature or running too hot/too cold
• Works with the oven's control system to maintain stable cooking temperatures
• Functions as the temperature-sensing switch for bake/oven operation

• Disconnect power to the appliance before servicing to avoid shock or injury
• Handle the thermostat and sensing bulb carefully; avoid kinking or damaging the capillary tube if present
• Mount and secure per the OEM layout; confirm correct orientation and probe placement for accurate sensing

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lamp drawing is the appliance lighting assembly that provides interior illumination for safe visibility and operation. It restores proper lighting so you can check contents and settings without opening the appliance in the dark. What it does

• Houses and positions the interior lamp to produce even light where needed.
• Connects to the appliance wiring to deliver power to the lamp.
• Commonly replaces assemblies that are cracked, broken, loose, or no longer illuminating.
• Resolve symptoms such as dim, flickering, or non-working interior lights.

• One lamp drawing lighting assembly.

• Always disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle lamp sockets and wiring gently to avoid damage; replace bulbs per manufacturer specifications.
• Verify fit and connector type before installation.

This is a truss-head self-tapping screw used to secure appliance panels and trim. It replaces a lost or damaged mounting screw to restore proper fit and stop rattles or loose parts. What it does

• Secures trim, panels, brackets or small components where a low-profile, wide-head screw is required
• Self-tapping design cuts threads into sheet metal or similar substrates—no nut required
• Restores tight mounting to reduce vibration, rattling or misaligned panels
• Commonly used in refrigerators, ranges and other household appliances

• One truss-head self-tapping screw

• Disconnect power to the appliance before servicing and work on a cool appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten—turn until snug and the part is secure but not distorted
• Replace with the exact part number to ensure fit and function

This charcoal filter captures odors and fine particles from the air as it recirculates through the microwave, helping keep your kitchen fresher and reducing buildup inside the unit.

• Adsorbs cooking odors when the microwave is set up for recirculating operation
• Helps maintain airflow by trapping grease and fine particulates
• Replace when saturated or damaged; common signs include lingering odors, reduced capture of smoke/steam, or a visibly dirty filter
• Regular replacement supports effective ventilation and protects internal components

• Disconnect power before servicing
• Access panel/grease filter removal may be required to reach the charcoal filter
• Note airflow orientation and seat the new filter securely
• Do not wash; replace at recommended intervals for best performance
