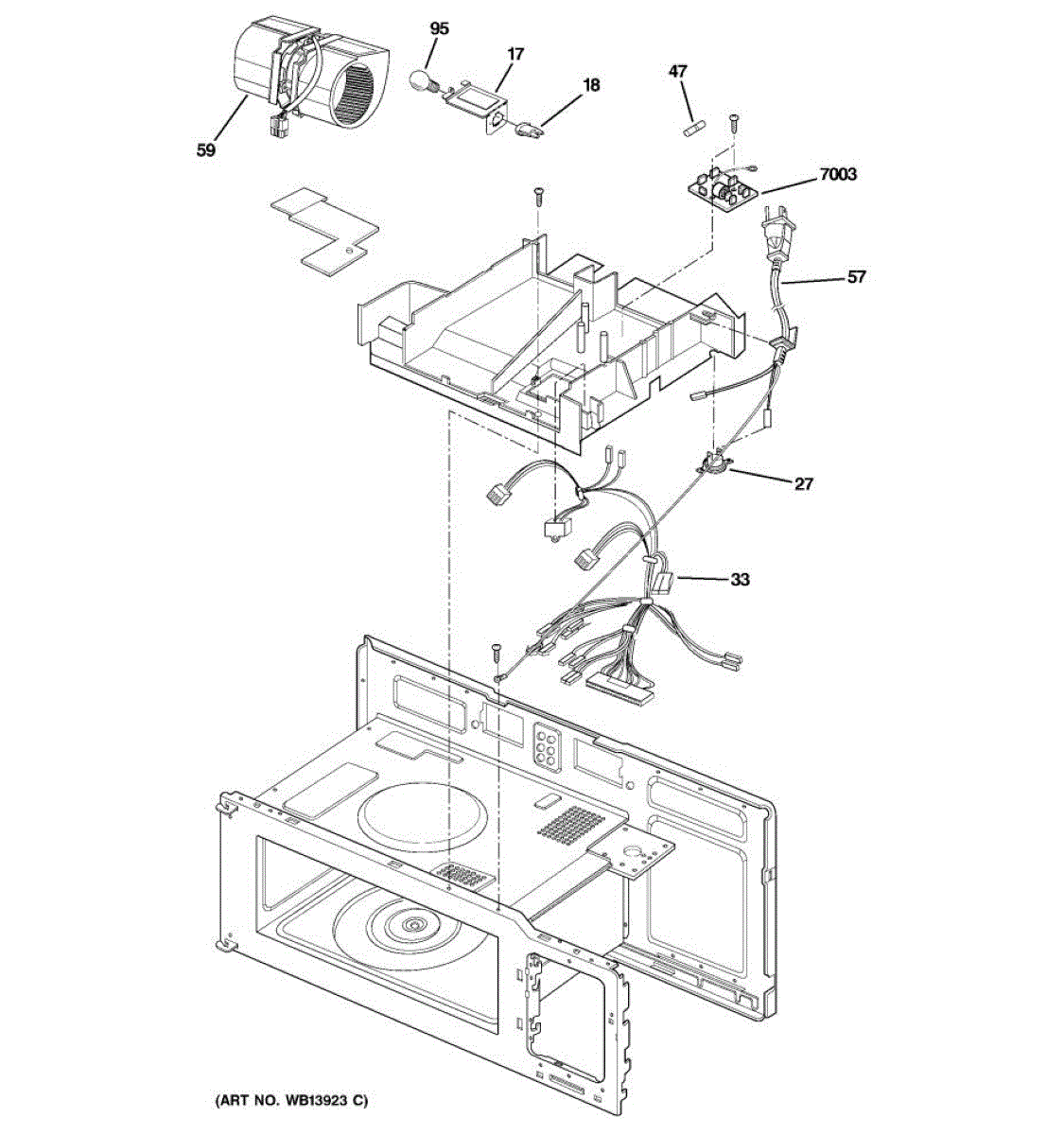

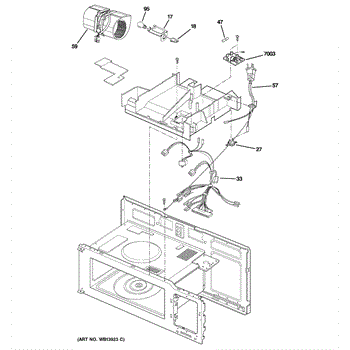

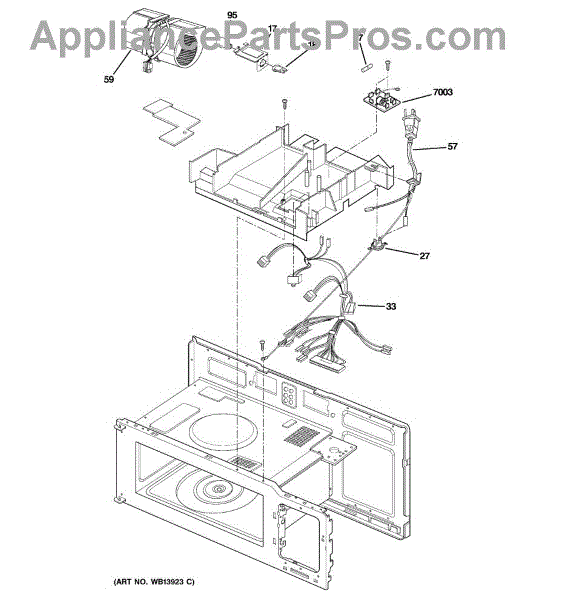

Parts for Ge JVM1540LM6CS: 06 - Interior Parts (2) Parts

This cover lamp is the replacement light lens that protects and diffuses the interior bulb, restoring even lighting and shielding the lamp from food and debris. A simple cosmetic and functional replacement for cracked or missing lenses. What it does:

• Protects the interior light bulb from spills, dust and accidental contact
• Diffuses and softens light for more even illumination inside the compartment
• Replaces cracked, yellowed or missing lamp covers that allow bright hotspots or expose the bulb
• Helps prevent direct bulb contact that can shorten bulb life or cause debris buildup

• One cover lamp / light lens

• Disconnect power before servicing to avoid electric shock
• Remove the old cover by releasing clips or removing retaining screws; handle bulbs only when cool
• Snap or secure the replacement lens into place and verify it seats evenly without flexing
• Check the bulb and socket before assuming a lens issue

This thermal fuse is a single-use overheat cutoff that interrupts power when temperatures exceed safe limits, helping protect the appliance from overheating and preventing further component damage. What it does:

• Opens the electrical circuit when excessive heat is detected to stop operation and reduce fire risk
• Commonly used in heating and cooling appliance circuits where temperature protection is required
• Helps isolate failed heating components by cutting power if a thermostat or heater malfunctions
• Serves as a safety device — once tripped it must be replaced to restore normal operation

• One thermal fuse

• Disconnect power to the appliance before attempting any service
• Replace only with the exact part number shown; do not bypass or jumper the fuse
• Install in the same orientation and mounting location as the original
• If the new fuse trips immediately, stop and diagnose the appliance to find the underlying fault

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lamp drawing is the appliance lighting assembly that provides interior illumination for safe visibility and operation. It restores proper lighting so you can check contents and settings without opening the appliance in the dark. What it does

• Houses and positions the interior lamp to produce even light where needed.
• Connects to the appliance wiring to deliver power to the lamp.
• Commonly replaces assemblies that are cracked, broken, loose, or no longer illuminating.
• Resolve symptoms such as dim, flickering, or non-working interior lights.

• One lamp drawing lighting assembly.

• Always disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle lamp sockets and wiring gently to avoid damage; replace bulbs per manufacturer specifications.
• Verify fit and connector type before installation.

The Lamp is an OEM replacement part for GE microwave ovens. It plays an essential role in enhancing visibility within the microwave, facilitating users to keep an eye on their food without opening the door. This high-quality bulb is engineered to withstand the heat and vibration commonly associated with microwave use, ensuring longevity and reliability.

Causes of a malfunctioning Lamp can include filament wear over time, which is a common issue with incandescent bulbs, or damage from microwave vibrations or power surges. Regular usage can naturally lead to the lamp's eventual dimming or failure, necessitating its replacement to maintain optimal microwave functionality.

Symptoms of a bad Lamp include:

• No illumination inside the microwave when in use
• Flickering or intermittent light operation
• A sudden pop or crack sound indicating the bulb has burnt out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This noise filter helps reduce electrical interference on the appliance power line, protecting control electronics and improving operational stability. Replacing a faulty filter can reduce intermittent controls, audible buzzing, or interference with nearby electronics. What it does:

• Suppresses electrical noise on the incoming power line to help protect control boards and communications modules.
• Helps prevent symptoms such as intermittent operation, unexplained control resets, audible humming/buzzing, or radio/TV interference near the appliance.
• Installs in the appliance power circuit to filter line noise and reduce stray interference that can affect sensitive electronics.

• Always disconnect power to the appliance before servicing to avoid electric shock.
• Ensure secure wiring and a proper ground connection when installing the replacement filter.
• Handle the part carefully and avoid touching electronic contacts.
• Follow OEM instructions for placement and mounting.
