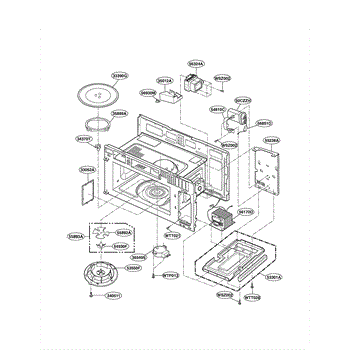

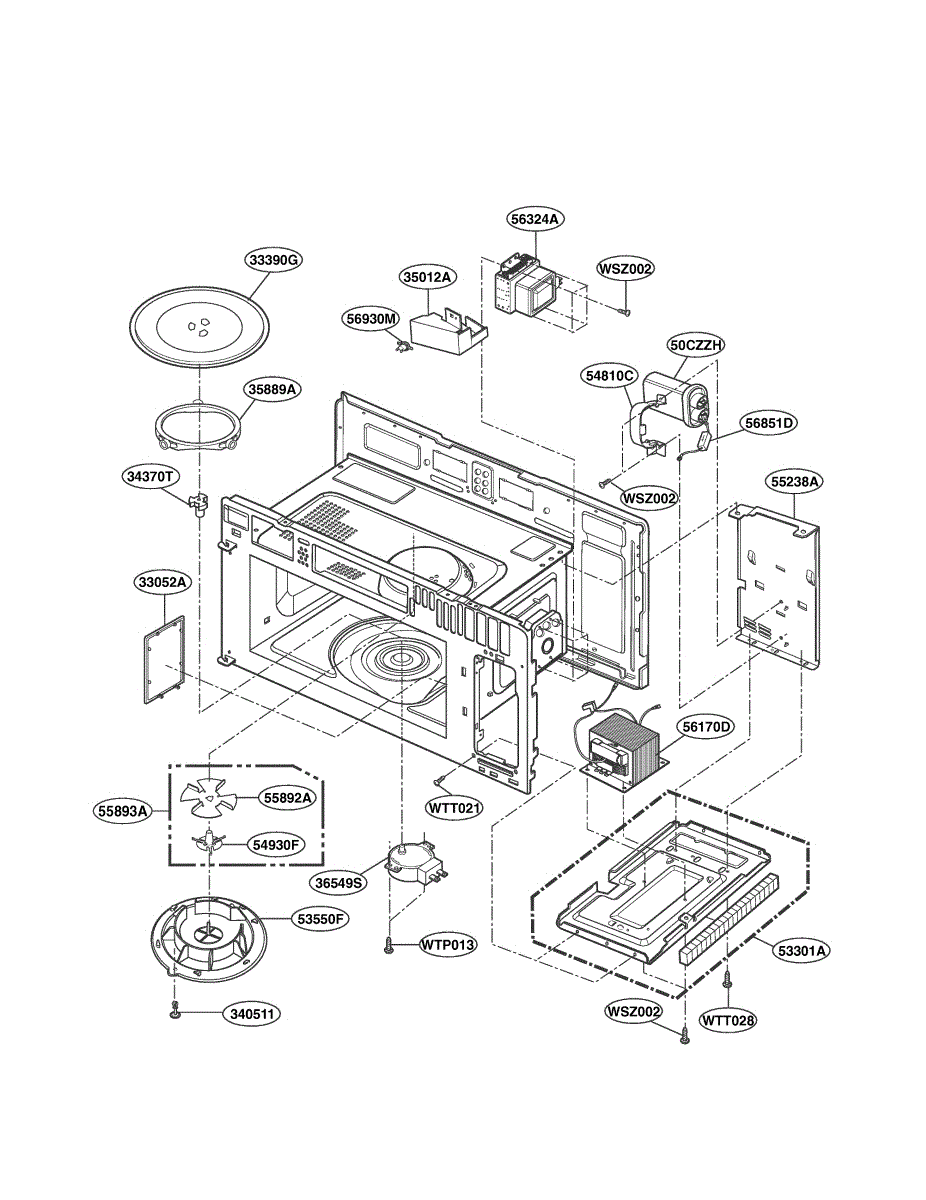

Parts for Lg LMV2083ST/00: Interior Fig 1 Parts

This is a truss-head tapping screw used to secure trim, panels, and small assemblies on compatible LG appliances. It provides a low-profile, wide-bearing head that helps hold parts flush and resist pull-through. What it does:

• Fastens plastic and sheet-metal components where a self-tapping thread is needed
• Truss head spreads load to prevent damage to soft or thin materials
• Helps secure control panels, brackets, or trim pieces that require a low-profile head
• Common replacement when original mounting screws are missing, stripped, or corroded

• One truss-head tapping screw

• Use the correct screwdriver bit and moderate torque to avoid stripping the screw or workpiece
• Start threading straight and let the screw form threads without forcing at an angle
• Disconnect power and follow appliance-specific service safety procedures before working internally
• Replace any damaged mating threads or clips for a secure fit

This is a truss-head tapping screw used to secure trim, panels, and small assemblies on compatible LG appliances. It provides a low-profile, wide-bearing head that helps hold parts flush and resist pull-through. What it does:

• Fastens plastic and sheet-metal components where a self-tapping thread is needed
• Truss head spreads load to prevent damage to soft or thin materials
• Helps secure control panels, brackets, or trim pieces that require a low-profile head
• Common replacement when original mounting screws are missing, stripped, or corroded

• One truss-head tapping screw

• Use the correct screwdriver bit and moderate torque to avoid stripping the screw or workpiece
• Start threading straight and let the screw form threads without forcing at an angle
• Disconnect power and follow appliance-specific service safety procedures before working internally
• Replace any damaged mating threads or clips for a secure fit

This truss head tapping screw secures panels, brackets, and covers in your appliance. Replacing a missing or damaged fastener restores a snug fit, reduces vibration, and helps keep components properly aligned for reliable performance.

• Provides low-profile holding power; wide truss head helps secure thin panels and trim
• Replaces lost, stripped, or corroded screws at the original mounting points
• Helps eliminate rattling, vibration, or loose handles/covers
• Addresses situations where a screw will not tighten or backs out during use

• Disconnect power; shut off water/gas if applicable before servicing
• Align parts and hand-start threads to avoid cross-threading
• Tighten until snug; do not overtighten to prevent stripping
• If the receiving hole is damaged, for repair before installing the new screw

The Magnetron is an OEM part for LG microwaves. It is responsible for generating the microwaves that cook or heat the food inside the appliance. The magnetron converts electrical energy into microwave radiation, ensuring efficient and even heating.

Causes of a bad magnetron can include prolonged use, electrical surges, or overheating. Over time, these factors can lead to the magnetron wearing out or failing completely.

Symptoms of a bad Magnetron include:

• The microwave not heating food
• Strange noises during operation
• Burning smell or smoke
• The microwave shutting off unexpectedly

This OEM LG part is also compatible with Sears/Kenmore models.

This turntable shaft (MH-8) connects the microwave's turntable motor to the glass tray hub so the tray spins for even heating. Replace it when the tray won't rotate, slips intermittently, or makes grinding/clicking noises.

• Couples the turntable motor to the tray hub to drive rotation
• Helps ensure even cooking and defrosting by keeping the tray moving
• Typical symptoms: tray not turning, intermittent/jerky rotation, grinding or clicking from the cavity floor
• Damage indicators: cracks, melted/rounded drive surfaces, or excessive wobble

• Disconnect power to the microwave at the plug or breaker before servicing
• Remove the glass tray and roller ring to access the shaft
• Lift the old shaft straight up; if stuck, access the turntable motor from below to push it out
• Align and press the new shaft fully onto the motor spindle; reassemble and test rotation

The Turntable Motor is an OEM replacement part for LG microwaves. Located under the microwave cavity, it rotates the special turntable platter during cooking operations.

Symptoms of a faulty turntable motor include:

• Turntable failing to spin or rotating unevenly during cooking
• Abnormal noises or vibrations coming from the bottom of the unit
• Uneven cooking results along microwave perimeter

Causes related to normal wear of internal motor workings through extended use. Damage from power surges is also possible over time.

This LG replacement part is compatible with some Kenmore models as well.

This turntable roller ring sits beneath the glass tray and provides a smooth rolling track so the tray rotates consistently during cooking. Replacing a worn or cracked ring restores steady rotation for even heating and quieter operation.

• Supports the glass turntable and allows it to roll around the center drive
• Helps maintain smooth, level rotation for uniform cooking results
• Wear or damage can cause the tray to stop turning, bind, wobble, or make grinding noises
• Visible cracks, flat spots, or missing/damaged rollers indicate the ring should be replaced

• Disconnect power to the microwave before servicing
• Open the door, remove the glass tray, and lift out the old ring; clean the track area
• Place the new ring in the track with rollers facing down; reinstall the tray on the coupler
• Run a brief test cycle to ensure smooth, stable rotation

The Diode is an OEM replacement part for LG countertop microwave models. Located internally on circuit boards regulating magnetron function, it precisely controls the electric current flow.

Causes of a bad diode involve thermal fatigue over time putting repetitive stress on sensitive semiconductor junctions. Microwave demands may accelerate failures.

Symptoms include:

• Intermittent cooking or complete failure to energize the tube
• Error codes appearing on the control panel display
• Buzzing or humming noises emitting from internal circuitry

This OEM LG part is also compatible with Sears/Kenmore microwaves.
