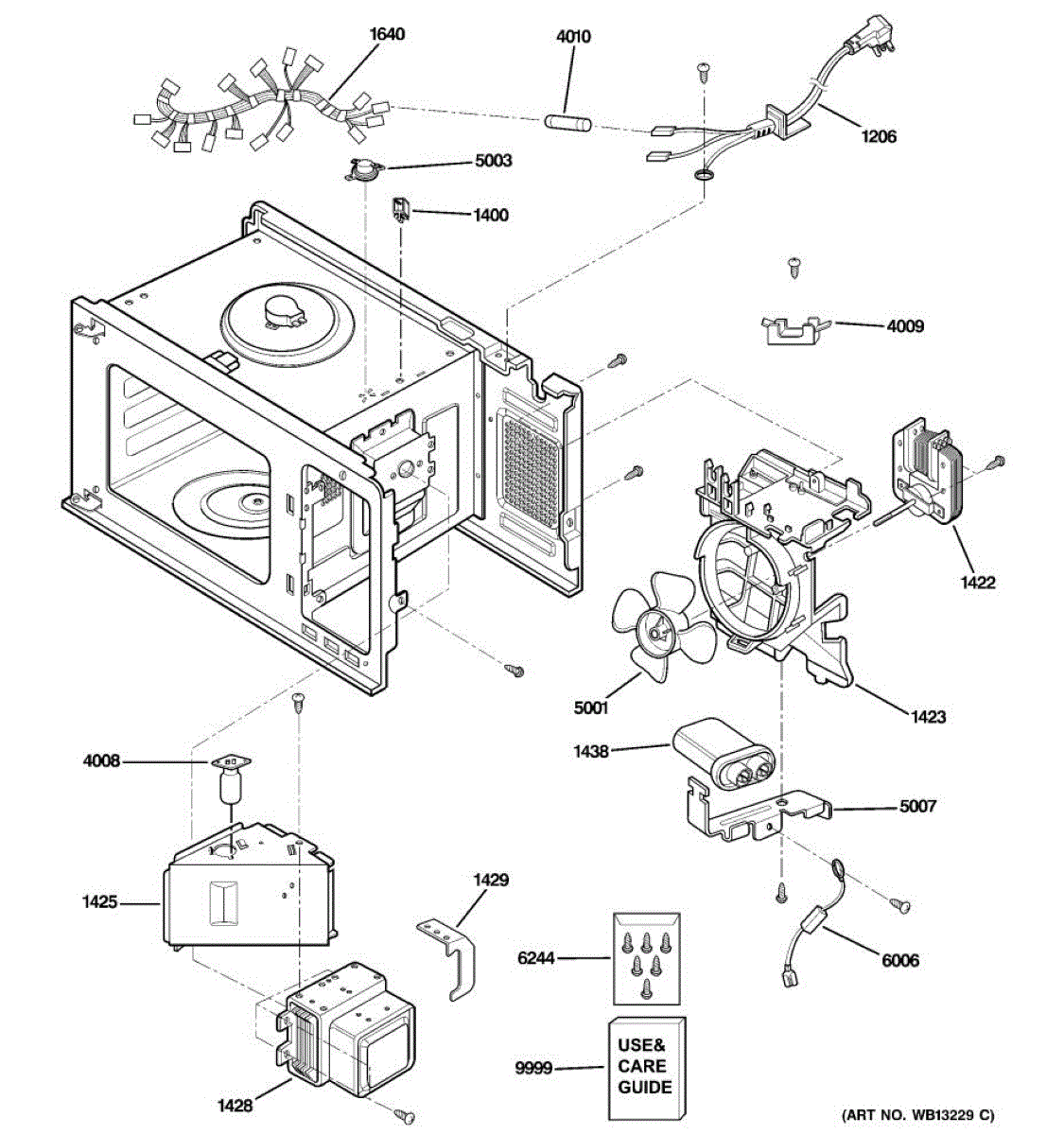

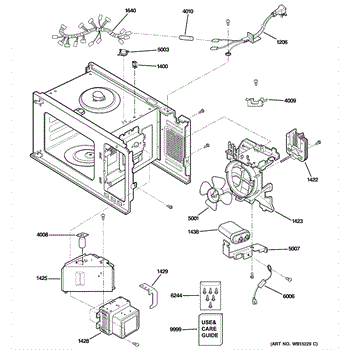

Parts for Ge JE1860SH02: 05 - Interior Parts (1) Parts

This wire holder is a small retaining clip that secures wiring or harnesses to the appliance chassis to prevent rubbing, strain, and accidental disconnection. It helps keep wiring routed neatly for reliable operation and safer service. What it does:

• Secures a wire or wiring harness to a mounting point to reduce movement and abrasion
• Helps prevent loose or chafed wires that can cause intermittent operation or electrical arcing
• Keeps wiring routed away from hot or moving components
• Restores proper harness placement after service or if the original clip is broken

• Always disconnect power to the appliance before servicing electrical components
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Clip typically installs into the factory mounting location; basic hand tools may be needed

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This propeller fan blade moves air through the appliance to support proper airflow and temperature control. Replacing a worn or damaged propeller restores circulation and helps the appliance run quietly and efficiently. What it does:

• Circulates air across coils, vents, or heat sources to maintain even temperatures
• Helps prevent hot or cold spots and reduces frost buildup from poor airflow
• Stops or reduces vibration and scraping noises caused by cracked or warped blades
• Restores proper fan operation when the original blade is broken, chipped, or missing

• Disconnect power before accessing internal panels or the fan assembly
• Inspect the mating hub and mounting hardware; replace any damaged clips or retainers
• Ensure correct blade orientation and secure attachment to avoid imbalance

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
