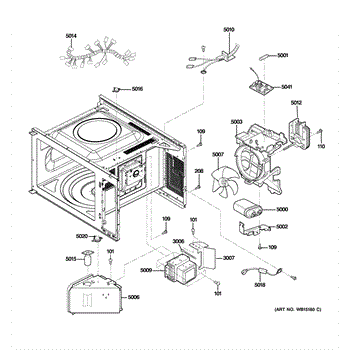

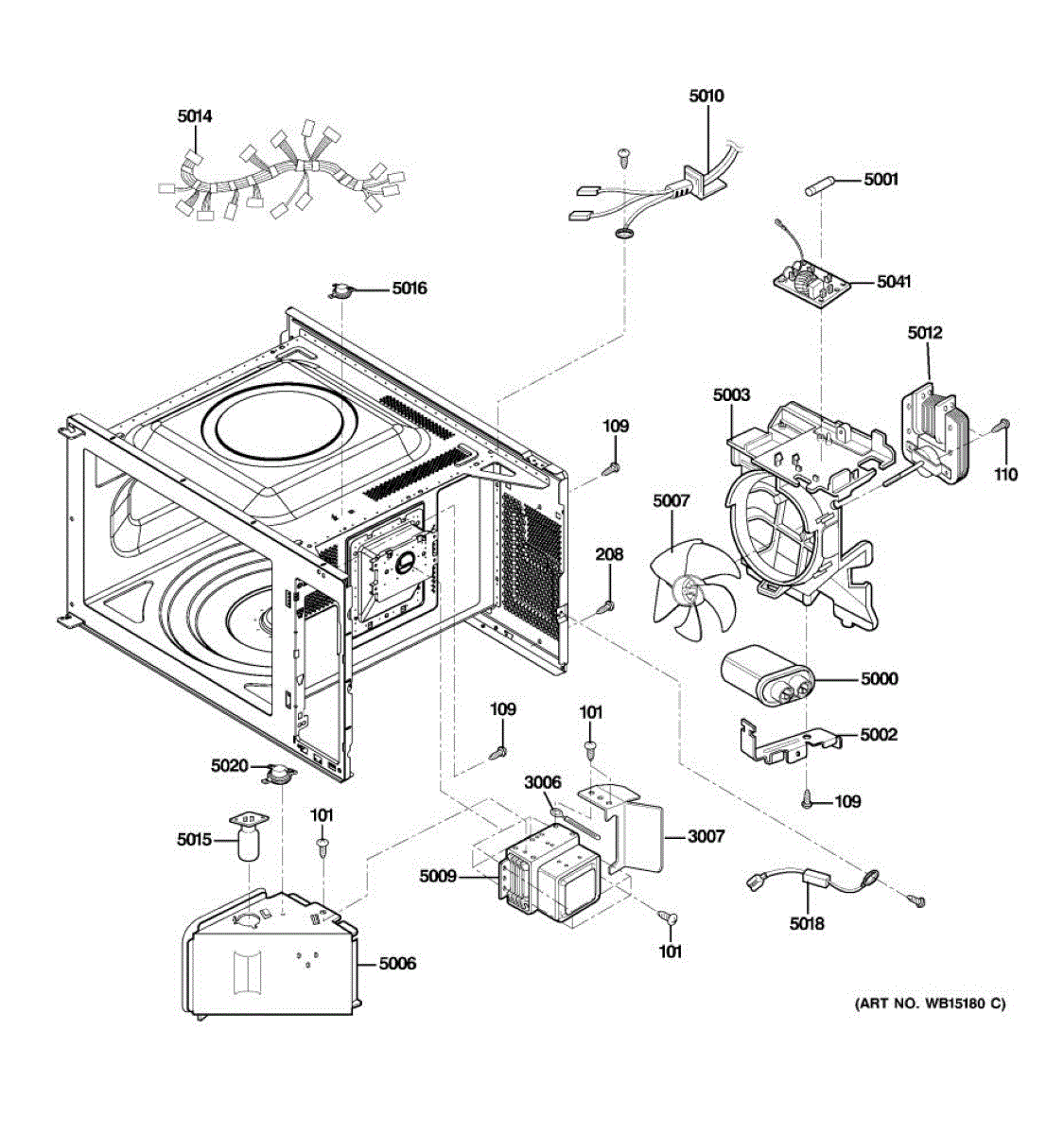

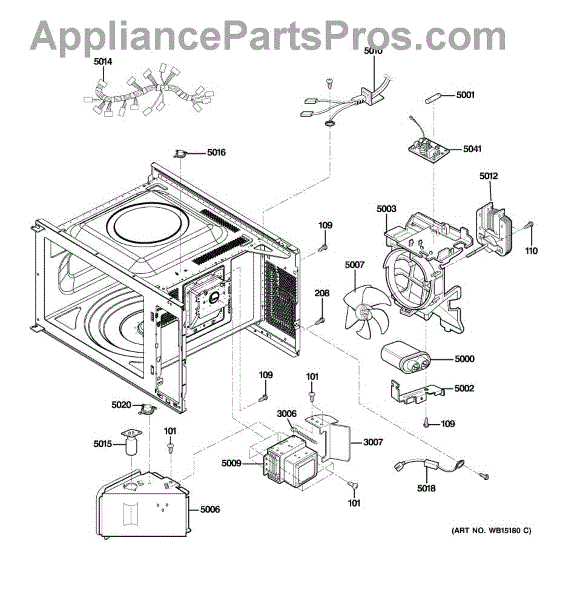

Parts for Ge JES1456DS1BB: 05 - Interior Parts

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

This is a truss-head self-tapping screw used to secure appliance panels and trim. It replaces a lost or damaged mounting screw to restore proper fit and stop rattles or loose parts. What it does

• Secures trim, panels, brackets or small components where a low-profile, wide-head screw is required
• Self-tapping design cuts threads into sheet metal or similar substrates—no nut required
• Restores tight mounting to reduce vibration, rattling or misaligned panels
• Commonly used in refrigerators, ranges and other household appliances

• One truss-head self-tapping screw

• Disconnect power to the appliance before servicing and work on a cool appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten—turn until snug and the part is secure but not distorted
• Replace with the exact part number to ensure fit and function

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This HVC mounting bracket secures the HVC assembly inside the appliance to keep components aligned and stable during operation. It restores proper positioning and reduces noise or movement caused by a loose bracket. What it does:

• Provides a mounting point to hold the HVC assembly securely in place
• Prevents vibration and rattling from a loose or damaged bracket
• Keeps electrical and mechanical components aligned for reliable operation
• Helps stop intermittent contacts or shifting that can cause unusual noises

• One HVC mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; keep track of mounting hardware for reassembly
• Inspect surrounding parts and wiring for damage before reinstalling
• Replace corroded or stripped fasteners to ensure a secure fit

This evaporator fan motor and blade assembly circulates cold air through the refrigerator compartment to help maintain even temperatures and proper cooling. Replaces a worn or noisy fan to restore airflow and reduce frost buildup. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator and into the fresh food and freezer sections
• Helps maintain consistent internal temperatures and efficient cooling
• Can reduce unusual noise or vibration when a failing motor or bent blade is replaced
• Stops refrigerator frost buildup caused by poor circulation

• Disconnect power before accessing the evaporator compartment and handling electrical connections
• Handle the fan blade carefully to avoid bending; ensure blade clears shroud and is seated on motor shaft
• Reinstall any access panels and seals to maintain proper airflow and defrost function

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement microwave lamp restores proper lighting inside the cavity or over the cooktop. A working bulb improves visibility while cooking and checking doneness, and allows the light feature to operate as intended.

• Provides illumination when the door opens or when the light button is used
• Helps you see food during cooking and cleanup
• Typical failure symptoms: no light, flickering, or intermittent lighting
• Visible darkening or a broken filament indicates the bulb has failed

• Disconnect power at the breaker or unplug the appliance before replacing
• Allow the bulb and surrounding area to cool
• Match the base style and electrical rating to your original bulb per the owner's manual
• If your bulb is the halogen capsule style, handle with clean gloves or a cloth; avoid touching the glass

The Thermostat is an OEM part for GE microwaves. This thermostat maintains safe operating temperatures by monitoring the internal heat levels and regulating the microwave's heating elements.

Causes of a bad thermostat can include electrical issues, repeated heating cycles leading to wear and tear, or damage from power surges.

Symptoms of a bad thermostat include:

• The microwave not heating properly
• The microwave shutting off unexpectedly during operation
• Error codes or warning signals related to temperature issues
• The microwave not starting at all

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement thermostat monitors internal temperature and opens the circuit if overheating is detected. Restores the appliance's over-temperature protection and can resolve shutoff, no-power, or no-heat issues related to a failed safety thermostat. What it does:

• Monitors temperature and opens the circuit at a set threshold to prevent overheating
• Helps protect internal components from heat damage
• Failure symptoms include: no power, shuts off during/after cooking, runs but doesn't heat, or won't restart until cooled
• May cause intermittent operation following extended or high-heat use when failing

• 1 thermostat

• Disconnect power before servicing; microwave repairs involve dangerous high voltage
• Access the thermostat, note wire positions, and transfer leads to the new part
• Mount flush and secure with the original screws/bracket to ensure proper heat sensing
• Restore power and test; monitor operation to confirm normal cycling and protection
