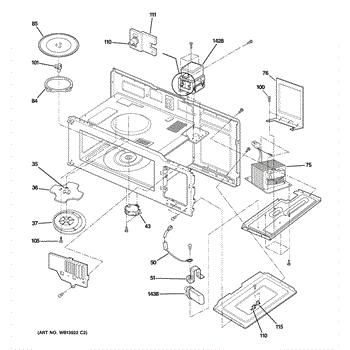

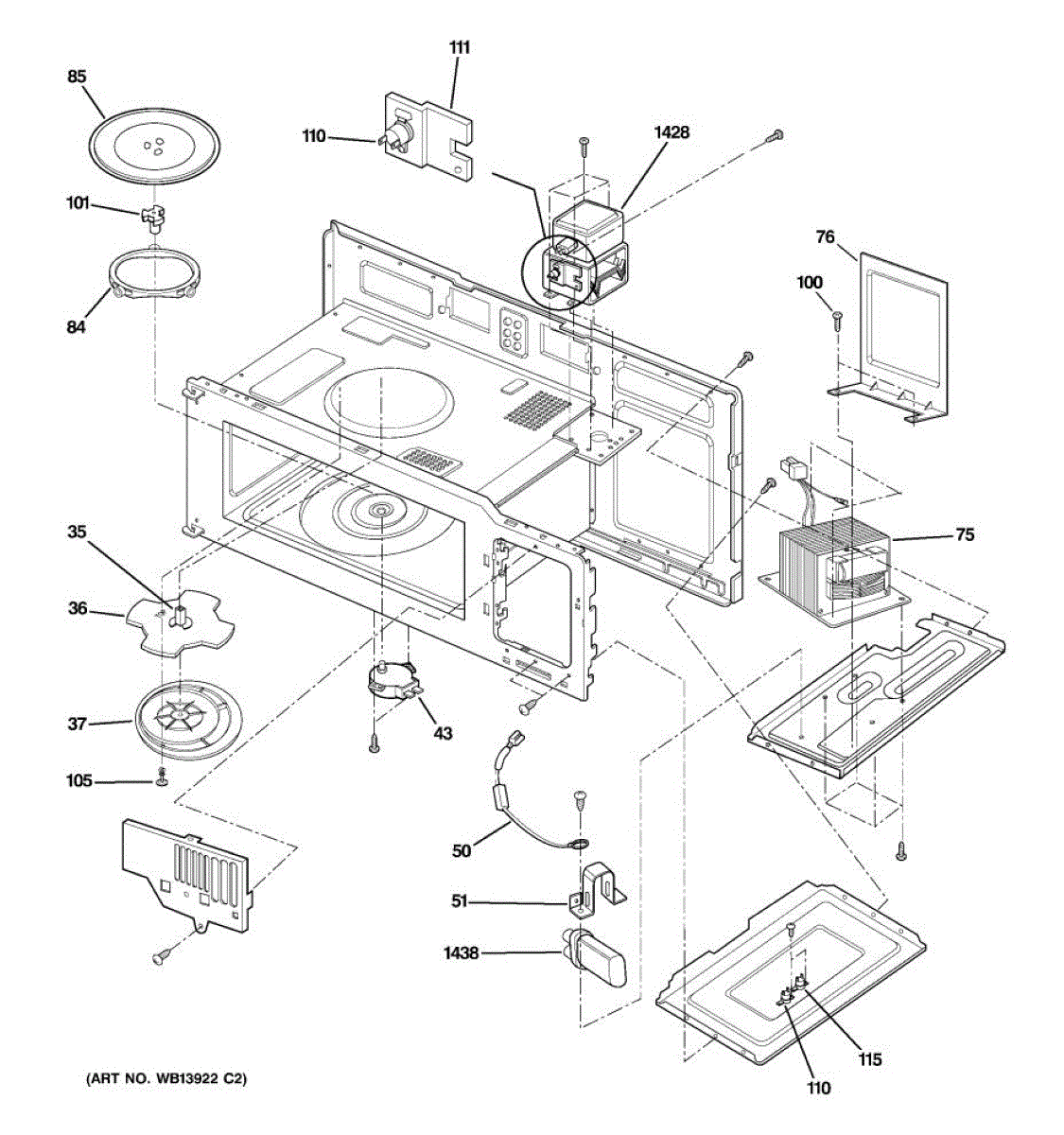

Parts for Ge JVM1540DM5CC: 05 - Interior Parts (1) Parts

The Stirrer Fan Cover is an OEM replacement part for GE Microwaves. It is responsible for shielding internal mechanisms during operation.

Causes of a faulty cover include normal wear over time, cracking, or warping due to exposure to high heat.

Symptoms of a problematic cover include:

• Excessive noise or vibration during use
• Reduced or uneven heating performance
• Gaps exposing vulnerable electrical components
• Loose pieces that could fall into the microwave cavity

This GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotating Ring Assembly is an OEM part for GE microwaves. It supports the microwave turntable, enabling it to rotate during operation to ensure even cooking and heating of food. This ring is approximately 10 inches in diameter.

Causes of a bad rotating ring assembly can include wear and tear from regular use, accumulation of food debris or grease that hampers movement, or physical damage such as cracks or warping from overheating.

Symptoms of a bad rotating ring assembly include:

• The turntable not rotating
• Uneven cooking or heating of food
• Noisy or jerky movement of the turntable
• Visible damage or warping of the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooking Tray is an OEM part for GE microwaves. This tray sits on the turntable in the microwave and holds the food items being heated or cooked, allowing for even rotation and uniform cooking.

Causes of a bad cooking tray can include cracks or breaks from heavy use, exposure to extreme temperatures, or accidental drops.

Symptoms of a bad cooking tray include:

• Cracks or chips on the tray
• Difficulty in rotating or the tray not rotating at all
• Unstable placement of food items
• Uneven cooking results

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

The Turntable Coupler is an OEM part for GE microwaves. This component connects the turntable motor to the microwave's glass tray, enabling the rotation of the tray during cooking. By ensuring even heating and cooking of food, the turntable coupler plays a vital role in the microwave's overall performance.

Causes of a bad turntable coupler can include wear and tear from frequent use, physical damage from heavy or uneven loads on the turntable, or breakage from accidental impacts.

Symptoms of a bad Turntable Coupler include:

• The turntable not rotating
• Uneven cooking or heating of food
• Grinding or clicking noises when the turntable attempts to move
• The glass tray being unstable or slipping off the coupler

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

This replacement thermostat monitors internal temperature and opens the circuit if overheating is detected. Restores the appliance's over-temperature protection and can resolve shutoff, no-power, or no-heat issues related to a failed safety thermostat. What it does:

• Monitors temperature and opens the circuit at a set threshold to prevent overheating
• Helps protect internal components from heat damage
• Failure symptoms include: no power, shuts off during/after cooking, runs but doesn't heat, or won't restart until cooled
• May cause intermittent operation following extended or high-heat use when failing

• 1 thermostat

• Disconnect power before servicing; microwave repairs involve dangerous high voltage
• Access the thermostat, note wire positions, and transfer leads to the new part
• Mount flush and secure with the original screws/bracket to ensure proper heat sensing
• Restore power and test; monitor operation to confirm normal cycling and protection

Replacement mounting bracket that secures internal panels or components to the appliance frame, restoring alignment and stability. Use this bracket to replace cracked, bent, or missing supports that cause vibration or loose parts. What it does:

• Supports and secures panels, trim, or internal assemblies to keep components properly aligned.
• Reduces rattling, sagging, or movement caused by a broken or missing bracket.
• Restores stable mounting after impact, wear, or stripped mounting points.
• Helps maintain proper fit and operation of adjacent parts by providing a solid attachment point.

• Disconnect power (and water/gas if applicable) before starting any repair.
• Basic hand tools required; remove adjacent panels or trim for access as needed.
• Retain original fasteners when possible; replace damaged clips or screws.

This thermostat is a temperature-sensitive safety switch that monitors heat and helps protect the appliance from overheating. It opens or closes the circuit at a set temperature to maintain safe, reliable operation.

• Monitors temperature at its mounting location and switches the circuit when the threshold is reached
• Helps prevent overheating by interrupting power until conditions return to normal
• Failure can present as no heat, the unit shutting off during use, or loss of power until cooled
• Restores proper over-temperature protection when replaced with the correct matching part

• Disconnect power at the breaker or unplug the appliance before servicing
• Note wire positions and transfer any brackets or insulation from the original part to the new one
• After installation, verify secure connections and correct mounting before testing

This is the high-voltage magnetron for a microwave oven. It generates the microwave energy that heats food; replacing a weak or failed magnetron can restore normal cooking performance and resolve "runs but no heat" complaints.

• Generates the RF energy that cooks and heats inside the microwave cavity
• Common fix when the microwave runs but does not heat
• Symptoms can include unusually loud humming/buzzing during operation
• Helps with intermittent heating or a burnt odor from a failing tube

• Disconnect power and safely discharge the high-voltage capacitor before servicing
• Note wire locations; transfer any shielding, brackets, or insulators from the original as required
• Mount securely and ensure correct orientation for proper cooling airflow
• After reassembly, test heating with a cup of water
