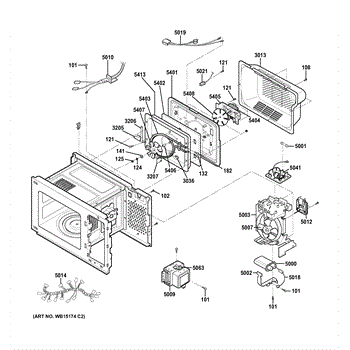

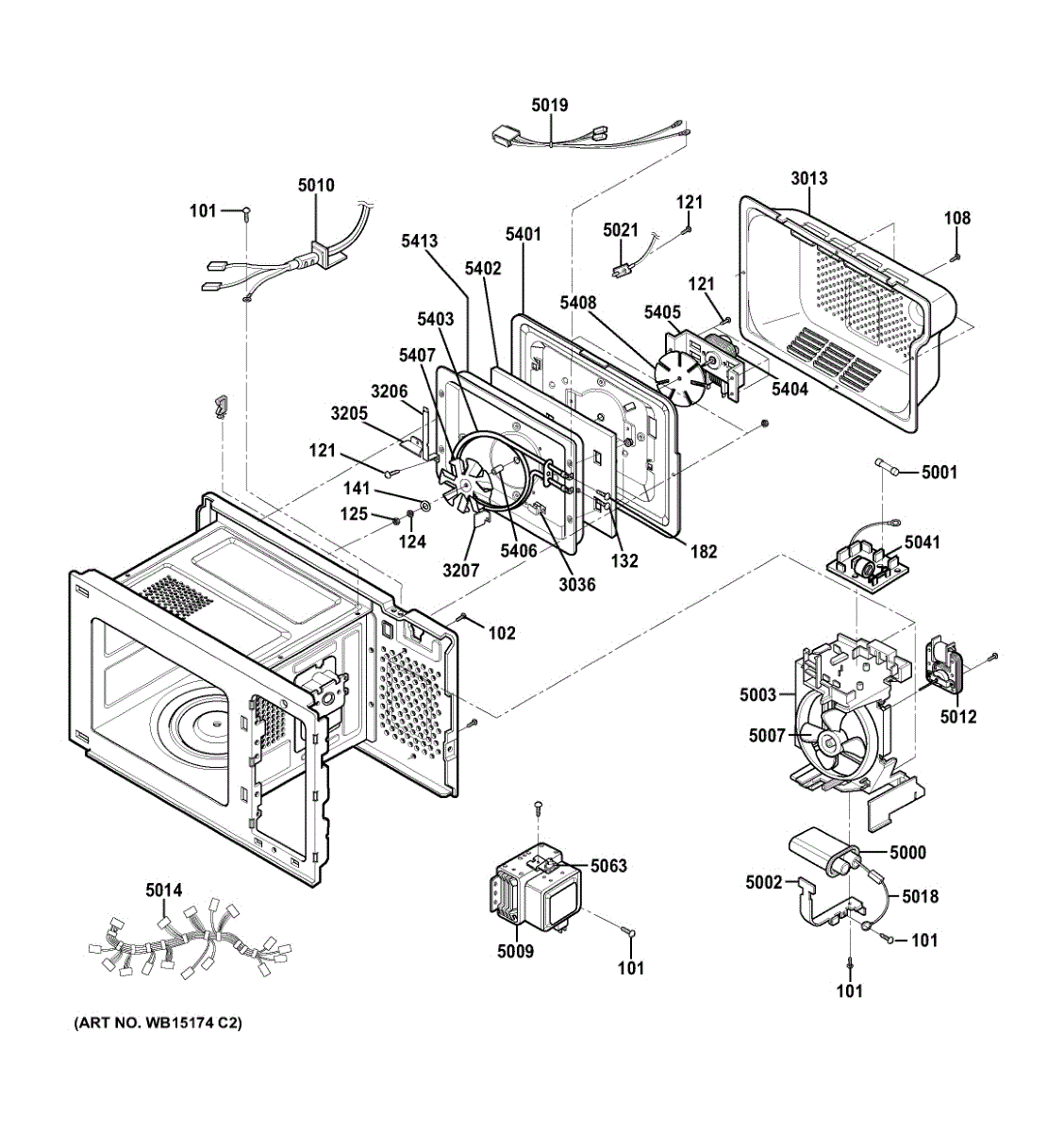

Parts for Ge CEB1590SS3SS: Interior Parts

This heater holder is the mounting bracket that secures the oven heating element in place so the element stays aligned for reliable heating and safe operation. It helps prevent movement that can cause uneven cooking or damage. What it does:

• Holds and stabilizes the oven/heater element in the cavity so it stays properly positioned
• Keeps the element from contacting other components, reducing the risk of shorts or damage
• Helps maintain even heat distribution by preventing element sagging or misalignment
• Fits where the element mounts and supports normal operation of the heating circuit

• One heater holder/mounting bracket

• Turn power to the appliance off at the breaker before servicing to avoid shock
• Inspect the element and surrounding insulation for damage when replacing the holder
• Typically secures with screws or clips—retain hardware and note orientation for reassembly

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This temperature thermistor is the sensor that lets the control board monitor and regulate appliance temperature for reliable cooling performance. Replacing a failing thermistor can restore proper temperature control and cycling. What it does:

• Senses internal temperature and sends readings to the control board
• Helps the compressor, fans, and defrost system run at the right times
• Commonly linked to symptoms like incorrect temperatures, overcooling, or frequent on/off cycling
• A faulty thermistor can cause improper defrost timing or erratic cooling behavior

• Disconnect power before inspecting or replacing the sensor to avoid shock
• Handle the sensor and wiring connector gently to avoid damage
• Mount the sensor in the original location and secure wiring per OEM routing

This heater sheath is the protective metal sleeve that surrounds a dryer/oven heating element, helping protect the element and channel heat where it's needed. It replaces a worn or damaged sheath to restore safe operation. What it does:

• Protects the heating element from physical contact, debris, and shorting
• Helps direct heat flow for consistent heating performance
• Reduces risk of element damage from rubbing or impacts
• Can prevent intermittent heating caused by a compromised sheath

• One heater sheath

• Disconnect power (and gas if applicable) before servicing; follow all safety precautions
• Handle heating elements and terminals carefully to avoid bending or damage
• Basic hand tools required;

This shaft ring is a small retaining clip that secures a rotating shaft in place, helping keep connected components aligned and moving smoothly. It's a simple replacement that restores proper shaft retention and reduces wobble. What it does:

• Clips into a shaft groove to hold components on the shaft
• Prevents axial movement and keeps parts from sliding out of position
• Helps reduce noisy or unstable operation caused by loose shaft components
• Commonly used where a compact, reliable retention method is required

• One shaft ring

• Inspect the shaft and groove for wear or debris before installing; clean as needed
• Use appropriate snap-ring pliers or a safe, non-marring tool to install/remove the ring
• Ensure the ring fully seats in the shaft groove and the retained part is secure before reassembly
• Disconnect power and follow appliance safety procedures before servicing
