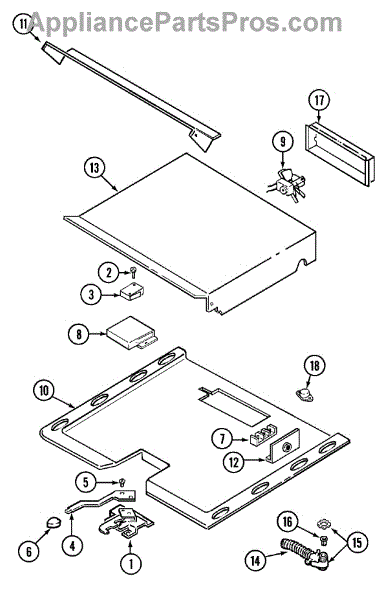

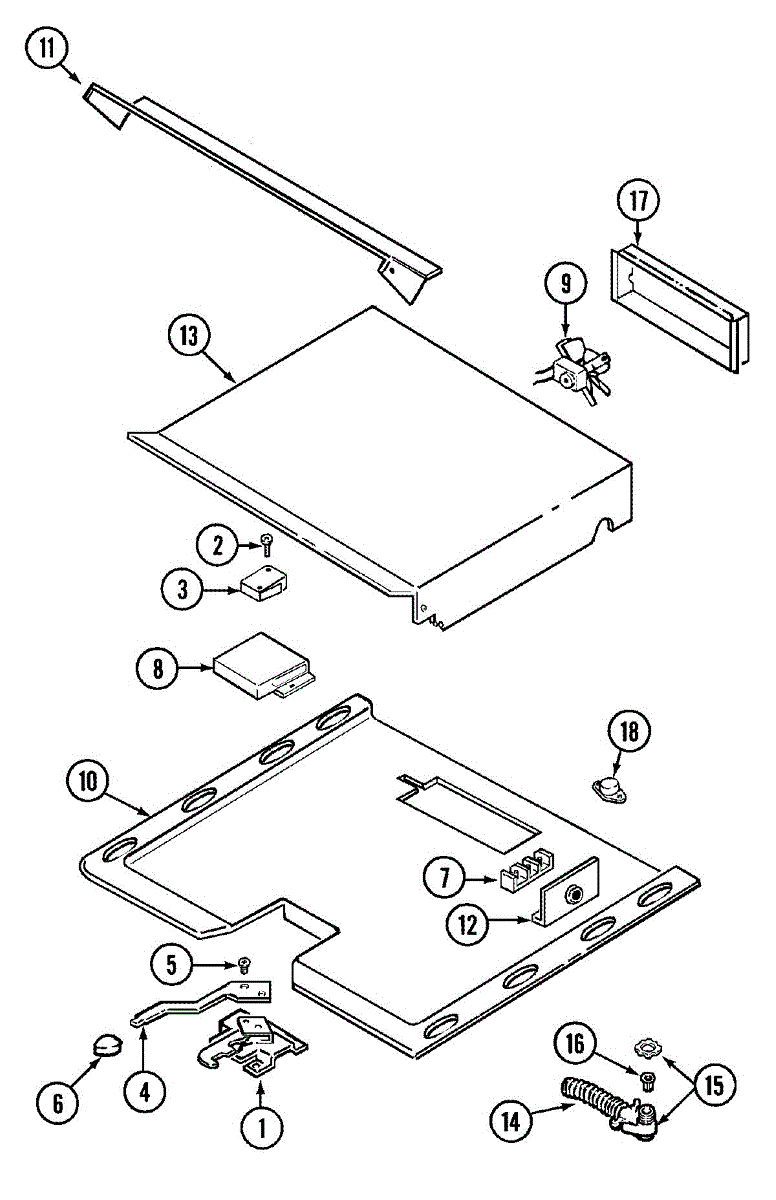

Parts for Magic Chef 9875VYV: 04 - Internal Controls Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: 10-24X5/16-NI

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan assembly circulates air through the appliance to support proper cooling and ventilation, restoring airflow and helping the unit maintain even temperatures and efficient operation. What it does:

• Moves air through the appliance to aid cooling, ventilation, or drying functions
• Helps prevent overheating by maintaining airflow across coils or heat sources
• Can reduce abnormal operating temperatures and airflow-related performance issues
• Restores proper fan operation when the original wheel or motor fails

• Disconnect power (and water, if applicable) before starting any repair
• Handle fan blades carefully to avoid damage or imbalance
• Inspect mounting hardware and wiring for wear; replace any damaged fasteners or connectors

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
