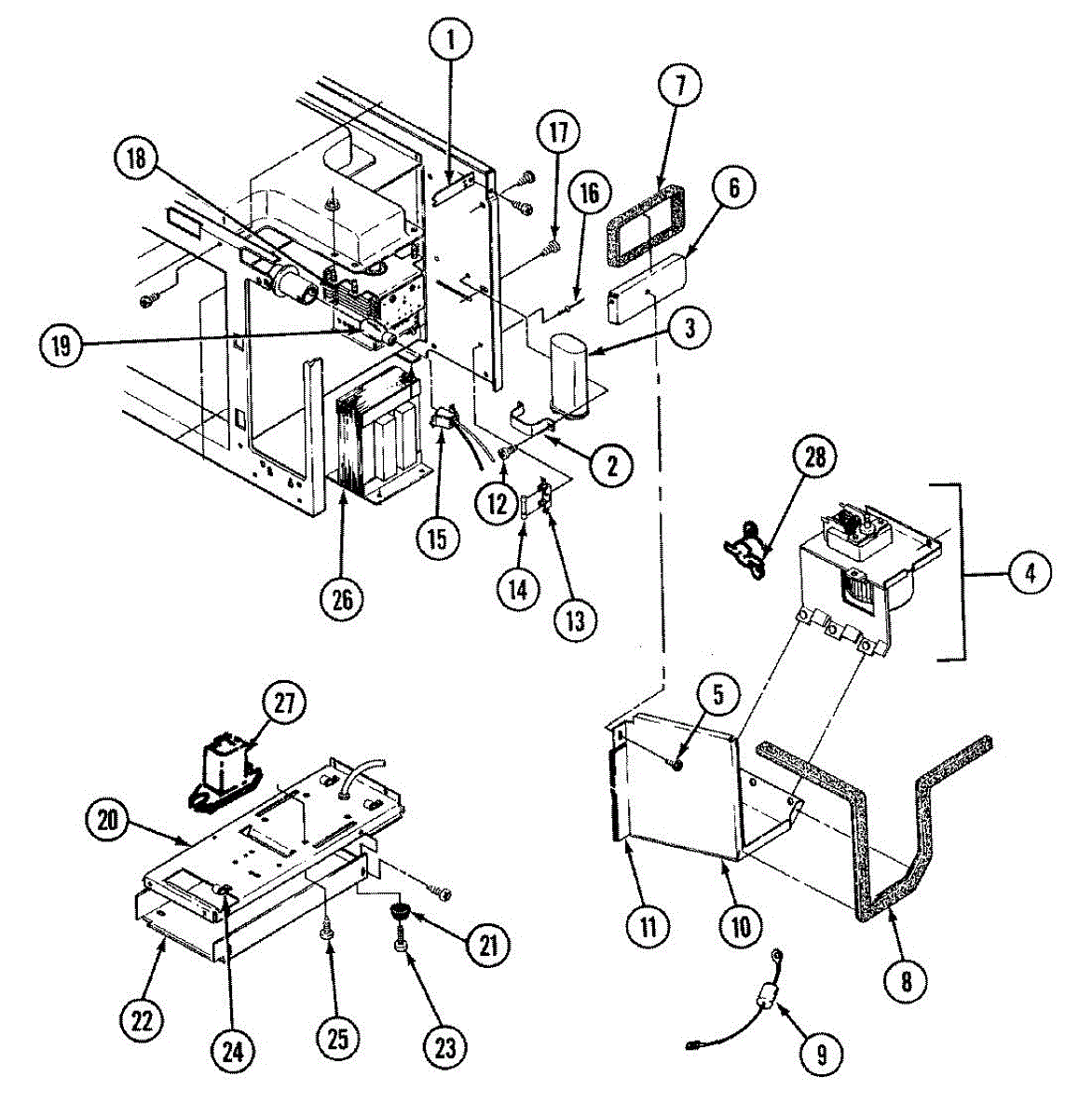

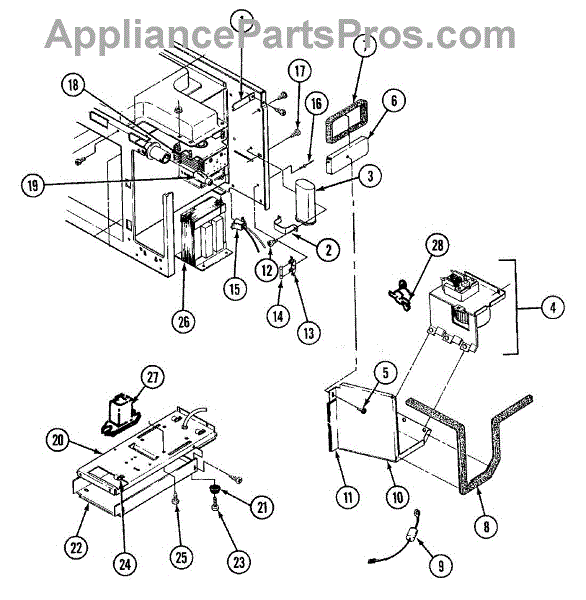

Parts for Magic Chef CM47HW-14T: 05 - Internal Controls Parts

This part has been discontinued and is no longer available.

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

This 15 amp, 250 volt replacement fuse protects your appliance's electrical circuits by interrupting power when a fault or overload occurs. It restores safe operation once the underlying issue is fixed and the fuse is replaced. What it does:

• Acts as an overcurrent protection device for circuits rated up to 15 A and 250 V
• Prevents damage to wiring and components by opening the circuit during an overload or short
• Common symptom: appliance has no power or specific functions stop working after a sudden failure
• Replacing a blown fuse can resolve intermittent power loss or complete power failure tied to a single blown element

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only with a fuse of the same amperage and voltage rating to maintain safety and proper protection
• Use insulated tools and avoid touching live terminals; internal access may require disassembly, follow OEM service instructions
• If fuses blow repeatedly, stop using the appliance.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling. Use when a damaged or missing screw causes loose trim, gaps, or vibrating noises; order by part number to ensure a match. What it does:

• Fastens panels, brackets, or trim to keep parts aligned and secure.
• Stops vibration and rattling caused by loose or missing screws.
• Common symptoms: visible gaps, loose panels, hardware falling out, or excess noise.
• Use the part number and/or existing screw to ensure correct size and thread before ordering.

• Disconnect power and water before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head.
• Turn until snug; avoid over-tightening which can strip threads or crack trim.
• Keep small parts away from children and pets during repair.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
