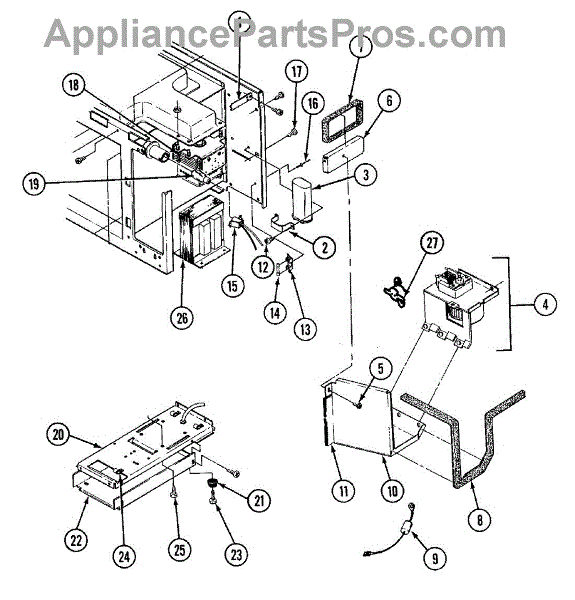

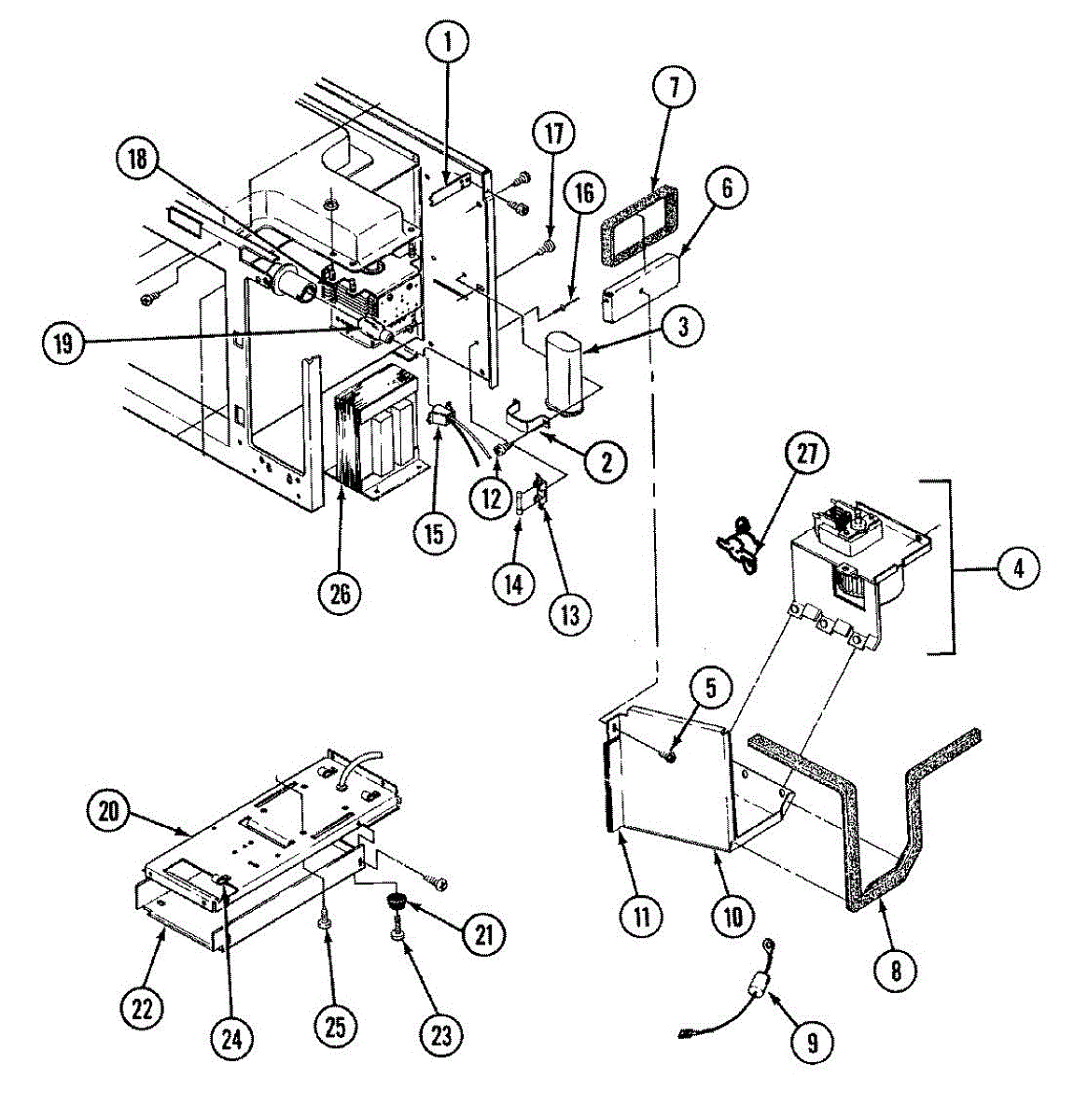

Parts for Magic Chef CM48F-14T-02: 05 - Internal Controls Parts

This part has been discontinued and is no longer available.

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

• Provides a secure mounting point and electrical connection for a fuse or inline connection
• Enables proper power flow between the control and high-voltage components
• Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
• Replaces a worn, cracked, or melted terminal block to restore safe connections

• Disconnect power to the appliance before starting any work
• Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

This 15 amp, 250 volt replacement fuse protects your appliance's electrical circuits by interrupting power when a fault or overload occurs. It restores safe operation once the underlying issue is fixed and the fuse is replaced. What it does:

• Acts as an overcurrent protection device for circuits rated up to 15 A and 250 V
• Prevents damage to wiring and components by opening the circuit during an overload or short
• Common symptom: appliance has no power or specific functions stop working after a sudden failure
• Replacing a blown fuse can resolve intermittent power loss or complete power failure tied to a single blown element

• Disconnect power to the appliance before inspecting or replacing the fuse
• Replace only with a fuse of the same amperage and voltage rating to maintain safety and proper protection
• Use insulated tools and avoid touching live terminals; internal access may require disassembly, follow OEM service instructions
• If fuses blow repeatedly, stop using the appliance.

Pop rivet secures sheet-metal panels, brackets, and burner jar lids on appliances. Replace missing, drilled-out, or damaged rivets for permanent hold.

Replacement mounting screw secures panels, brackets, and trim to the appliance frame. Needed when original screw is stripped, missing, or damaged.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
