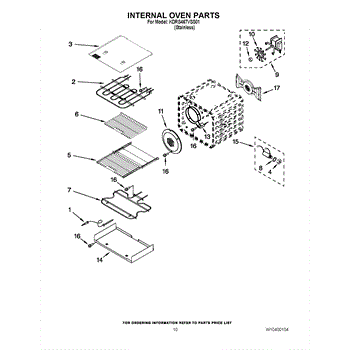

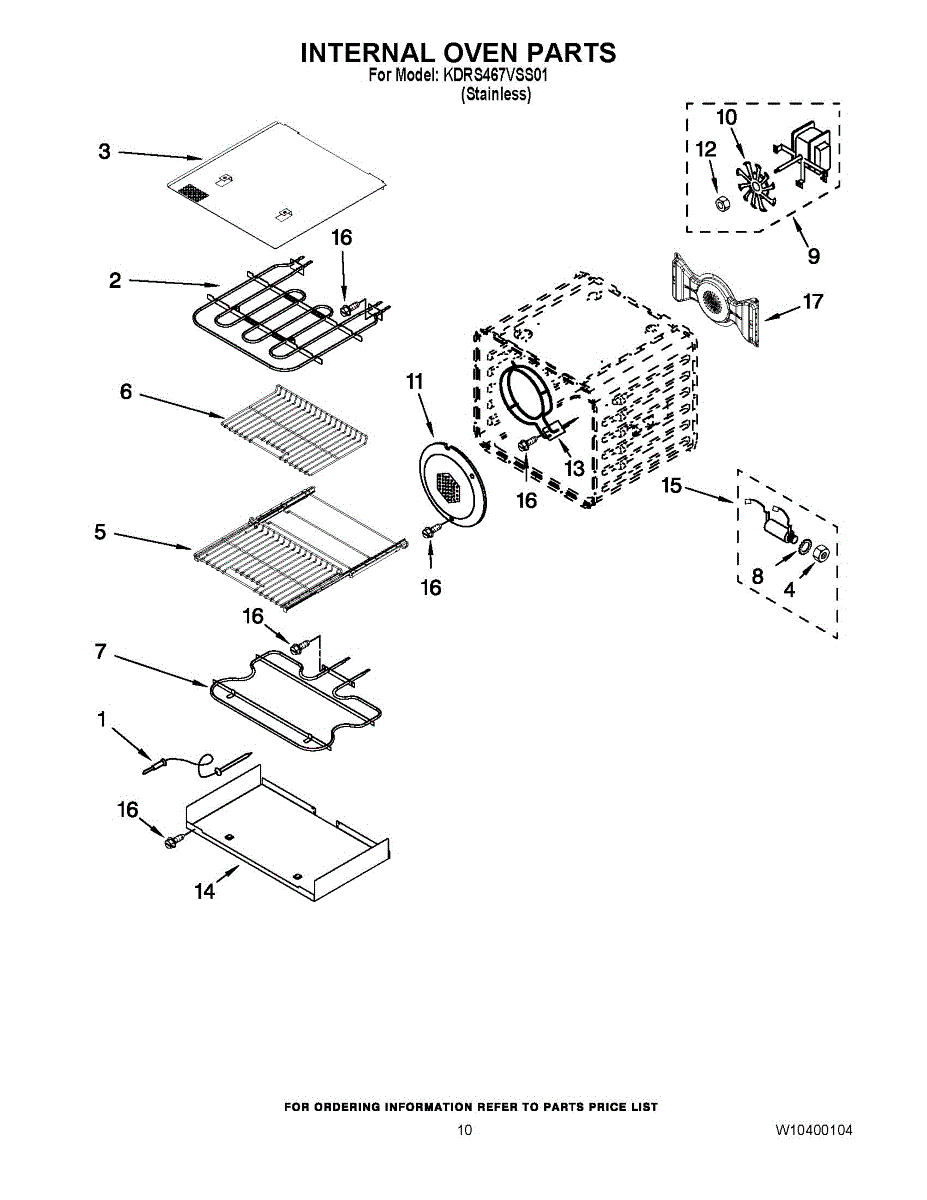

Parts for Kitchenaid KDRS467VSS01: 07 - Internal Oven Parts

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

If your oven won't broil or top heat is weak, this broil element restores upper heating. Fits into cavity and connects to existing terminals.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

Sliding oven rack for gas ranges. Replaces cracked, bent, or rusted racks. Heavy-duty steel construction supports bakeware at multiple positions.

This bake element replaces the oven's lower heating element to restore normal baking heat and even cooking results. It fits compatible electric ovens and is a direct-replacement designed for safe, reliable operation. What it does:

• Heats during bake cycles to provide consistent oven temperature for cooking and baking
• Common fix when the oven won't heat or bake function fails
• Replaces elements that are visibly damaged, blistered, or show open continuity
• Helps eliminate cold spots and uneven baking when the element is functioning correctly

• One bake element

• Disconnect power to the appliance at the breaker before starting work
• Wear gloves and allow the oven to fully cool; access is typically from inside the oven or rear panel depending on model
• Remove and replace carefully, reconnecting terminals securely and checking for proper operation before restoring regular use
• If you see damage to mounting hardware or insulation, replace those parts as needed per service instructions

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

This surface cooktop element provides the heating source for electric ranges and replaces a damaged or non-working burner to restore normal cooking heat. Designed to match OEM fit and function for compatible Whirlpool ranges. What it does:

• Heats cookware for stovetop cooking when the burner control is turned on
• Replaces a burned-out or broken surface element that no longer heats
• Can resolve symptoms like no heat from the burner, intermittent heating, or visible damage to the element
• Restores even heating when the original element has hot spots or partial failure

• Disconnect power at the breaker or unplug the range before servicing to avoid shock
• Allow the element and cooktop to cool completely before removing or installing
• Remove the old element by unplugging the connector or detaching mounting hardware, then connect the new element securely

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replacement convection oven baffle for electric ranges. This metal heat spreader directs airflow inside the oven cavity. Order now if yours is warped or damaged.
