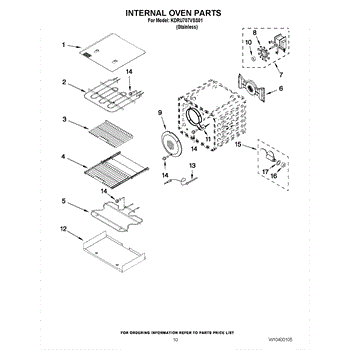

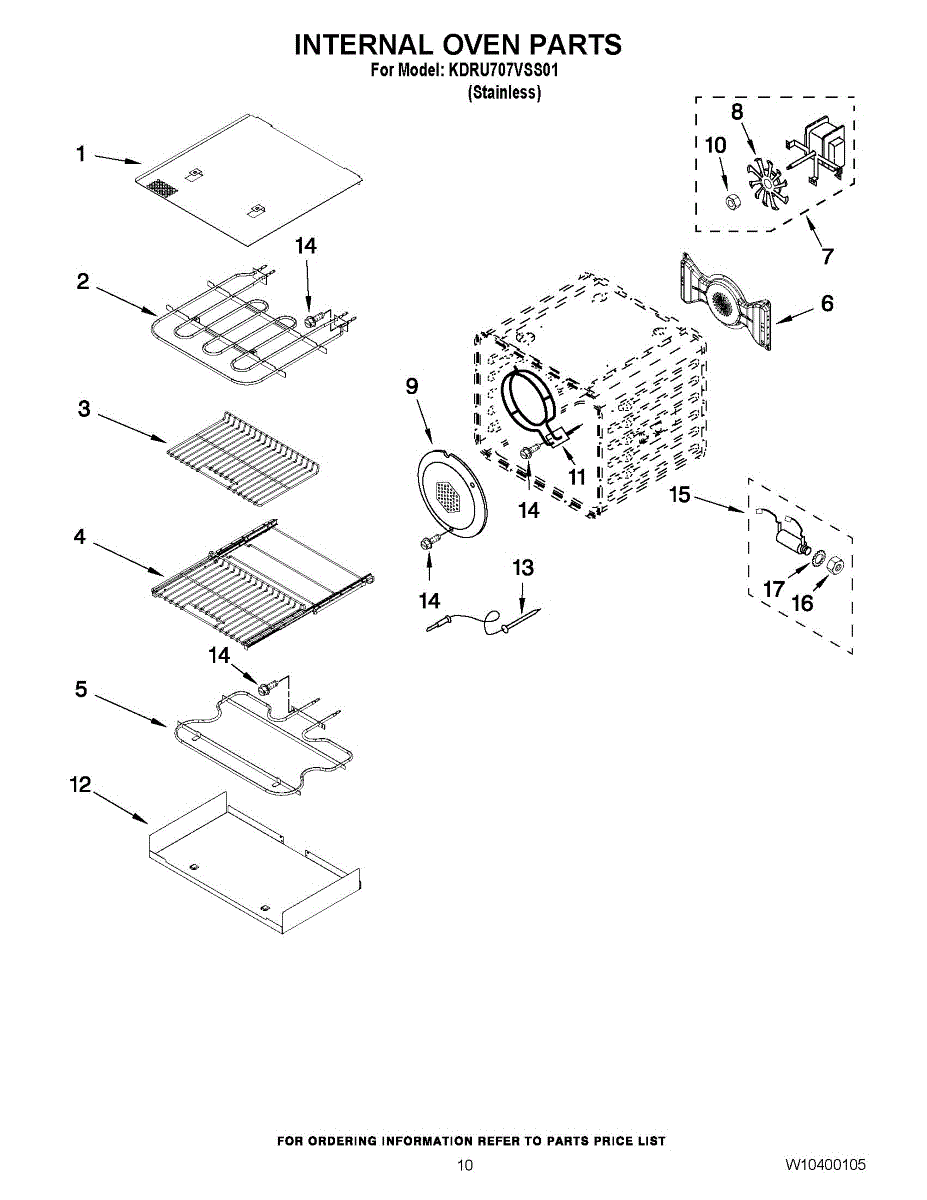

Parts for Kitchenaid KDRU707VSS01: 07 - Internal Oven Parts

This broil heating element provides the upper-oven heat for broiling and high-temperature cooking. Replaces a failed or damaged upper element to restore broil performance and even top-heat browning. What it does:

• Produces direct top-oven heat used for broiling and finishing dishes
• Restores broil function when the upper element no longer heats
• Helps eliminate uneven browning or food that won't crisp on top
• Shows visible signs of failure such as burning, breakage, or no heat

• One broil (upper oven) heating element

• Disconnect power (unplug or switch off breaker) before starting any work
• Handle element carefully to avoid bending or damaging terminals
• Electrical connections are secure and routed clear of interior surfaces
• After installation, restore power and test broil function; replace oven light cover or insulation as needed

The Rack is an OEM part for Whirlpool wall ovens. It provides a durable surface for baking and cooking food items. These racks are engineered to maximize capacity while withstanding high heat.

Causes of a bad rack include standard wear and tear from regular cleaning cycles in addition to exposure to grease buildup despite cleaning. Racks support significant weight loads during cooking cycles.

Symptoms of a bad rack include:

• Visible bends, cracks, or detachment of rack elements
• Lack of support leads to spilled/dropped food safety concerns
• Food or debris lodged in rack imperfections promotes residue buildup
• Compromised rack integrity reduces usable oven space for cooking

This Whirlpool OEM replacement rack directly fits the original location and restores full cooking functionality. Models also include Maytag, KitchenAid, Jenn-Air, and select Kenmore ovens for lasting performance.

This oven rack replaces a damaged or missing rack to restore safe, level support for your cookware. It slides into the oven's side supports so you can place pans at the right height for baking and roasting.

• Provides a sturdy, level surface for bakeware inside the oven cavity
• Slides along the side rails for easy loading and unloading
• Positions food at the desired height for proper cooking and air circulation
• Common signs it's needed: bent/warped wires, peeling finish or rust, instability, or difficulty seating/sliding

• Allow the oven to cool completely; wear gloves to avoid sharp edges; no tools required
• Insert the rear of the rack into the side supports at the desired level, then level and slide forward until fully seated
• Refer to your user manual for recommended rack positions and any self-cleaning guidance

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

Color: brown. Its total length is about 25 inches.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.
