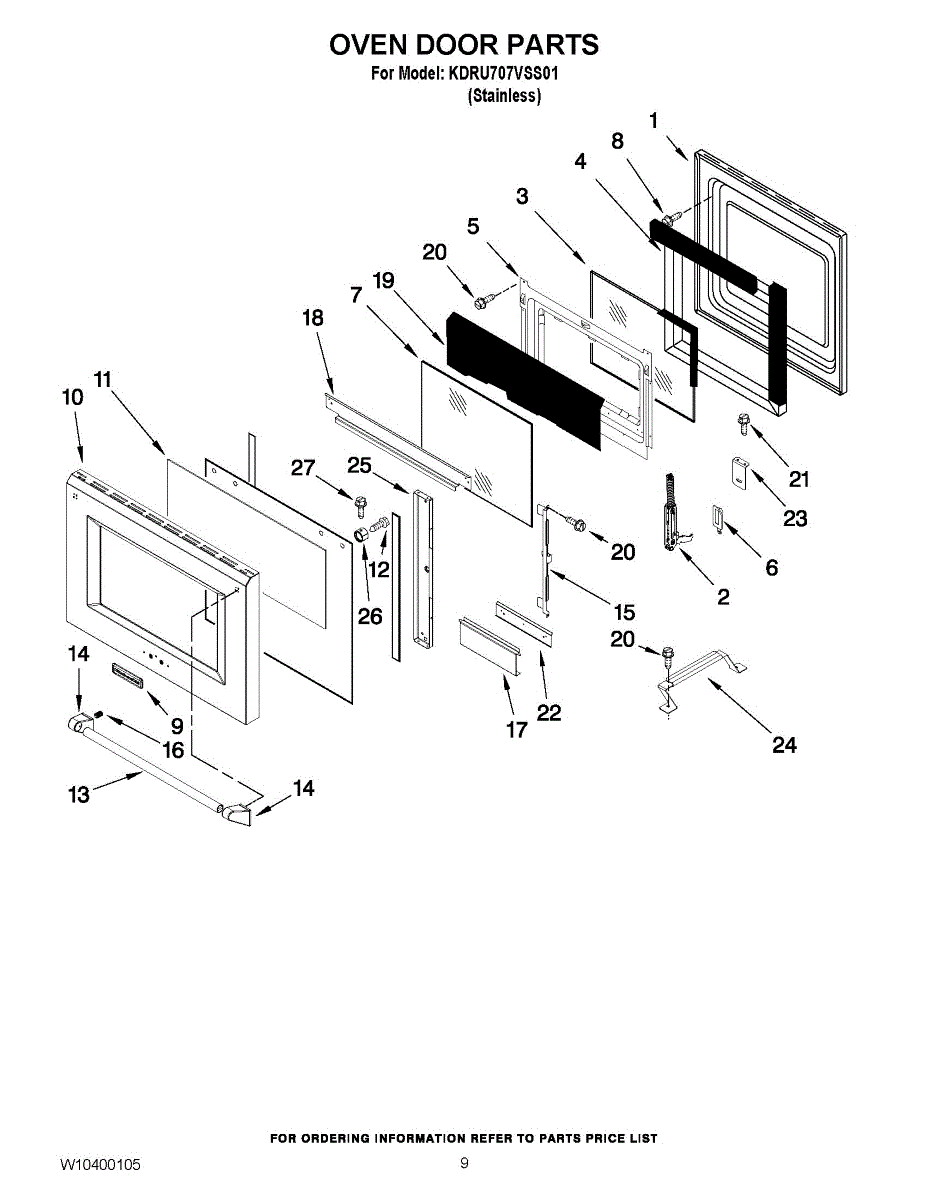

Parts for Kitchenaid KDRU707VSS01: 06 - Oven Door Parts

Replace your cracked, dented, or worn 30-inch oven door panel. This outer skin restores appearance and supports the handle, glass, and trim assembly.

Right-side door hinge supports and pivots your range door for smooth operation. Replace if door sags, rubs, or won't close properly. Verify fit by model.

Left-hand range door hinge restores smooth operation and proper alignment. Replace when door sags, rubs, or won't close securely. Confirm fit with model.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fixes heat loss and hot exterior oven door surfaces. Thermal insulation maintains internal temperature. Advanced repair requiring door removal, 15+ min.

Replaces the inner heat-resistant glass panel in your oven door. Needed when glass is cracked, shattered, or broken during cleaning or use.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This is a nameplate label that attaches to the range vent hood, displaying model and specification information. It serves as an identification tag for the appliance, which is important for ordering replacement parts or scheduling service. Replace this label if it has become illegible, peeled off, or was lost during a previous repair.

Replace your range's outer door panel if it's dented, scratched, or discolored. This cosmetic part updates the front appearance of your oven door.

Replace your range's exterior door handle. This handle attaches to the front of your oven door for opening and closing. Order a new one if cracked or broken.

End cap that fits onto your range door handle to protect the exposed end and provide a finished look. Replaces cracked, broken, or missing caps.

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Heat shield for electric wall ovens. Protects internal components from excess heat. Replace if cracked, warped, or missing to maintain proper insulation.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and internal components. Order a new screw if yours is stripped, missing, or damaged.
