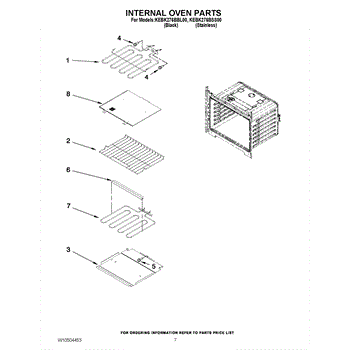

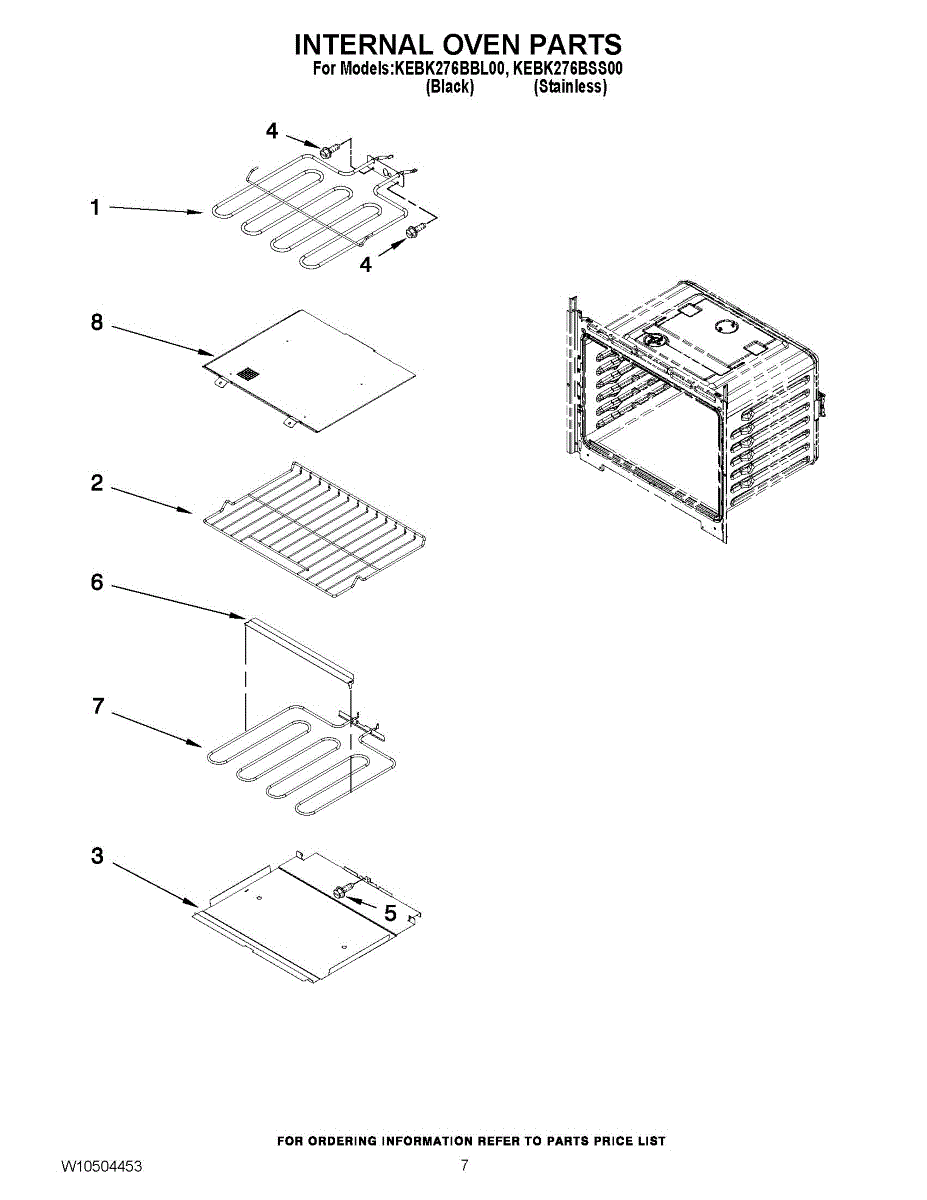

Parts for Kitchenaid KEBK276BBL00: 05 - Internal Oven Parts

This broil element provides the intense top heat your electric oven needs for broiling and finishing dishes. Replacing a failed element restores consistent top browning when the broiler no longer heats or heats unevenly.

• Heats from the top of the oven cavity during broil to sear and brown foods
• Replaces a burned-out, shorted, or physically damaged element
• Symptoms: broiler won't heat, intermittent heating, uneven top browning, or visible blistering/breaks

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove oven racks; support the element while removing mounting screws and gently pull it forward to access terminals
• Transfer wires one at a time to the new element; ensure tight connections and that terminals do not touch metal surfaces; restore power and test broil

Replacement oven rack restores a stable cooking surface and allows easy access to food. It provides secure support for cookware and slides smoothly on oven rack guides so you can load and remove dishes safely. What it does:

• Holds cookware and bakeware inside the oven so pans sit level during baking and roasting.
• Slides in and out on factory rack guides for easy loading and checking food.
• Replace if the rack is bent, warped, sagging, or has a damaged finish that interferes with use.
• Helps prevent cookware from tipping or shifting while you remove hot items.

• Allow the oven to cool completely before installing or removing racks to avoid burns.
• Slide the rack into the desired set of guides until it seats fully and sits level.
• No tools are typically required; inspect rack guides and supports for damage before use.
• If the rack rubs, jams, or won't seat properly, check the oven guides.

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heat Shield is an OEM part for Whirlpool wall ovens and ranges. It serves to insulate internal components from high temperatures generated during cooking cycles.

Causes of a bad heat shield failure include cracks or charring of the insulating material from prolonged exposure to intense heat over many years.

Symptoms of a bad heat shield include:

• Premature failure of electronic boards or wiring near openings
• Warping or deformation of surrounding plastic parts
• Temperature sensor errors or inconsistent oven operations
• Increased energy usage without adequate heat deflection

Replacing this OEM part sustains reliable performance and extends the life expectancies of surrounding parts. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore wall ovens.
