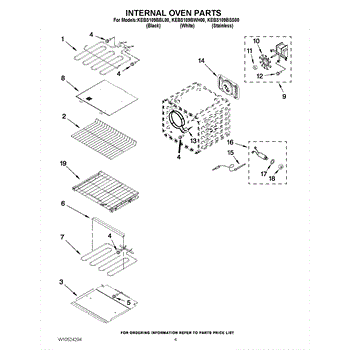

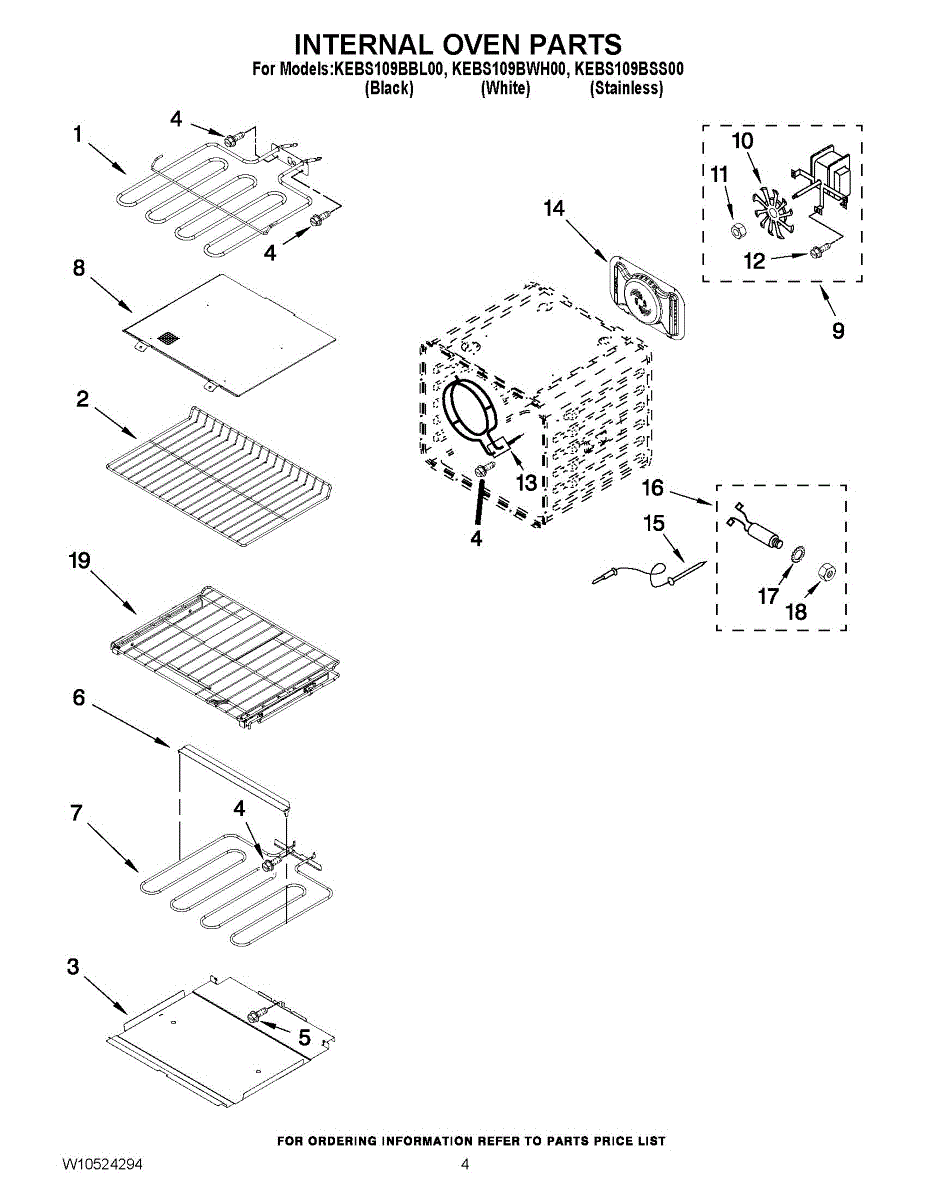

Parts for Kitchenaid KEBS109BBL00: 03 - Internal Oven Parts

This broil element provides the intense top heat your electric oven needs for broiling and finishing dishes. Replacing a failed element restores consistent top browning when the broiler no longer heats or heats unevenly.

• Heats from the top of the oven cavity during broil to sear and brown foods
• Replaces a burned-out, shorted, or physically damaged element
• Symptoms: broiler won't heat, intermittent heating, uneven top browning, or visible blistering/breaks

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove oven racks; support the element while removing mounting screws and gently pull it forward to access terminals
• Transfer wires one at a time to the new element; ensure tight connections and that terminals do not touch metal surfaces; restore power and test broil

This replacement oven rack restores a safe, level surface for cookware inside your oven. It slides on the side rails to let you set the rack at the desired height and replace a bent, missing, or stuck rack.

• Provides a sturdy, level platform for pans, sheets, and dishes during baking or broiling
• Adjusts to multiple positions by sliding on the oven's side rails
• Common fix for racks that are warped, sagging, corroded, or no longer slide properly
• Helps prevent tipping by restoring a straight, properly fitting rack

• Allow the oven to cool completely and ensure all controls are off before servicing
• Pull the old rack forward to the stop, lift the front slightly to clear the stops, and remove
• Align the new rack with the desired guide rails, insert the rear first, and slide fully in
• Verify the rack sits level and engages the stops before use

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heat Shield is an OEM part for Whirlpool wall ovens and ranges. It serves to insulate internal components from high temperatures generated during cooking cycles.

Causes of a bad heat shield failure include cracks or charring of the insulating material from prolonged exposure to intense heat over many years.

Symptoms of a bad heat shield include:

• Premature failure of electronic boards or wiring near openings
• Warping or deformation of surrounding plastic parts
• Temperature sensor errors or inconsistent oven operations
• Increased energy usage without adequate heat deflection

Replacing this OEM part sustains reliable performance and extends the life expectancies of surrounding parts. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore wall ovens.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface element replaces a damaged or worn cooktop burner to restore even, high-heat cooking performance. Designed for electric ranges, it provides a reliable heating zone for pots and pans. What it does:

• Heats cookware for boiling, frying and simmering when energized
• Replaces an element that fails to heat, heats intermittently, or shows burn marks
• Provides consistent surface temperature across the cooking zone
• Matches the OEM shape and wattage for proper fit and performance

• Disconnect power to the range at the breaker before servicing
• Handle the element and surrounding ceramic/glass carefully to avoid cracking
• Inspect and reuse or replace the support receptacle/connector if damaged

This convection baffle directs hot airflow inside the oven for more even cooking and protects the convection fan assembly. Replaces a damaged or missing baffle to restore proper air distribution and reduce rattling. What it does

• Channels hot air from the convection fan for consistent baking and roasting
• Helps keep food and debris away from the fan and heating elements
• Reduces fan noise caused by loose or broken baffles
• Can improve temperature consistency when the convection system is in use

• One convection baffle

• Always disconnect power (unplug or switch off circuit breaker) before servicing the appliance
• Remove oven racks and any interior trim needed to access the fan housing for safe installation
• Inspect mounting points and replace any stripped fasteners for a secure fit

Color: brown. Its total length is about 25 inches.

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.
