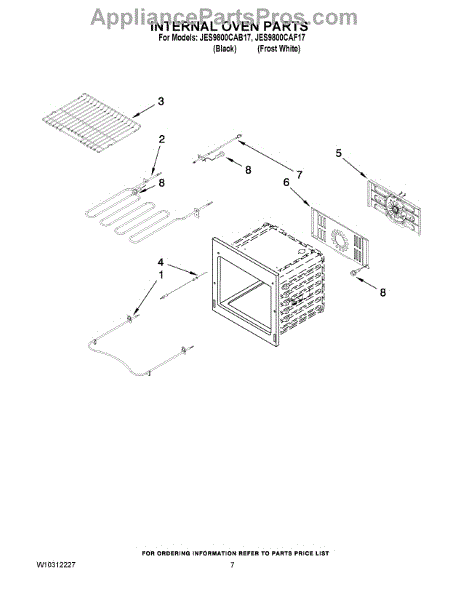

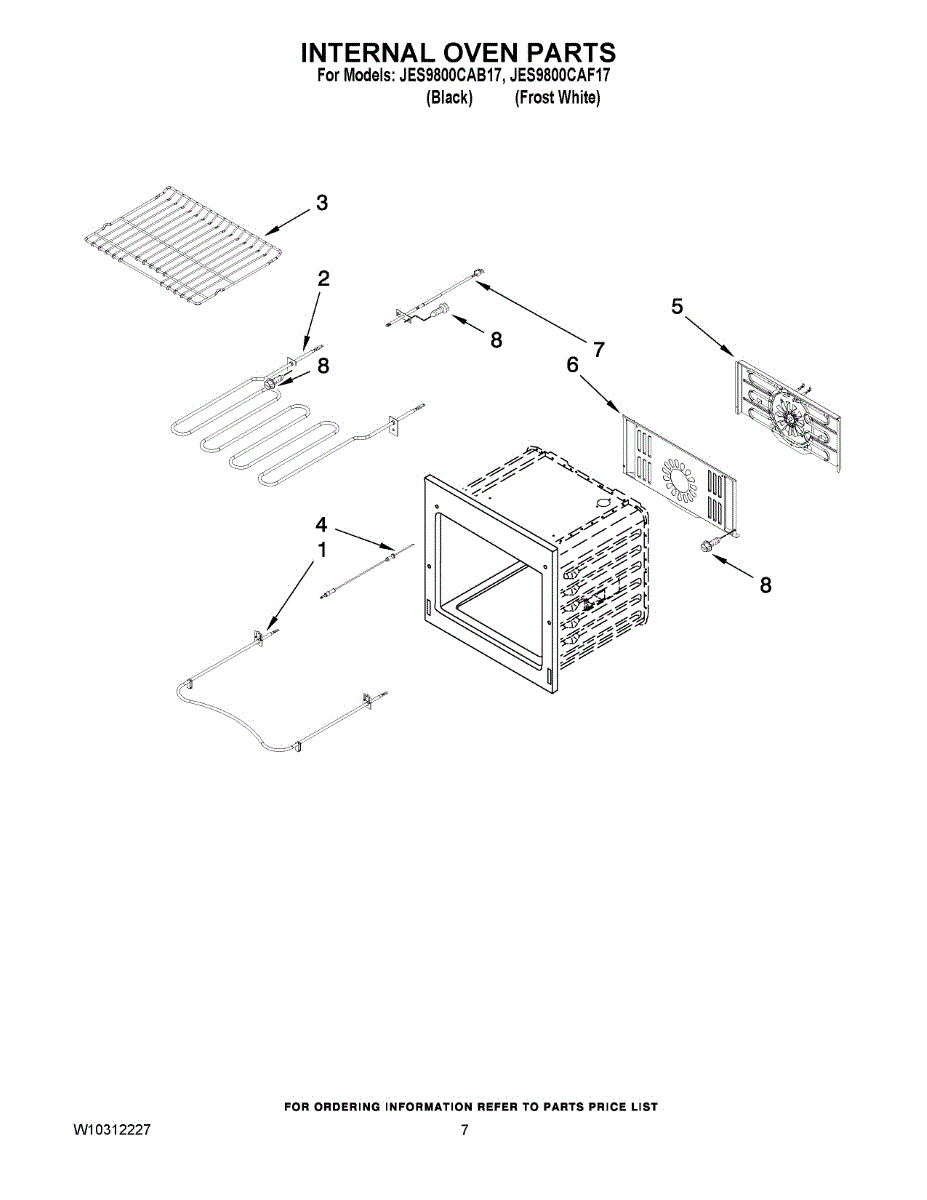

Parts for Maytag JES9800CAF17: 05 - Internal Oven Parts

Oven not heating or baking unevenly? The bake element generates heat at the bottom of your oven cavity. DIY-friendly repair—takes about 10 minutes.

If your broil function won't heat or brown food properly, a failed broil element is the likely cause. This upper heating element restores direct radiant heat.

Color: chrome. Measures about 23 inches wide by 16 inches deep.

This receptacle provides the appliance's electrical connection point, restoring a secure power feed and preventing intermittent or no-power issues. Use it to replace a damaged or worn connector for reliable operation. What it does:

• Restores the appliance's main power connection where the cord or harness plugs in
• Replaces cracked, melted, or loose receptacles that cause intermittent power
• Stops arcing or poor contact that can lead to shutdowns or overheating smells
• Helps ensure a firm, vibration-resistant electrical connection

• Disconnect all power before starting work to avoid shock or injury
• Verify wiring colors and terminal positions match the original before reconnecting
• Securely fasten the receptacle and strain-relieve the cord/harness to prevent movement

Convection baffle that directs airflow in your oven's convection system. Replace if cracked, warped, or damaged to restore proper air circulation.

Fix F1 error codes and temperature control issues with this oven temperature sensor. Takes about 15 minutes to install—just 2 screws and plug-in wiring.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
