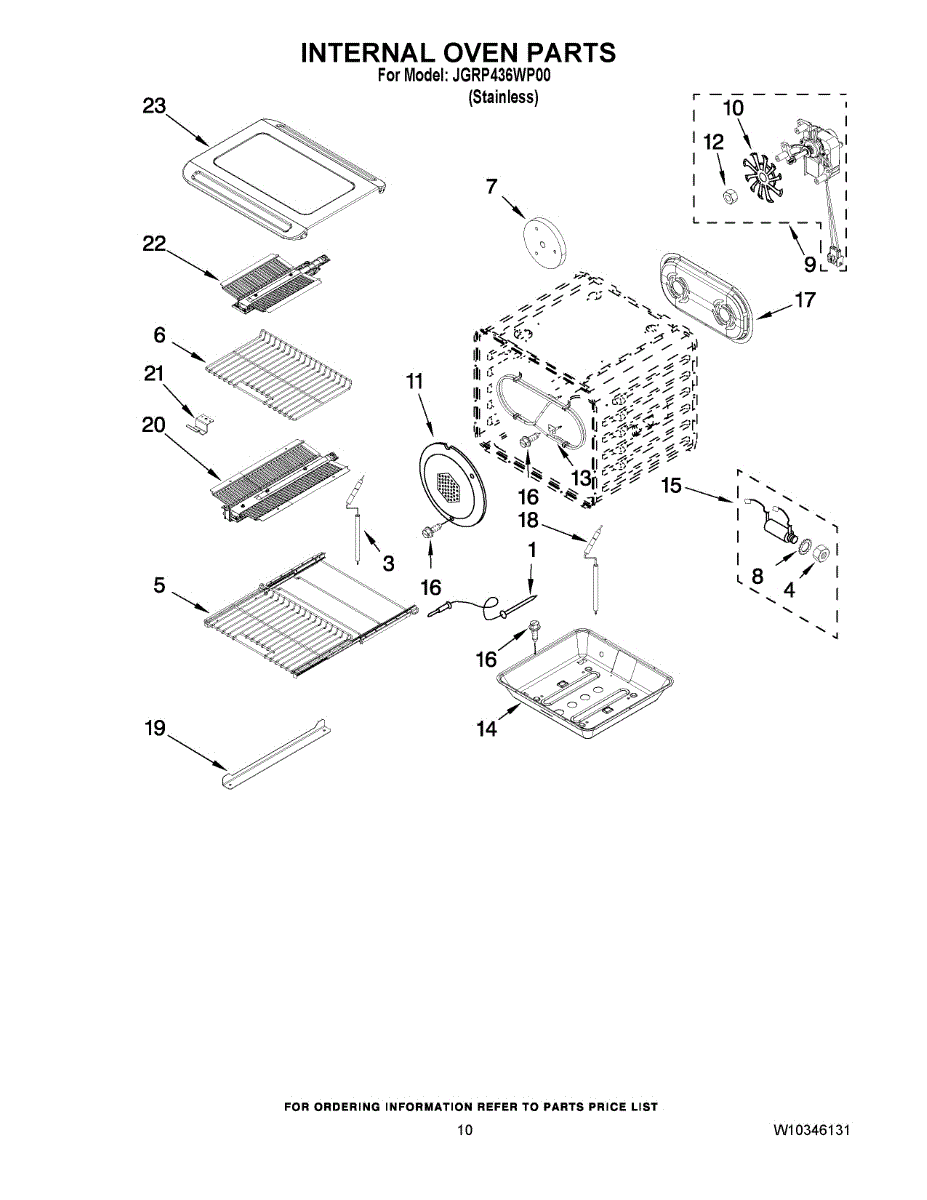

Parts for Maytag JGRP436WP00: 07 - Internal Oven Parts

Color: brown. Its total length is about 25 inches.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Surface Igniter is an OEM replacement part for Whirlpool ranges. It is responsible for igniting the gas in the burner

A bad surface igniter can occur due to normal wear and tear, electrical malfunctions, or damage caused by food spills or grease buildup. If you experience issues such as the burner not igniting, weak or inconsistent flame, or a clicking sound without ignition, it may indicate a problem with the surface igniter.

Symptoms of a bad surface igniter include:

• Burner not lighting or taking a long time to ignite
• Weak or inconsistent flame
• Continuous clicking sound without ignition

Replace your faulty surface igniter with this genuine OEM Whirlpool part to restore your gas burner.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.

The Rack is an OEM part for Whirlpool ranges. Manufactured from heavy-duty steel, it provides a sturdy sliding shelf to support bakeware of all sizes during cooking cycles. With its precise leveling and sliding abilities, the rack allows for flexible use of the oven's full interior space.

Symptoms of a bad rack may include warping or sagging from prolonged heat exposure, dents or cracks along the surfaces from mishandling, or difficulties leveling or smoothly sliding in and out.

Symptoms of a bad rack include:

• Foods not baking evenly due to rack warping
• Rough sliding or rack getting stuck when lifting in/out
• Cracks or sharp edges presenting a safety risk
• Inability to bear the weight of standard baking items

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models.

This replacement fan motor restores proper airflow for your appliance's ventilation/cooling system so the unit can run efficiently and avoid overheating. Designed as a direct-fit replacement for the OEM fan motor part number shown. What it does

• Spins the blower/fan to circulate air across coils or through the appliance cabinet
• Helps maintain proper cooling and prevents overheating of components
• Can reduce or eliminate loud whine, grinding, or reduced airflow when failing
• Supports stable operation of compressors, condensers or exhaust systems

• Disconnect power to the appliance before starting any repair.
• Follow service manual instructions for access; remove panels/guards as needed.
• Handle the motor and connectors carefully; support any attached fan or housing during removal.
• After installation, verify proper fan rotation and unobstructed airflow before reassembling covers.

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Surface Igniter is an OEM replacement part for Whirlpool ranges. It is responsible for igniting the gas in the burner

A bad surface igniter can occur due to normal wear and tear, electrical malfunctions, or damage caused by food spills or grease buildup. If you experience issues such as the burner not igniting, weak or inconsistent flame, or a clicking sound without ignition, it may indicate a problem with the surface igniter.

Symptoms of a bad surface igniter include:

• Burner not lighting or taking a long time to ignite
• Weak or inconsistent flame
• Continuous clicking sound without ignition

Replace your faulty surface igniter with this genuine OEM Whirlpool part to restore your gas burner.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This broil burner supplies the top-down heat for gas ovens so you can brown and crisp foods under the broiler. It replaces a worn or damaged burner to restore even broiling performance and reliable ignition. What it does:

• Produces the concentrated heat needed for broiling and browning foods
• Directs gas flow and flame across the oven top for consistent broil results
• Commonly replaced when the broiler won't ignite, flame is weak, or cooking is uneven
• Works with the oven's gas valve and igniter to provide safe, reliable operation

• Turn off the gas supply and electrical power before starting work
• Only install if the part number and burner shape match your oven
• Inspect and replace any damaged gaskets or mounting hardware as needed

This bake burner is the oven's gas combustion component that produces the heat for baking and roasting. It restores reliable oven heating so you can cook and bake at the proper temperatures. What it does

• Provides the primary gas flame for the oven's bake function.
• Helps the oven reach and maintain baking temperatures.
• Resolves symptoms like no oven heat, weak or erratic bake flame, or oven not maintaining temperature.
• Works with the oven's ignition system and safety controls to light and sustain the burner.

• One bake burner assembly.

• Turn off gas supply and power to the appliance before beginning any work.
• Inspect ignition and burner ports for debris; clean or replace as needed for proper lighting.
• Follow the oven manufacturer's service instructions and local codes when reconnecting gas lines.

This broiler pan is the heat-safe tray used for broiling in the oven or broiler drawer. Replace a rusted, warped, or missing pan to maintain safe broiling and simpler cleanup by catching drippings.

• Holds food for broiling and supports correct placement under the broiler
• Collects drippings to help reduce flare-ups and smoke
• Restores safe use when the original pan is rusted, pitted, dented, or warped
• Seats on the designated rails/supports in the broiler drawer or compartment per model design

• Allow the appliance to cool completely; wear cut-resistant gloves
• Remove the broiler drawer or open the broiler compartment as your model requires
• Position the pan on the proper rails/supports and verify stable seating before use
• Follow your model's user guide for broiling setup and care
