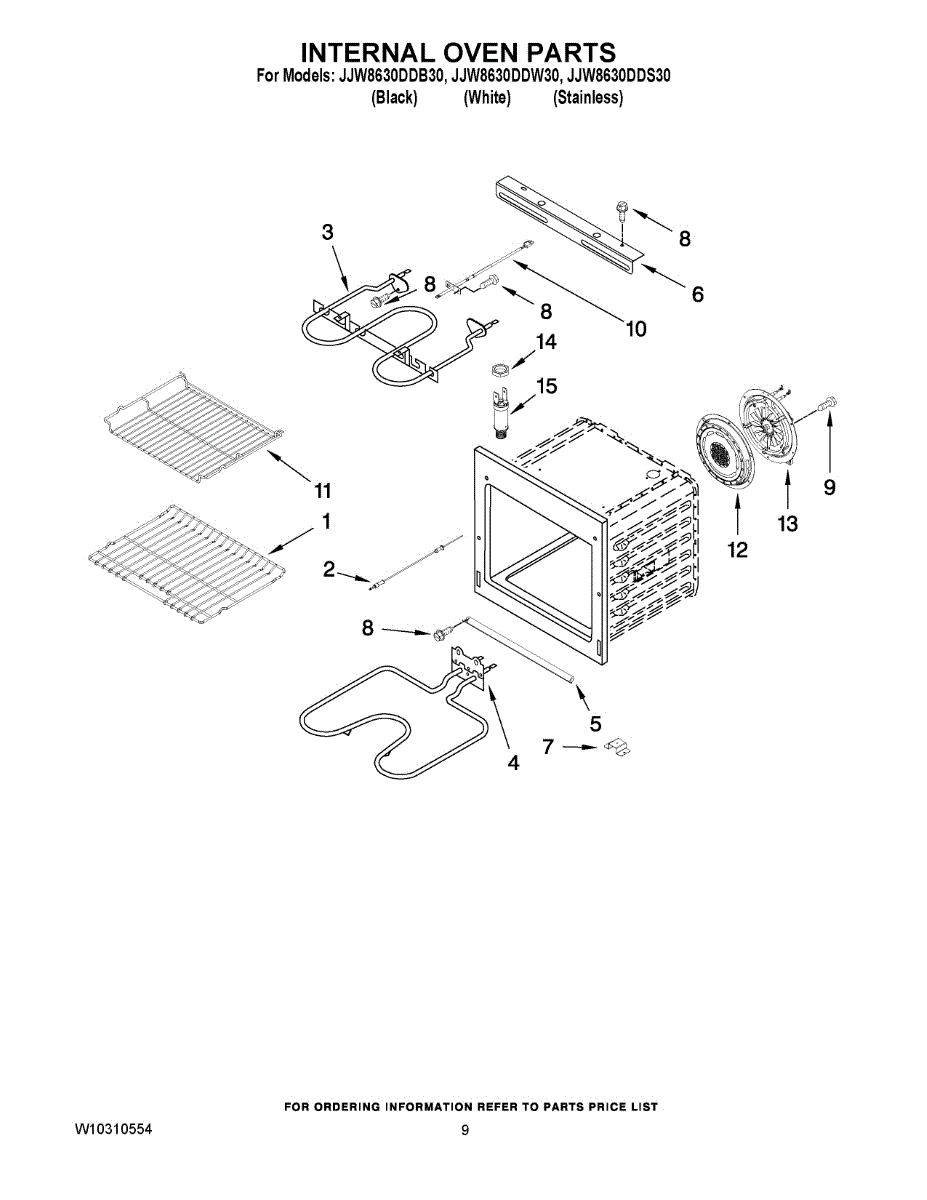

Parts for Maytag JJW8630DDS30: 05 - Internal Oven Parts

This oven rack restores a cooking surface inside compatible smart ovens so cookware sits level and slides smoothly. It replaces a missing, bent, or worn rack to help you use all oven positions safely and evenly. What it does:

• Provides a stable platform for pots, pans, and bakeware
• Slides into oven side supports for easy loading and removal
• Replaces warped or damaged racks that cause uneven cooking or unstable cookware
• Resists oven heat and common wear from regular use

• Allow the oven to cool completely before installing or removing the rack
• Slide the rack into the desired pair of side supports until seated; do not force or bend
• Use gloves or a towel to protect hands from sharp edges and heat residue
• If rack does not align or slide smoothly, inspect oven guides for damage before using

Color: dark brown. Its total length is about 21 inches.

Restore proper top heat to your oven with this broil element. It delivers the intense, even radiant heat needed for broiling, so foods brown and sear correctly when the original element fails or is damaged.

• Supplies high, direct heat from the top of the oven during Broil
• Common fix for no-broil or weak broiling performance
• Replace if the element is blistered, cracked, warped, or shows arcing
• Help resolve uneven browning or a tripped breaker caused by a shorted element

• Disconnect power at the breaker before servicing
• Remove oven racks; unfasten the element's mounting screws and gently pull it forward
• Support and disconnect the wires; attach them to the new element and position it
• Secure the element, ensure connections are tight and clear of metal, then restore power and test

The bake element is the lower heating element inside an electric oven cavity. Replacing a failed element restores consistent baking performance, proper preheat times, and reliable temperature control.

• Provides the primary bottom-oven heat source used in Bake mode
• Common failure symptoms: no heat during bake or very slow preheating
• Oven may not reach set temperature or cook evenly
• Visible damage may include blistering, cracks, or breaks in the element sheath

• Disconnect power at the breaker before servicing and allow the oven to cool completely
• Remove oven racks for access; take a photo of wiring to aid reassembly
• Remove mounting screws, gently pull the element forward, and transfer wires one at a time to the new element
• Ensure the element sits level and clear of cavity walls; do not overtighten screws; restore power and test Bake

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This meat probe is the oven temperature sensor that monitors internal food temperature to help you cook meat to the desired doneness. It delivers accurate readings to the oven control so timed and probe-based cooking cycles work properly. What it does:

• Senses internal food temperature and sends that reading to the oven control board
• Enables probe-based cooking and automatic shutoff when target temperature is reached
• Helps correct symptoms like probe-based cook cycles not ending or inconsistent doneness
• Replaces a damaged or intermittently-reading probe that prevents reliable temperature detection

• One meat probe/temperature sensor

• Disconnect power to the appliance before accessing the oven interior or wiring
• Allow the oven to cool fully and handle the probe and connector carefully to avoid wire strain
• Inspect the probe connector and socket for corrosion or damage before installing
