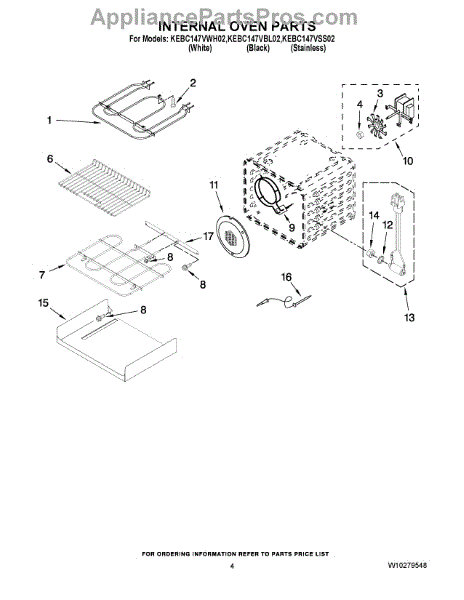

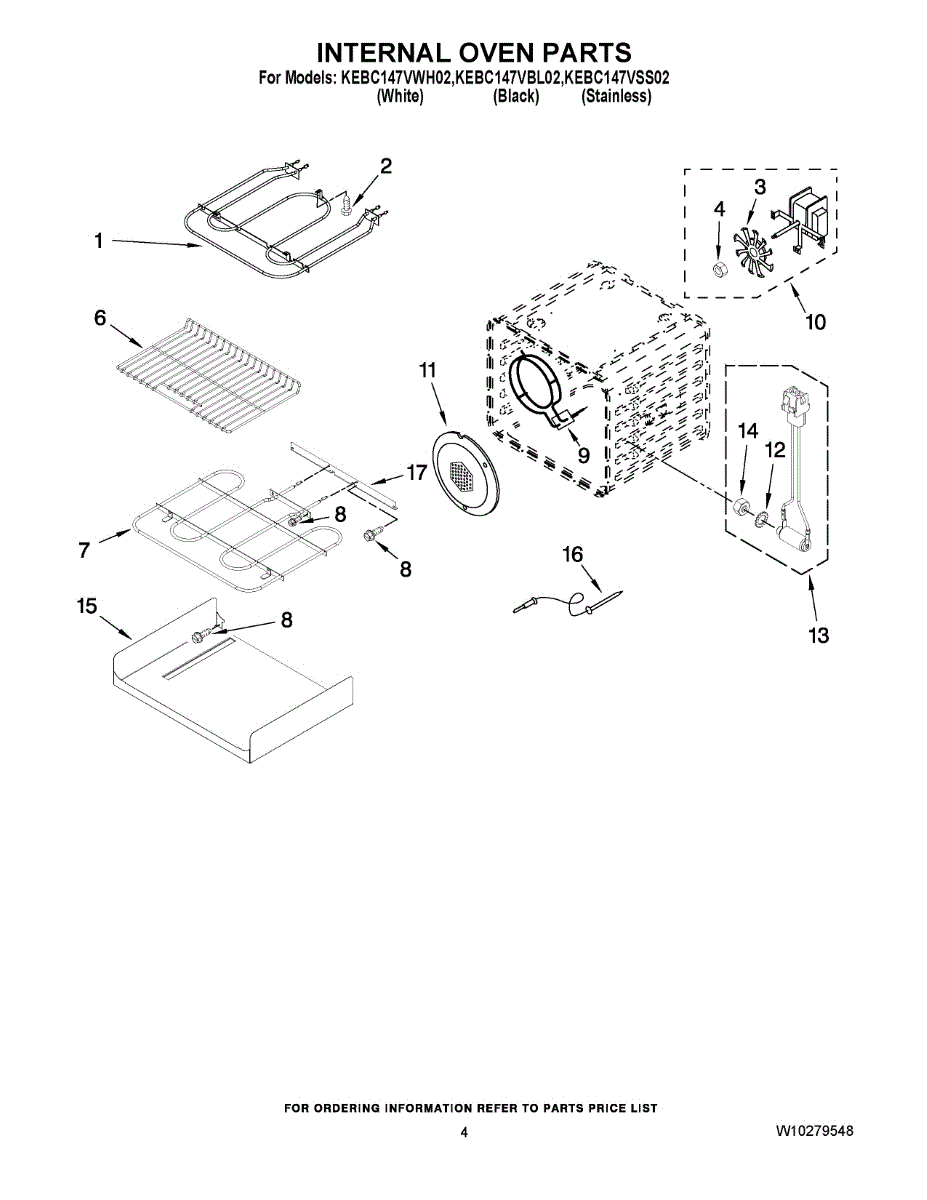

Parts for Kitchenaid KEBC147VBL02: 03 - Internal Oven Parts

Oven not browning or broiling? A faulty broil element won't heat up. Easy DIY fix—disconnect power, remove screws, swap wires. Video guide included.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Replaces a bent, rusted, or missing oven rack. Slides smoothly on cavity rails to provide stable, level support for pans during baking and roasting.

Oven not reaching temperature or taking too long to preheat? A failed bake element is often the cause. Moderate DIY repair, 1-2 hours with rear access.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Oven not heating evenly or convection mode not working? This rear convection element restores even baking and roasting. 20-minute DIY repair.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Replace your oven's cooling fan cover if it's cracked, broken, or missing. This protective cover installs over the cooling fan assembly to shield internal components.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

Replaces the bottom cover panel that protects your wall oven's hidden bake element. Needed when original is cracked, stained, warped, or damaged.
