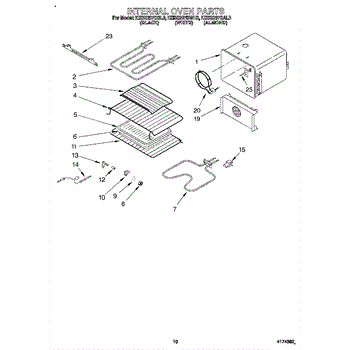

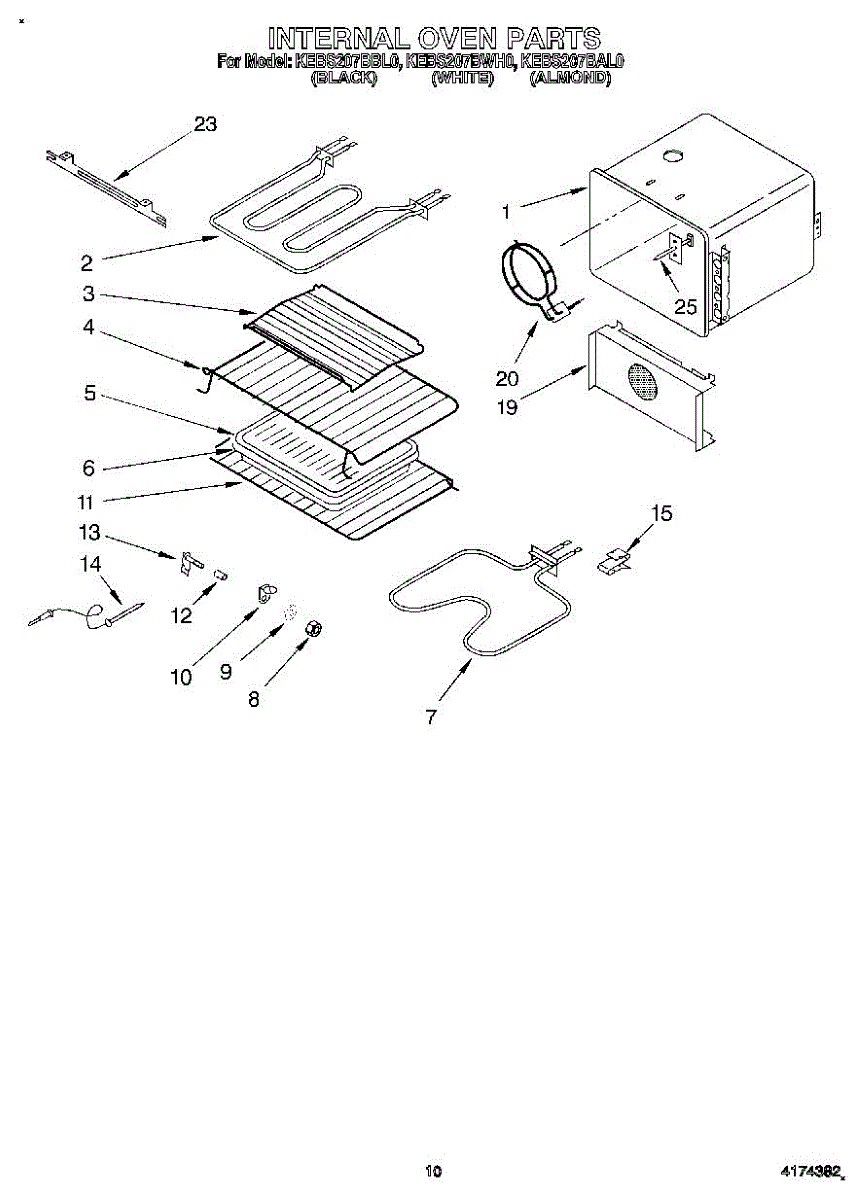

Parts for Kitchenaid KEBS207BAL0: 07 - Internal Oven Parts

Size: 10-32 x 1/2 inch.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

This part has been discontinued and is no longer available

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Size: 10-32 x 1/2 inch.

The bake element is the oven's primary lower heat source. Replacing a failed element restores proper preheating and even baking performance when the oven won't heat or struggles to maintain temperature during the bake cycle. What it does

• Provides the main heat for the bake cycle in electric ovens
• Common failure symptoms: no heat on bake, very slow preheat, or uneven baking
• Visible damage such as blistering, cracks, or burn spots on the element indicates replacement is needed
• Helps the oven reach and hold set temperature when functioning correctly

• 1 bake element

• Disconnect power at the breaker before servicing to prevent electrical shock
• Remove oven racks; access the element mounting screws from inside the oven cavity
• Carefully pull the element forward, support the wires, and transfer the connectors one at a time to avoid losing them behind the liner
• Ensure terminals are fully seated; do not overtighten mounting screws, then restore power and test bake

Meat temperature probe.

Size: 8 x 3/8 inch.

Size: 10-32 x 1/2 inch.

Size: 6 inches long. Includes ceramic wire connectors.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.
