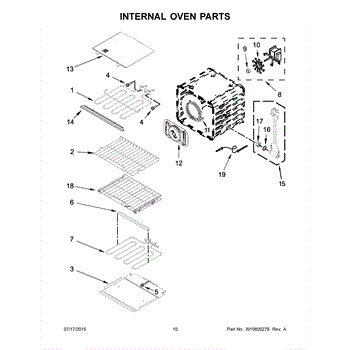

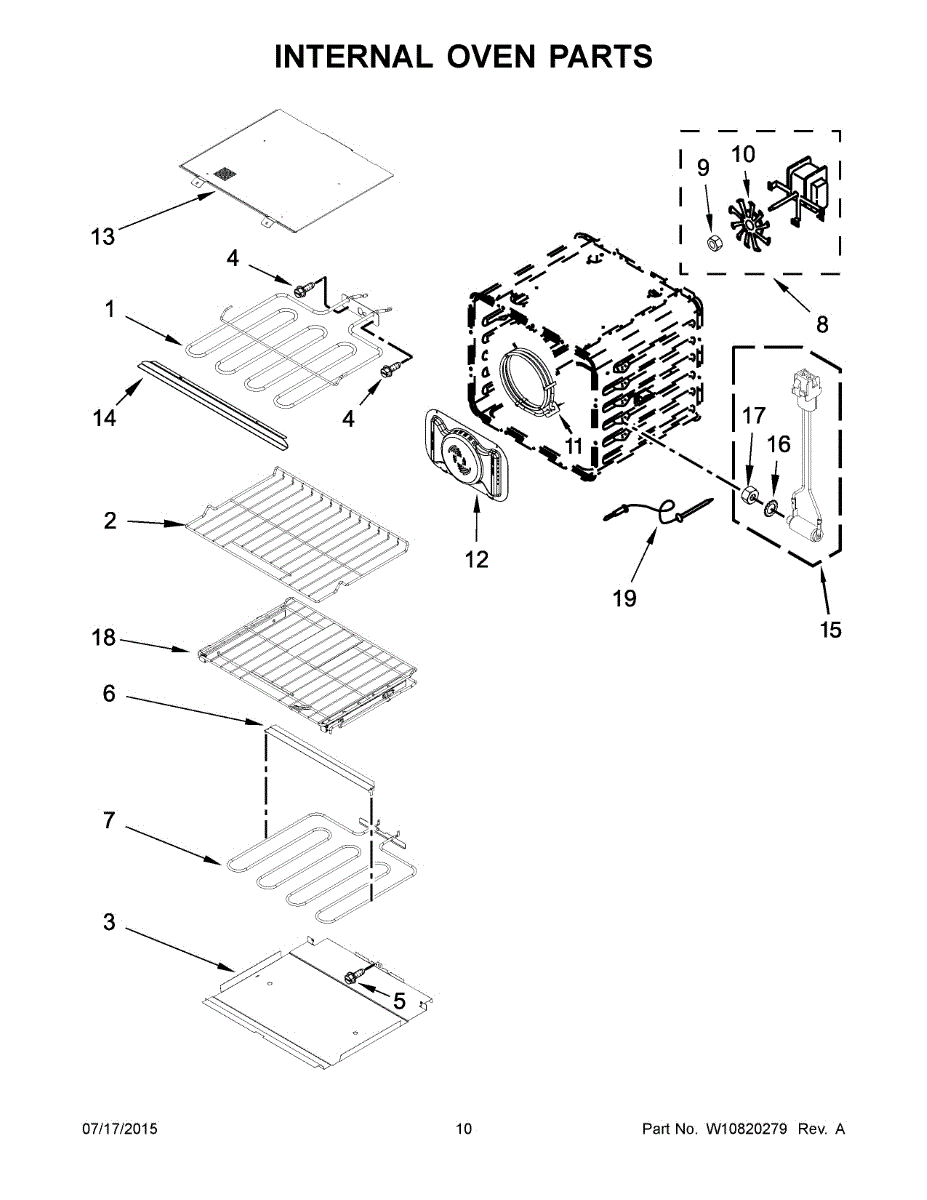

Parts for Kitchenaid KODE500EBS01: 06 - Internal Oven Parts

This broil element provides the intense top heat your electric oven needs for broiling and finishing dishes. Replacing a failed element restores consistent top browning when the broiler no longer heats or heats unevenly.

• Heats from the top of the oven cavity during broil to sear and brown foods
• Replaces a burned-out, shorted, or physically damaged element
• Symptoms: broiler won't heat, intermittent heating, uneven top browning, or visible blistering/breaks

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove oven racks; support the element while removing mounting screws and gently pull it forward to access terminals
• Transfer wires one at a time to the new element; ensure tight connections and that terminals do not touch metal surfaces; restore power and test broil

This replacement oven rack restores a safe, level surface for cookware inside your oven. It slides on the side rails to let you set the rack at the desired height and replace a bent, missing, or stuck rack.

• Provides a sturdy, level platform for pans, sheets, and dishes during baking or broiling
• Adjusts to multiple positions by sliding on the oven's side rails
• Common fix for racks that are warped, sagging, corroded, or no longer slide properly
• Helps prevent tipping by restoring a straight, properly fitting rack

• Allow the oven to cool completely and ensure all controls are off before servicing
• Pull the old rack forward to the stop, lift the front slightly to clear the stops, and remove
• Align the new rack with the desired guide rails, insert the rear first, and slide fully in
• Verify the rack sits level and engages the stops before use

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

• Excessive smoke or moisture left in the oven after cooking
• Oven taking longer to preheat and cook due to poor air circulation
• Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This surface element replaces a damaged or worn cooktop burner to restore even, high-heat cooking performance. Designed for electric ranges, it provides a reliable heating zone for pots and pans. What it does:

• Heats cookware for boiling, frying and simmering when energized
• Replaces an element that fails to heat, heats intermittently, or shows burn marks
• Provides consistent surface temperature across the cooking zone
• Matches the OEM shape and wattage for proper fit and performance

• Disconnect power to the range at the breaker before servicing
• Handle the element and surrounding ceramic/glass carefully to avoid cracking
• Inspect and reuse or replace the support receptacle/connector if damaged

This convection baffle directs hot airflow inside the oven for more even cooking and protects the convection fan assembly. Replaces a damaged or missing baffle to restore proper air distribution and reduce rattling. What it does

• Channels hot air from the convection fan for consistent baking and roasting
• Helps keep food and debris away from the fan and heating elements
• Reduces fan noise caused by loose or broken baffles
• Can improve temperature consistency when the convection system is in use

• One convection baffle

• Always disconnect power (unplug or switch off circuit breaker) before servicing the appliance
• Remove oven racks and any interior trim needed to access the fan housing for safe installation
• Inspect mounting points and replace any stripped fasteners for a secure fit

The Heat Shield is an OEM part for Whirlpool wall ovens and ranges. It serves to insulate internal components from high temperatures generated during cooking cycles.

Causes of a bad heat shield failure include cracks or charring of the insulating material from prolonged exposure to intense heat over many years.

Symptoms of a bad heat shield include:

• Premature failure of electronic boards or wiring near openings
• Warping or deformation of surrounding plastic parts
• Temperature sensor errors or inconsistent oven operations
• Increased energy usage without adequate heat deflection

Replacing this OEM part sustains reliable performance and extends the life expectancies of surrounding parts. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore wall ovens.

This jack probe is a small electrical connector that provides a secure signal or power connection between wiring harnesses and appliance components, helping restore reliable circuit contacts and proper function. What it does

• Provides a stable electrical connection between harness leads and a mating component or board
• Restores intermittent or open circuits that can cause component failure or erratic operation
• Commonly linked to symptoms such as intermittent power to a component, failures to start, or fault codes related to open connectors
• Simple replacement cures connection-related faults when the original connector is damaged or corroded

• One jack probe electrical connector

• Always unplug the appliance or disconnect power at the breaker before servicing
• Verify connector orientation and secure seating; improper seating may cause intermittent faults
• Inspect mating pins and surrounding wiring for damage before installing; replace any damaged wiring or terminals

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.

This sliding oven rack restores smooth, stable access to cookware in your range or wall oven. Replace a bent, missing, or sticky rack so pans glide out easily for checking, basting, and safer removal of hot dishes.

• Provides a gliding shelf for loading and unloading cookware
• Helps improve access to dishes without reaching deep into a hot oven
• Common signs it's needed: rack won't slide smoothly, binds or sticks, is warped/bent, or is missing
• Restores full oven capacity and convenient use of designated rack positions

• Allow the oven to cool completely before installing; wear gloves to protect hands
• Remove the old rack; identify the correct rail position in your oven cavity
• Insert the new rack in the guides with the proper front/back orientation
• Slide in and out to confirm smooth travel before heating the oven; for any self-cleaning precautions related to racks

Color: brown. Its total length is about 25 inches.
