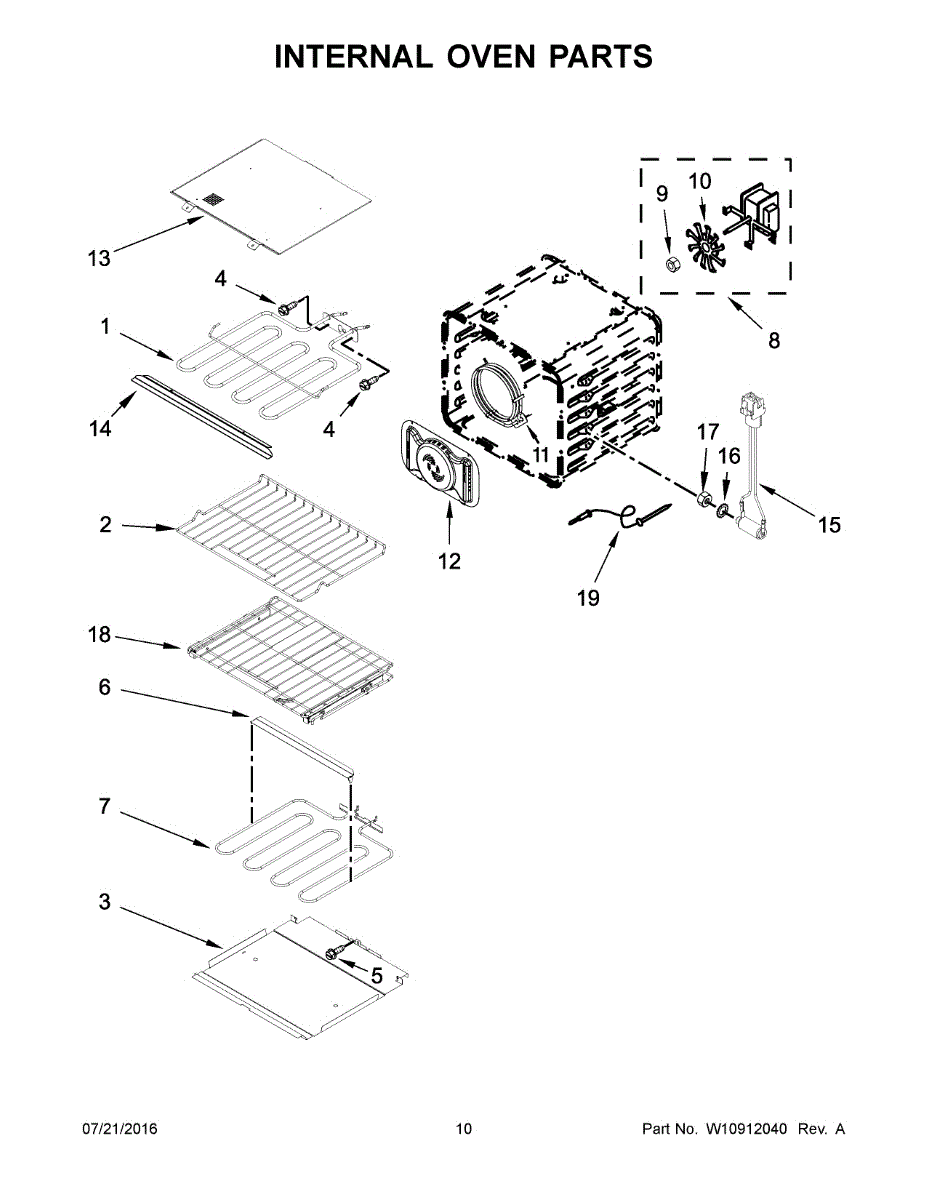

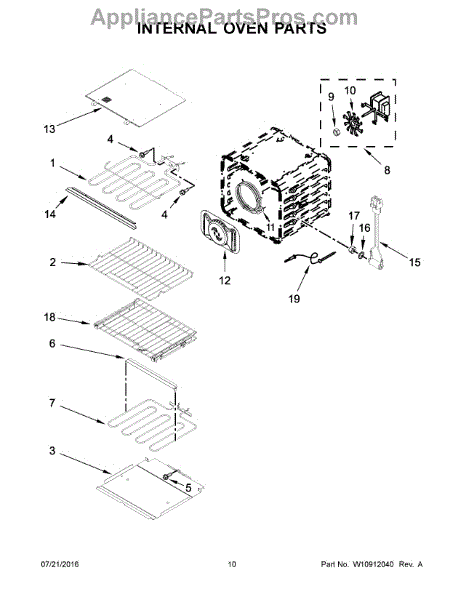

Parts for Kitchenaid KODE500EBS02: 06 - Internal Oven Parts

Broiler not heating or browning unevenly? This upper broil element restores intense top heat for searing and finishing. Moderate DIY repair.

Replace your bent, missing, or stuck oven rack with this sturdy metal shelf. Slides on side rails for adjustable height positioning inside the cavity.

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a metal crossbar support bracket that holds the hidden bake element in place beneath the oven floor. It ensures the bake element remains properly positioned for even heat distribution. Replace this bracket if the bake element is sagging, misaligned, or not heating evenly due to a broken or bent support.

Fix slow preheating or uneven baking with a new bake element. This heating component generates consistent heat throughout your oven cavity. DIY-friendly repair.

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

• Excessive smoke or moisture left in the oven after cooking
• Oven taking longer to preheat and cook due to poor air circulation
• Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This is a circular convection heating element that works in conjunction with the convection fan to circulate hot air evenly throughout the oven cavity for more uniform baking and roasting. If your oven is not heating properly in convection mode, cooking unevenly, or the convection feature has stopped working entirely, this element may have burned out or broken and needs replacement.

Fixes rattling noises and uneven cooking in convection ovens. This baffle directs airflow from the fan for consistent baking. Quick DIY repair.

Heat shield insulates internal wall oven components from high cooking temperatures. Replace if cracked, charred, or damaged from heat exposure.

Heat shield for wall ovens and microwave combos. Protects internal components from excessive heat. Replace if cracked, warped, or missing during repairs.

This jack probe is a small electrical connector that provides a secure signal or power connection between wiring harnesses and appliance components, helping restore reliable circuit contacts and proper function. What it does

• Provides a stable electrical connection between harness leads and a mating component or board
• Restores intermittent or open circuits that can cause component failure or erratic operation
• Commonly linked to symptoms such as intermittent power to a component, failures to start, or fault codes related to open connectors
• Simple replacement cures connection-related faults when the original connector is damaged or corroded

• One jack probe electrical connector

• Always unplug the appliance or disconnect power at the breaker before servicing
• Verify connector orientation and secure seating; improper seating may cause intermittent faults
• Inspect mating pins and surrounding wiring for damage before installing; replace any damaged wiring or terminals

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

Sliding oven rack that glides smoothly for easy access to cookware. Replace bent, sticky, or missing racks to safely check and remove hot dishes.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.
