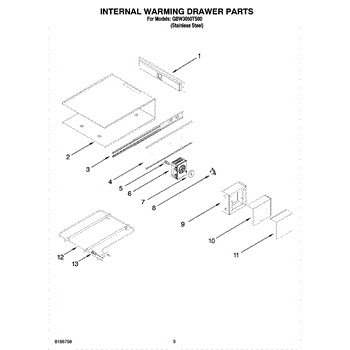

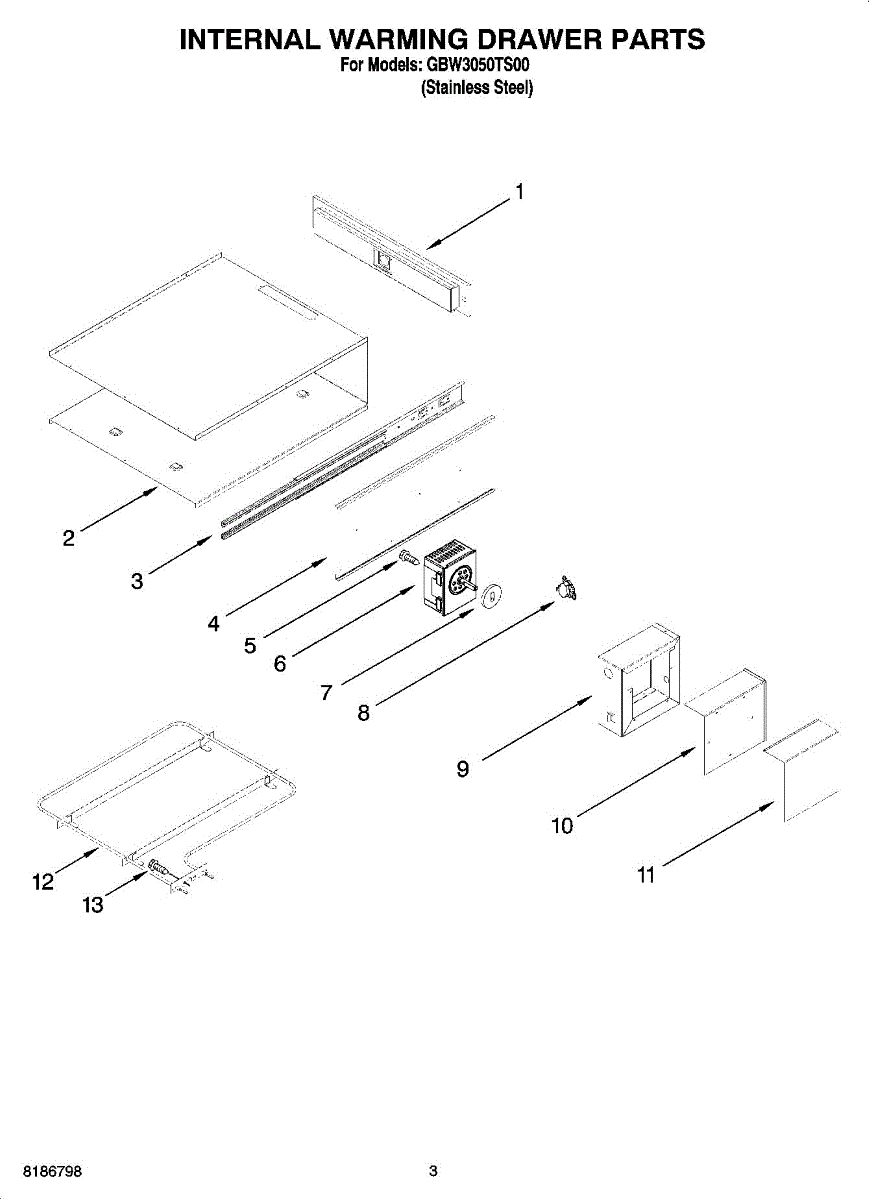

Parts for Whirlpool GBW3050TS00: 02 - Internal Warming Drawer Parts

This drawer slide assembly mounts to the refrigerator cabinet and supports the interior bin as it moves. Replacing a worn slide restores smooth, level drawer travel for easier access and reliable sealing.

• Supports and guides a refrigerator drawer so it glides in and out smoothly
• Attaches to the cabinet wall and interfaces with the drawer track
• Helps keep the drawer level and aligned to prevent binding or scraping
• Typical signs of failure: sticking drawer, sagging on one side, popping off track, or visible cracks in the rail

• Unplug the refrigerator and remove items from the affected drawer
• Pull out and remove the drawer (and shelf/glass if required for access)
• Remove mounting screws, swap the slide in the same orientation, and tighten securely
• Reinstall the drawer and verify smooth operation; use gloves and caution around glass and sharp edges

This thermal fuse stops power if an appliance overheats, helping prevent damage and unsafe operation. Use as a direct replacement when the original high-limit fuse has failed and the appliance will not operate normally. What it does:

• Opens the circuit when temperatures exceed safe limits, acting as a high-limit safety cutoff.
• Protects the appliance and home from overheating-related damage and hazards.
• Common symptoms of a blown thermal fuse: appliance won't heat, intermittent heating, or the unit fails to start.
• If the fuse blows, it often indicates an underlying issue—inspect heating elements, thermostats, and venting for faults.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Allow the appliance to cool, then access the fuse location; note wiring orientation and terminal connections for reassembly.
• Replace with the exact type of thermal fuse; do not bypass, jumper, or defeat the device.
• If the replacement fuse fails again, check for restricted venting, failed heating components, or faulty thermostats/controls.

This wire harness assembly routes power and control signals between components to restore proper electrical connections. It replaces a damaged or worn harness to help resolve power loss and intermittent operation. What it does:

• Delivers power and signal connections between control, motors, switches, and sensors.
• Restores reliable electrical continuity when old wires are frayed, broken, or corroded.
• Helps eliminate symptoms like no power to components, intermittent operation, or electrical shorts.
• Keeps wiring organized and properly routed to prevent chafing and accidental disconnection.

• One wire harness assembly as shown.

• Disconnect power to the appliance before starting any repairs to avoid shock.
• Ensure all connectors are fully seated and that wires are secured away from sharp edges and moving parts.
