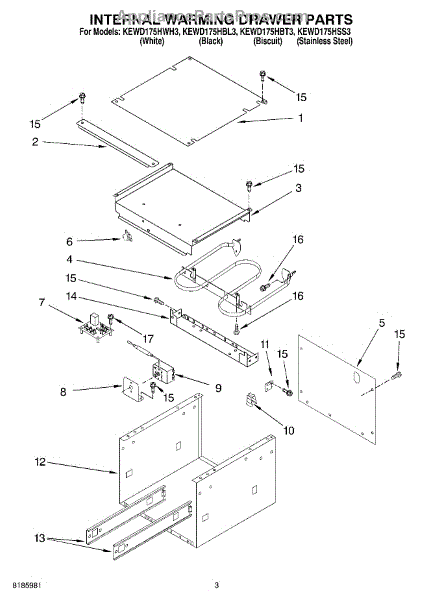

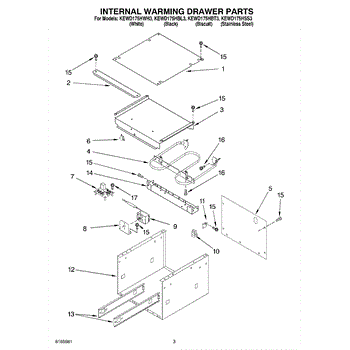

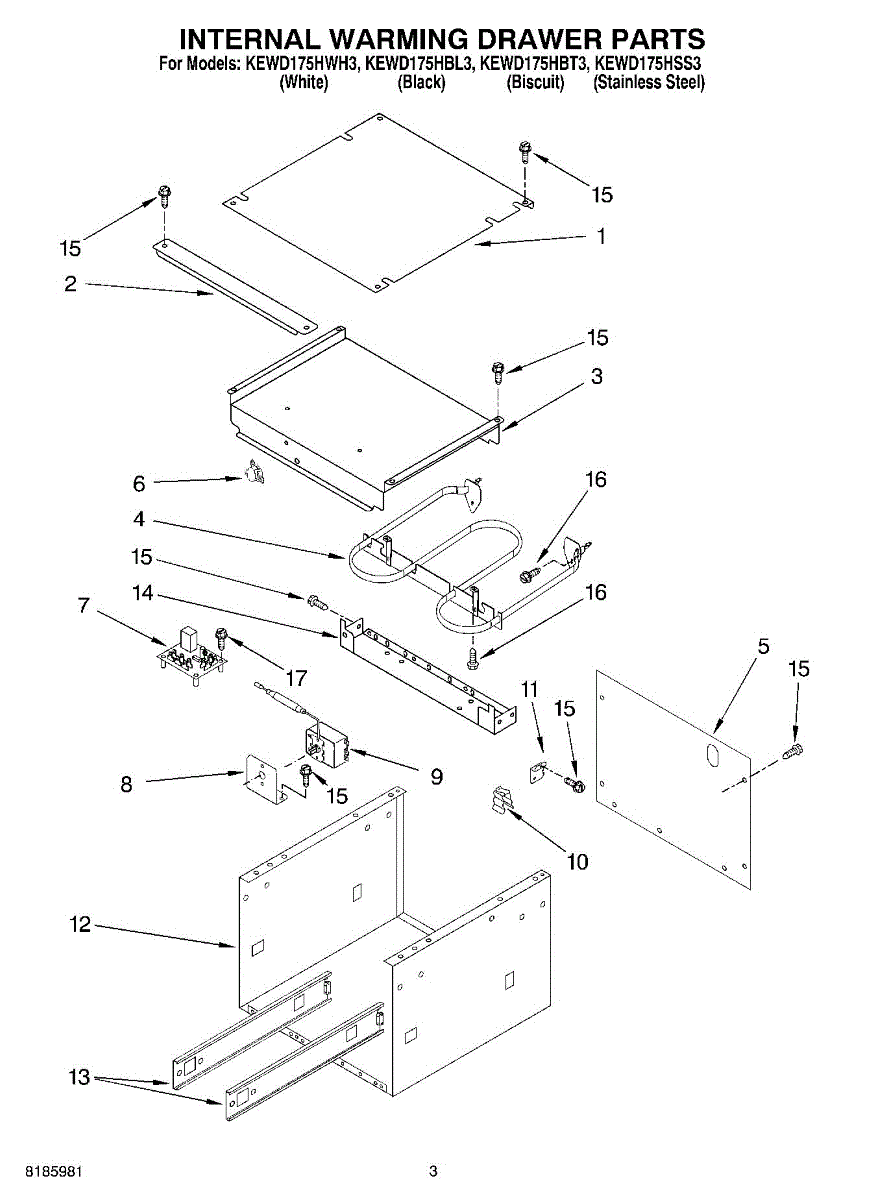

Parts for Kitchenaid KEWD175HBL3: 02 - Section Parts

The Broil Element is an OEM replacement part for Whirlpool ranges. It works to radiate intense heat from the top of the oven cavity, allowing for quick and effective broiling of foods placed directly underneath. The broil element relies on protective coatings to withstand high temperatures and insulated filaments to safely conduct electric current without damage.

Symptoms of a bad broil element include:

• Slow or ineffective broiling
• Uneven or lackluster browning of broiled foods
• The oven cavity not reaching high enough temperatures for broiling
• Ovens not functioning properly on the broil setting

Causes of a bad broil element can be deterioration of protective coatings over long-term use, damage to filaments from wear and tear, or burns/breaks from contact with other oven surfaces.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This upper SPST thermostat is a single-pole temperature switch that helps control heating by opening the circuit at a set temperature. It restores proper temperature cycling and acts as an over-temperature safety device. What it does:

• Opens/closes the heating circuit at its set temperature to regulate heat output.
• Functions as an upper-limit/safety thermostat to help prevent overheating.
• Common symptoms of failure: no heat, intermittent heating, or continuous heating despite controls.
• Used where an upper-temperature cutoff is required to maintain safe operation.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Compare wiring and mounting orientation to the original part before removal.
• Confirm failure with a multimeter (continuity check) before replacing the thermostat.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

A replacement mounting screw used to secure appliance panels and components. Restores a missing or stripped fastener so parts sit flush and stay in place for reliable operation. What it does

• Fastens panels, brackets, and trim to the appliance chassis
• Prevents rattling, loose panels, and misaligned parts when installed correctly
• Replaces missing or damaged screws to restore proper fit and function

• Disconnect power to the appliance before working on it
• Use the correct-size screwdriver or driver bit to avoid cam-out or stripping
• Install by hand until started, then snug; avoid over-tightening to prevent damage
• Keep removed hardware organized and compare to the replacement before installing
