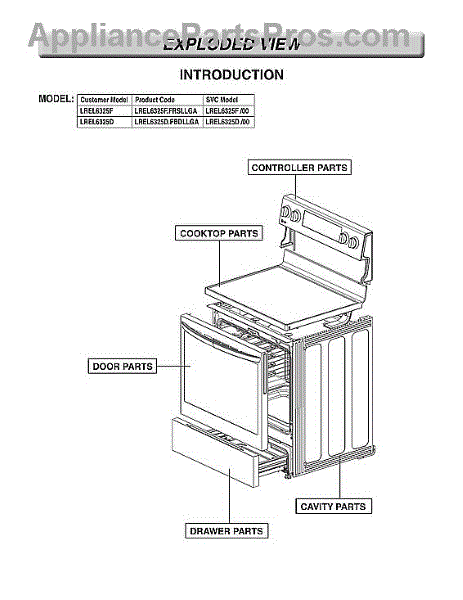

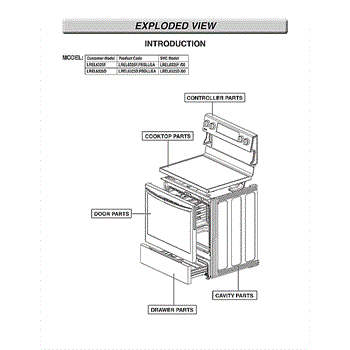

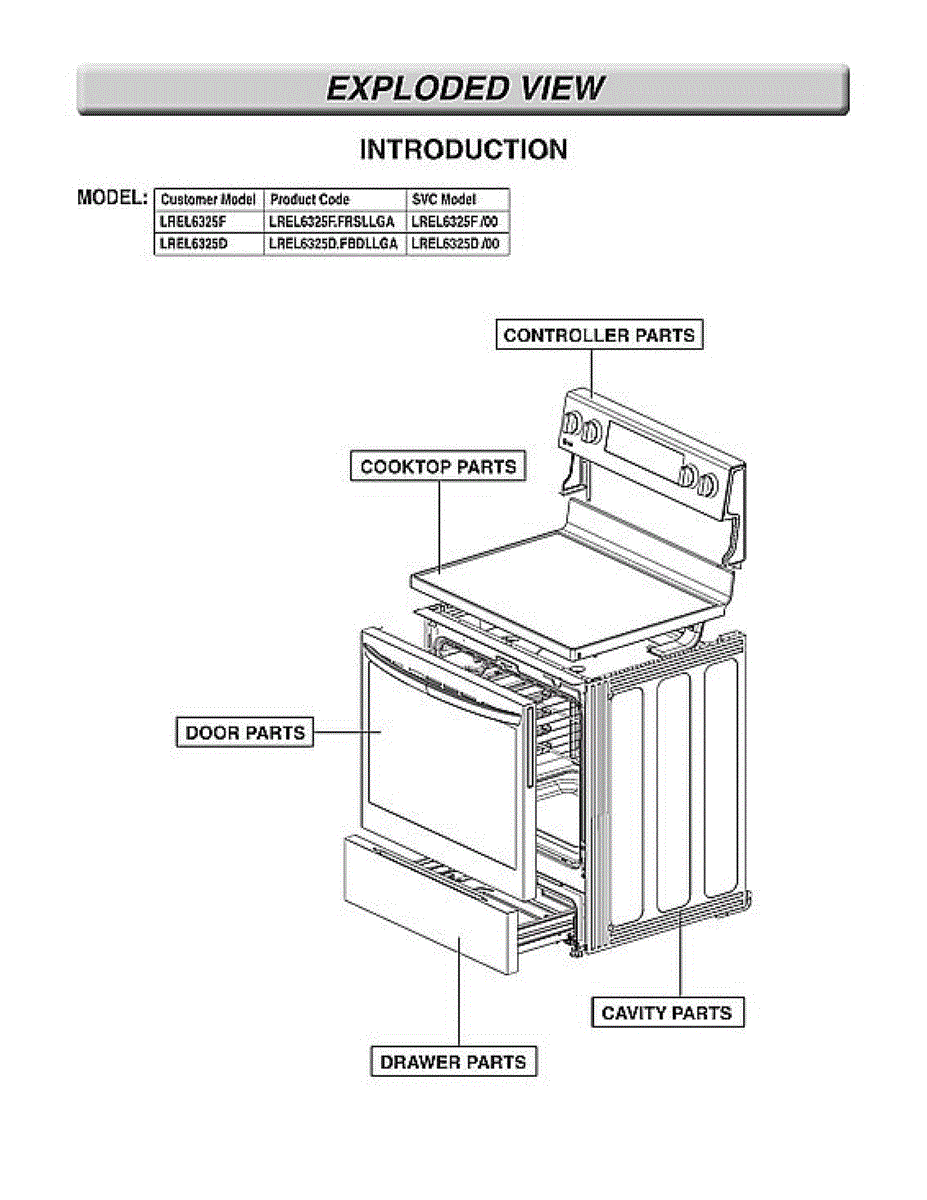

Parts for Lg LREL6325D/00: Introduction Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Insulator for electric and gas ranges. Installs between internal components to provide heat or electrical protection. Replace if cracked or missing.

This single wiring harness connects appliance components to transmit power and signals, restoring reliable electrical connections for proper operation. It replaces a worn or damaged harness to help resolve intermittent power or component failures. What it does

• Provides the electrical connection between internal components and control assemblies
• Restores lost or intermittent power to components caused by frayed or broken wires
• Helps eliminate intermittent operation, failure to start, or unresponsive controls linked to damaged wiring
• Ensures correct signal routing so motors, sensors, or lights operate as intended

• Disconnect power before servicing to avoid electric shock
• Inspect connectors and routing; match wire colors and connector shapes during replacement
• Secure harness away from heat sources and moving parts to prevent wear

Wire harness for electric and gas ranges. Connects electrical components inside your range. Replace if wires are damaged, frayed, melted, or connections are loose.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement washer that secures fasteners and distributes load at connection points in ranges and ovens. Needed when original is missing, worn, or damaged.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


Adjustable metal leveling foot that elevates and stabilizes your range. Mounts to the bottom of the unit. Replace if broken, worn, or missing.

Replacement handle for your range oven door. Installs on the front exterior of the door for opening and closing. Order if your original is cracked or broken.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Handle support bracket for electric and gas ranges. Secures and stabilizes the oven door handle. Replace if cracked, broken, or missing to restore proper support.

Replace worn or broken electric range door hinges to restore proper door alignment and smooth opening. Ensures tight seal and correct closure. Verify fit with your model number before ordering.

Support bracket for range oven door window glass. Secures and stabilizes the inner window panel. Replace if cracked, broken, or missing to restore door.

Fix an oven that won't heat, display that's blank, or oven that won't reach temperature. This main control board restores range function. Moderate DIY.

This ring guide supports and centers the microwave oven's glass turntable so it rotates smoothly for even cooking. It replaces a cracked or worn guide to reduce wobble and noisy operation. What it does:

• Centers and supports the glass tray so it turns evenly on the roller/drive assembly
• Helps keep the tray from slipping or wobbling during rotation
• Restores smooth, quiet turntable movement when the original guide is damaged
• Addresses symptoms such as a tray that wobbles, binds, or does not rotate properly

• One ring guide

• Disconnect power before servicing the appliance
• Remove the glass tray and roller assembly to access the guide
• Set the new guide into place on the turntable support/roller path and reinstall the roller and glass tray
• Handle the glass tray carefully; replace rollers or the drive coupling if worn

Burner won't turn off or runs too hot? This rotary switch controls heating elements and temperature settings. Straightforward DIY replacement.

Burner stuck on high or won't adjust temperature? This rotary switch behind the control knob regulates heat settings. DIY-friendly, 20-minute fix.

If your range settings won't register when you turn the dial, this rotary selector switch restores reliable cycle and function selection control.

The PCB Assembly is an OEM part for LG refrigerators. It stands for Printed Circuit Board, which is the main control board that manages and regulates various functions and components within the refrigerator.

Symptoms of a bad PCB Assembly include:

• The refrigerator not powering on or displaying any lights/indicators
• Specific components or features not functioning correctly (ice maker, dispenser, cooling, etc.)
• Error codes or warning lights illuminated on the control panel
• Strange noises or abnormal behavior from the refrigerator

Causes of a bad PCB Assembly can be related to electrical faults, such as short circuits, power surges, or component failures. Physical damage from impact, moisture exposure, or overheating can also contribute to the malfunction of the PCB.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Fix an electric range that won't heat or heats unevenly with this heating element assembly. Direct-fit replacement restores normal cooking temperatures.

This part is the base for the small simmer burner on gas cooktops. It supports the burner cap and channels gas to the flame ports to promote consistent ignition and an even, stable flame. What it does

• Serves as the burner base for the auxiliary/simmer position
• Aligns and supports the burner cap for even flame distribution
• Routes gas from the orifice to the burner ports
• Common symptoms include weak or uneven flames, difficulty lighting with a known-good spark, or a cap that won't sit flat

• One auxiliary burner holder

• Disconnect power and shut off the gas supply before servicing
• Remove the grate and burner cap; take out mounting screws and lift off the old holder
• Transfer/reuse the orifice, igniter electrode, gasket, and hardware as applicable; seat the new holder evenly and tighten fasteners without over-torquing
• Restore gas and power; verify proper ignition and flame

This glass turntable plate assembly supports and rotates dishes in the microwave for more even cooking and reheating. It replaces a cracked, chipped, or missing microwave glass plate to restore stable, centered rotation. What it does:

• Provides the rotating cooking surface that spreads heat more evenly across dishes.
• Supports plates, bowls and cookware while the turntable motor turns the tray.
• Replaces damaged, cracked or chipped glass that can cause uneven rotation or breakage.
• Helps reduce food splatter inside the microwave by containing spills on the removable plate.

• One glass turntable plate assembly

• Unplug the microwave before removing or installing the glass plate to avoid electrical shock.
• Place the roller ring and center the glass plate over the drive coupling so it sits flat and rotates freely.
• Handle glass with care; inspect for chips or cracks before use and do not use a damaged plate.
• Clean with warm, soapy water; avoid abrasive cleaners that can scratch the glass.

Replace your range motor cover if the motor assembly is exposed or damaged. This protective housing shields internal components from dust and debris.

Fix loose or rattling heating elements with this range heater bracket. Secures the heater assembly in proper alignment to prevent movement and damage.

Burner not heating? This radiant surface element restores heat to your electric range's smooth-top cooking surface. DIY-friendly replacement part.

This Radiant Surface Element is an OEM replacement part for LG electric ranges and cooktops. It is a high-power coil heating unit located below the cooktop surface that provides efficient, customizable heat for various cooking needs.

Causes of failure can be wear and damage to coiled filaments from prolonged heating cycles, cracking of ceramic insulators, or loose wiring connections suffering arcing or resistance over time.

Symptoms of a faulty element include:

• Slow or inadequate heating of cookware even on high settings
• Temperature fluctuations within the heating zone
• Burning or charring of spills and foods on the element itself
• Tripped circuit breakers obstructing range operation

This replacement is also compatible with some Kenmore models

This radiation heater is the element that delivers direct radiant heat for the microwave's grill/browning feature. Replacing a failed heater restores proper grilling performance and helps foods brown and crisp during grill or combination-cook settings. What it does:

• Supplies radiant heat for grill/browning and combo-cook modes
• Typically mounted at the top of the cavity to radiate heat downward
• Common failure symptoms: no heat in grill mode, element does not glow, poor or uneven browning
• Visual clues can include cracks, blistering, or burnt spots on the heater

• 1 radiation heater element

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge even when unplugged
• Access may require removing the outer case and interior shroud; beware of sharp metal edges
• Note wire positions before removal; route leads away from hot or moving parts during reassembly
• Verify secure mounts and connections before testing the grill function

Rubber bumper grommet for electric and gas ranges. Replaces cracked, worn, or missing grommets that cushion and support range components.

Replace your cracked, warped, or missing range oven rack. Installs inside the oven cavity to support cookware during baking, roasting, and broiling.

Fix rattling or misaligned range components with this fixing holder bracket. Secures internal parts to restore proper positioning and quiet operation.

The Switch is an OEM part for LG ovens. This switch is responsible for turning the oven light on and off when the door is opened and closed. It ensures that the oven light operates correctly, providing visibility inside the oven cavity when the door is opened.

A bad oven door light switch can occur due to electrical issues, wear and tear, or other internal malfunctions. If you notice symptoms such as the oven light not turning on or off when the door is opened or closed, it may be time to replace the light switch.

Symptoms of a bad switch include:

• Oven light not turning on when the door is opened
• Oven light not turning off when the door is closed

Ensure proper function in your LG oven by replacing the faulty switch with this genuine OEM part.

This LG replacement part is also compatible with select Kenmore models.


This AC fan motor circulates air inside the refrigerator to help maintain even temperatures and efficient cooling. Replaces a failed or noisy motor to restore proper airflow and prevent warm spots or frost buildup. What it does:

• Spins the evaporator/condenser fan blades to move air across coils for cooling
• Restores airflow when the fan has stopped running or runs intermittently
• Reduces noise if the original motor is shaky, grinding, or vibrating
• Helps prevent temperature fluctuations and excessive frost/ice buildup

• Disconnect power to the appliance before attempting service
• Handle wiring and connectors carefully; note connector locations before removal
• Motor mounts and fan blade hardware may need to be reused; keep screws and brackets together
• Test operation after installation and verify correct airflow direction

Replace a faulty wiring harness if your range has intermittent power, non-responsive controls, or error codes. Restores electrical connections.

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Charcoal filter removes cooking odors and smoke in recirculating range hoods. Replace every 6 months for optimal air quality. Verify fit with model number.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Fixes uneven baking and noisy oven operation. This convection fan assembly circulates hot air for consistent cooking. Moderate DIY repair restores airflow.

Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fix uneven heating or loose heating elements with this electric range heater bracket. Secures the bake or broil element in proper position for consistent cooking.

Fix range power issues or control board failures with this terminal block connector. Provides secure wire connections for electrical components. Moderate DIY repair.

Halogen oven light bulb illuminates your range interior for monitoring food while cooking. Replace when bulb burns out or flickers. Verify fit with your model.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

Oven won't brown or crisp food on top? Replace the broil element. This upper heating component restores efficient broiling in electric ranges.

Oven won't heat or reach temperature? A failed bake element causes inconsistent temps and uneven cooking. Direct replacement, moderate DIY repair.

Seals your range door to maintain stable temperatures and prevent air leaks. Replace when worn, cracked, or no longer creating an airtight seal.

This sheath heater is the electric element that delivers radiant heat for the unit's heating cycles, such as grill/broil or convection. Replacing a failed heater restores proper temperature performance and consistent results.

• Generates radiant heat when energized to help reach and maintain set temperature
• Supports grill/broil or convection functions for browning and even cooking
• Common failure signs: no heat in those modes, extended preheat times, uneven results, tripped breaker, or a visibly blistered/broken element
• Restores reliable heating performance when the original element is open or shorted

• Disconnect power and let components cool before servicing
• If servicing a microwave, remember high-voltage components can retain a dangerous charge; discharge the capacitor and consider service if you're not experienced
• Handle the element by its brackets; avoid bending the sheath or stressing terminals
• Move wires one at a time to the new part and verify element continuity with a multimeter before reassembly

Fixing frame for electric ranges. Secures and aligns internal components. Replace if cracked, bent, or damaged during service to restore proper fitment.

Outer front panel that restores your range's appearance. Replaces cracked, dented, or discolored original panel. Installs on the front exterior.

Replacement drawer front panel for electric ranges. Installs on the storage or warming drawer. Needed when the original panel is cracked, dented, or damaged.

Rubber foot pad that supports and stabilizes your range on the floor. Replace if cracked, broken, worn, or missing to keep your appliance level.

This idler bracket mounts the idler pulley or roller in your appliance's tensioning system, keeping a belt or cable aligned and properly tensioned for consistent operation. A bent or worn bracket can cause noise, slippage, or loss of motion.

• Secures the idler pulley/roller in the correct position
• Maintains proper belt/cable tension and alignment
• Helps reduce squealing or squeaking from friction/misalignment
• Can address belts/cables coming off or intermittent movement in the drive mechanism

• Disconnect power; also shut off gas or water before servicing
• Access the tensioner area and note the belt/cable routing and spring orientation
• Relieve tension, remove the old bracket, and transfer the pulley/roller and any spring or hardware as required
• Reinstall the bracket, ensure smooth free movement, route belt/cable correctly, and test operation

Storage drawer for electric and gas ranges. Installs at the bottom of your range for kitchen utensil storage. Replace if cracked, broken, or missing.

Range storage drawer rail guide directs adjustable drawer movement in and out of position. Replace if clips are broken, warped from heat, or damaged.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.
