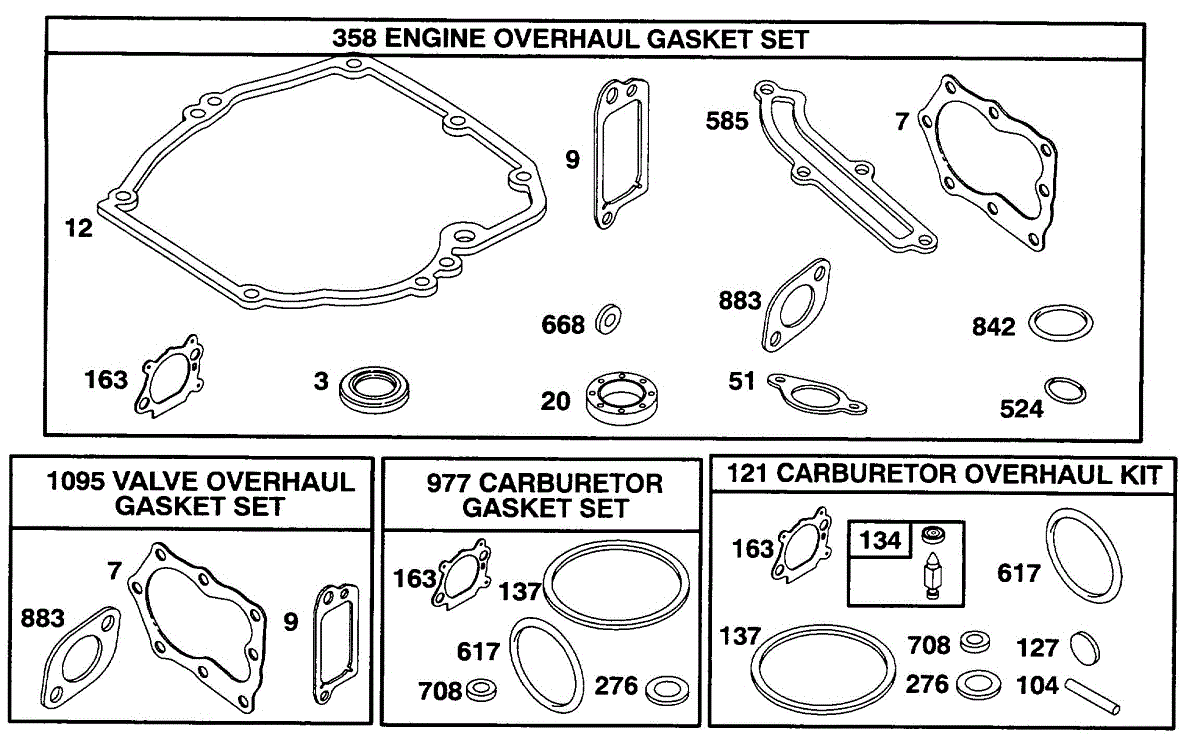

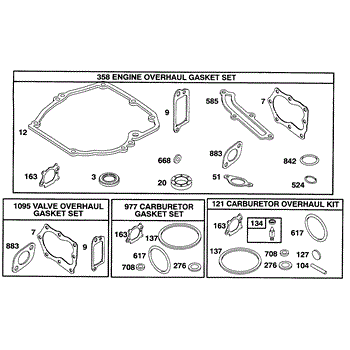

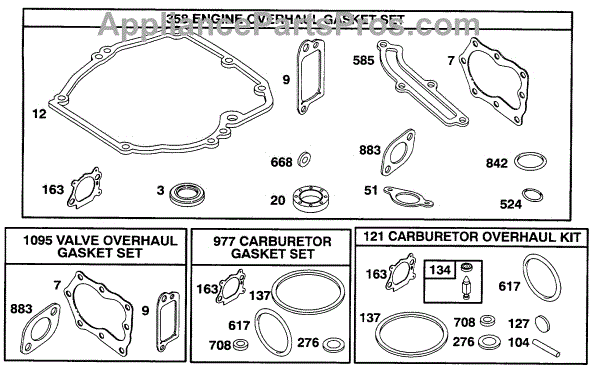

Parts for Briggs & Stratton 12C802-1908-E1: Kits / Gasket Sets Parts

The cylinder head gasket sits between the cylinder head and the engine block. It has seals that allow the internal combustion process to occur, while also ensuring that coolant and oil do not blend as they leave the engine block and go to the head. This repair will require the use of wrenches, screwdrivers, pliers, and other equipment, and it will be necessary to purchase any other components in need of replacement at the time of the repair. This OEM cylinder head gasket replacement is a part for engines on lawn mowers, pressure washers, chipper and shredders, as well as other gas-powered devices from Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn Boy, Simplicity, and other manufacturers.

This genuine replacement crankcase gasket creates an airtight seal on the crankcase so that oil and air do not leak out of the engine when it is running. Over time, this gasket is exposed to extreme pressure and high heat and will naturally deteriorate. It could become faulty and create leaks or it could break entirely. In either case, a full replacement of the gasket is the only solution. This OEM part can provide an exact fit for compatible lawn and garden equipment engines. This genuine crankcase gasket is manufactured to strict standards by Briggs & Stratton and is compatible with select engines on lawn mowers and generators from Briggs & Stratton, Lawn Boy, and Toro. This gasket is made of durable composite material and it is sold as an individual unit. Other gaskets, hardware, or related parts are all sold separately. The repair can be done with just a wrench, but be sure to allow the engine to cool entirely before beginning any repairs. Always wear gloves and disengage the spark plug for safety when performing engine work.

This is a carburetor overhaul kit for 3.5 to 4 HP Max Series Quantum and 5 HP Industrial Plus Engines. It is secured to the side or top of a lawnmower engine, depending on the manufacturer. The carburetor is crucial to the overall performance of an engine because it is responsible for mixing the right amounts of air and fuel. The fuel from the fuel tank flows through a hose into the carburetor, which allows it to drip into a bowl. The carburetor can become dirty or clogged over time for a variety of reasons. When this happens, it is often a good idea to take it apart and replace the components inside. There are other telltale signs that the carburetor needs an overhaul or repair. These include an engine that won't start, an engine that's running lean, an engine that's running rich, and one that's flooded. This high-quality carburetor overhaul kit comes with everything needed to repair or rebuild a carburetor, including gaskets, needle, float, seals, and an instruction manual. Aside from lawnmowers, it works with specific models of leaf blower/vacuums, generators, pressure washers, wood chippers, and small engines from Briggs & Stratton, Craftsman, Cub Cadet, Lawn-Boy, MTD, Murray, Simplicity, and Toro. It is an OEM product sourced directly from the manufacturer and is sold individually. Please refer to the diagram of the specific model for the correct location and application of the components.

The carburetor has a float valve to control the flow of fuel from the tank to the reservoir. A float valve has three main components - a float, seat, and a needle. When there is adequate fuel level in the carburetor, the float will rise, prompting the needle to close against its seat and prevent overflowing. If the float valve is malfunctioning, it may overflow the carburetor. In some cases, it doesn't provide ample fuel into the carburetor. If you suspect that the needle and seat are faulty, don't waste another moment. Over time, a defective needle and seat can lead to more expensive repairs like a leaking carburetor and even an engine misfiring. For a genuine OEM replacement, get this Midwest Engine 398188 Needle & Seat Kit. Please take note that the Midwest Engine 398188 Needle & Seat Kit only comes with the needle and seat. If you also need a genuine Midwest Engine float replacement, you will need to purchase it separately.

A carburetor on a lawn or garden appliance often has a float-feed chamber or bowl mounted on one side. This is a miniature fuel tank that takes a trickle feed from the main fuel supply. A carburetor is unable to use fuel that is under pressure, so the float chamber keeps everything at atmospheric pressure. When any sort of dirt or debris enters the fuel and air passages, it can cause an array of issues. The debris may enter due to shrinkage of O-rings and gaskets, and that is why a replacement gasket is essential. A carburetor screwdriver is essential when making this repair. Replacing it involves removing several pieces of the carburetor assembly, including a float assembly, inlet needle valve, and the old fuel bowl gasket itself. This authentic replacement carburetor bowl gasket will fit a small engine carburetor bowl on wood chippers, leaf blowers, pressure washers, tillers, snowblowers, lawnmowers, and small engines. It is compatible with Briggs & Stratton, Toro, Simplicity, Lawn-Boy, Cub Cadet, and Snapper, among others.

This O-ring seal is used in all sorts of lawn and garden equipment as a seal for the oil dipstick. It helps seal the system from debris and dirt that could otherwise reach the oil and end up in the motor. Over time, an O-ring will start to shrink, which can result in air and oil leaks and a poorly performing engine. If the O-ring has pits, blisters, or pocks on the surface, it will also need to be replaced.If an O-ring seal is worn, damaged, or clogged, it should be cleaned or replaced before the equipment that houses it is used again. A flat head screwdriver can be used to remove the damaged O-ring. Once the old one has been removed, a new one can be placed into the same position before using the tool.This O-ring seal is designed for lawnmowers, snowblowers, tillers, wood chippers, pressure washers, generators, and leaf blowers. It is compatible with equipment from Simplicity, Briggs & Stratton, MTD, Craftsman, Snapper, Toro, Lawn-Boy, and Cub Cadet. The seal is a genuine OEM replacement part directly sourced from the manufacturer. It comes with a single seal.

This exhaust gasket is a genuine Midwest Engine replacement part for appliances operated by small engines, such as chipper shredders, snowblowers, leaf blowers, and lawn mowers. An exhaust gasket's purpose in the engine is to create a sealed layer between the carburetor and the exhaust tube to keep dirt and debris out of the infrastructure of the engine. A malfunctioning or broken exhaust gasket could compromise the seal between the carburetor and the exhaust tube, meaning that dirt and debris could get into the engine and cause damage. An exhaust gasket could be subject to damage from overuse and is generally known to require replacement over time from general wear and tear. If the exhaust gasket seal is compromised, it should be replaced immediately. Evidence of dirt and debris compromising an engine could take the form of oil leaking from the carburetor, black smoke pluming from the exhaust tube, and lower engine pressure than usual. This exhaust gasket is compatible with the following brands: Briggs and Stratton, Cub Cadet, and Toro. This part sold individually.
