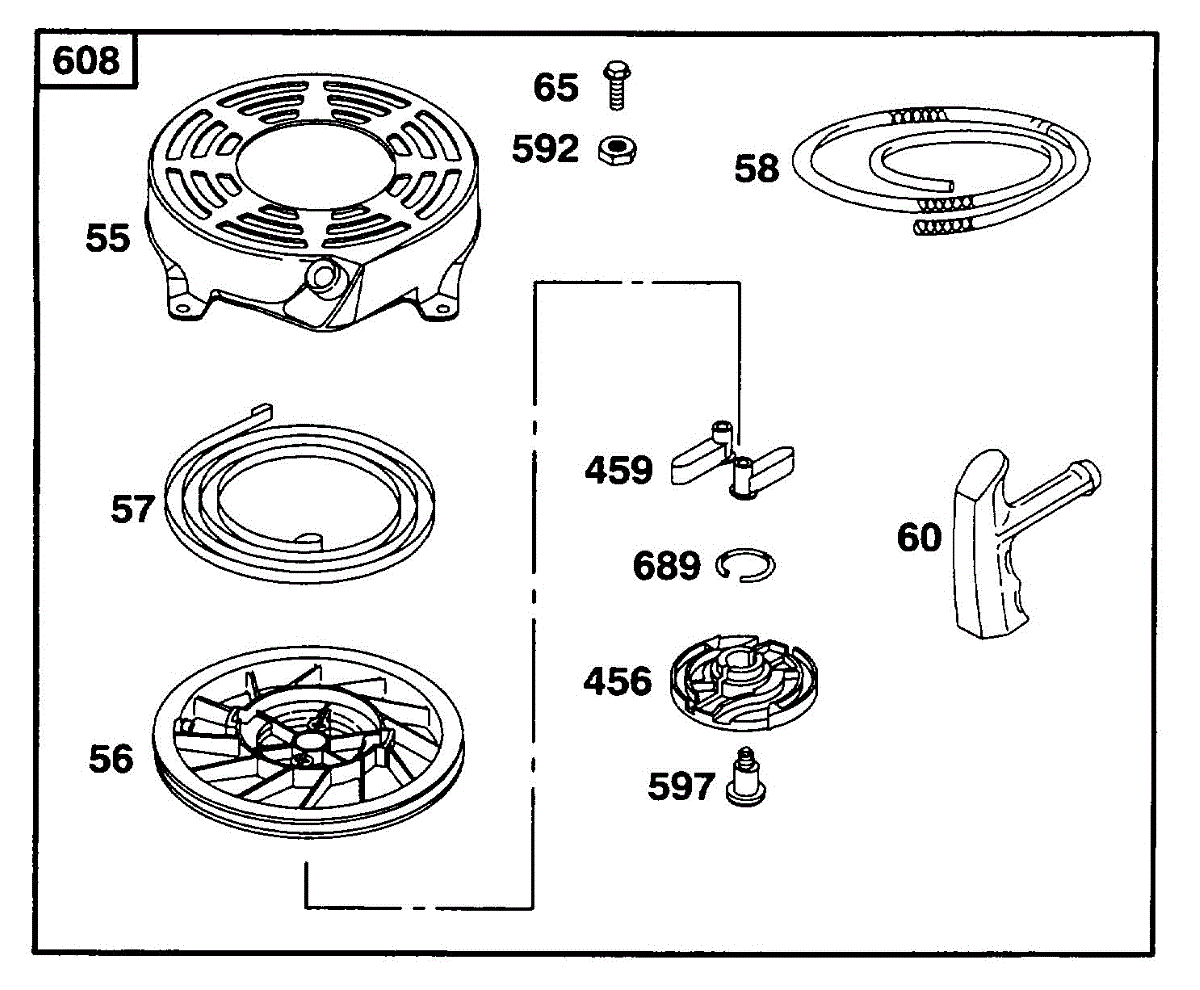

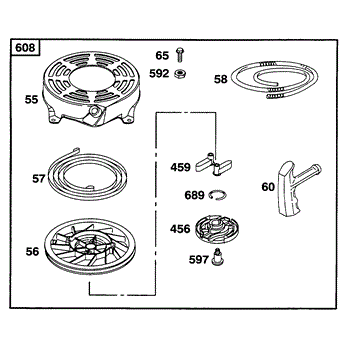

Parts for Briggs & Stratton 12C802-1908-E1: Rewind Assy Parts

This is an OEM replacement part for the recoil pulley and spring assembly, also called the rewind pulley and spring. The recoil starter, which is operated by a rope, will engage the drive cup on the flywheel, which will start the engine when it is pulled. These are commonly found on lawnmowers and similar outdoor equipment. If the rewind begins to bind when pulling the rope, or if it does not rewind easily, it could indicate that a replacement is needed. In addition, if the plastic on the old pulley is worn and cracked, it is a good idea to replace it before it fails entirely. This OEM assembly comes from the manufacturer and includes the pulley and the spring. The pulley is made from plastic, and the spring is metal. The part can be used for a range of machines and brands. The pulley and spring assembly are compatible with lawnmowers, tillers, and other small engines from brands like Craftsman, Briggs & Stratton, Snapper, Lawn-Boy, Toro, and Cub Cadet.

This is an OEM replacement part for the recoil pulley and spring assembly, also called the rewind pulley and spring. The recoil starter, which is operated by a rope, will engage the drive cup on the flywheel, which will start the engine when it is pulled. These are commonly found on lawnmowers and similar outdoor equipment. If the rewind begins to bind when pulling the rope, or if it does not rewind easily, it could indicate that a replacement is needed. In addition, if the plastic on the old pulley is worn and cracked, it is a good idea to replace it before it fails entirely. This OEM assembly comes from the manufacturer and includes the pulley and the spring. The pulley is made from plastic, and the spring is metal. The part can be used for a range of machines and brands. The pulley and spring assembly are compatible with lawnmowers, tillers, and other small engines from brands like Craftsman, Briggs & Stratton, Snapper, Lawn-Boy, Toro, and Cub Cadet.

The pawl friction plate on lawn and garden engines is an essential part of the starter assembly that is needed to crank start the machine. It provides power to the starter cup. If the engine on a machine will not start, it could be due to a broken or worn pawl friction plate. Replace the plate immediately to ensure your machine is working properly. This is genuine OEM part is compatible with a range of product types, including lawnmowers, snowblowers, tillers, pressure washers, generators, log splitters, wood chippers, leaf blowers, and chippers. Compatible brands include Briggs & Stratton, Craftsman, Cub Cadet, Lawn-Boy, Snapper, Simplicity, and Toro. The part is sold individually. Keep in mind that this only includes the pawl friction plate. It does not contain the screw or spring, and these will need to be purchased separately.

This is a replacement screw to secure the pawl friction plate used in many types of lawn and garden equipment. The part is also sometimes called a flange bolt. It is identical to the original screw that came with the machine and will replace a lost or damaged screw. The screws could become damaged due to corrosion or an incident that causes the screw to bend or break. They also serve as replacements in case the screw was lost. Replacing the screw is a simple repair to make. This is an authentic OEM replacement screw that is sold individually. Some buyers might want to have an extra screw on hand. The replacement screw for the pawl friction plate can be used on lawn mowers, snowblowers, tillers, pressure washers, generators, edgers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

A rewind starter, also called a recoil starter, is an assembly on many types of lawn and garden equipment used to trigger combustion in the engine. Set at the front or top of the engine, it cues the starting mechanism to turn the engine fast enough for a spark to ignite fuel in the cylinder when the handle is pulled. This part features a recoil spring connected to a pulley, and when the rope is yanked, it stretches a recoil spring. Letting go of the rope causes the spring to snap back, and the user will be able to continually pull the rope and get things moving faster and faster until there is combustion. The rope is part of the pulley system that will pull out and recoil quickly into the starter cover on top of the engine when the user pulls the starter rope’s handle. If there is no recoil or the rope gets stuck, it may need to be replaced. Without a functional starter assembly, the machine won’t work. A rewind starter kit can be used to address this issue. An authentic OEM part, it works with Briggs & Stratton and Husqvarna equipment. It contains a plastic shroud, starter pulley, starter spring, grip, the pull rope, and all hardware necessary to attach it to the machine.

This replacement friction spring is a genuine OEM part meant for any number of small appliance engines run using a starter rope. This spring absorbs large amounts of kinetic energy that could damage the starter rope pulley system. It helps keep the pulley from being overstretched, which would create enough pressure to break the entire system. This spring sits at the center of the pulley system and creates resistance as the user yanks the starter rope. Friction springs can become worn out after repeated use, especially if a user tends to yank the starter rope quite forcefully. The most obvious sign of a worn of friction spring is if the pulley system lacks any resistance. As the user pulls the cord, they should feel a little pull back, but if the friction spring is worn, there will be much less resistance. Replacing this part is straightforward and will only require a screwdriver. Simply open the pulley system, carefully remove the old spring, and install the new one. This part is compatible with a wide number of appliances from Toro, Vanguard, Briggs & Stratton, and Lawnboy. It comes sourced from the original manufacturer and ships individually.
