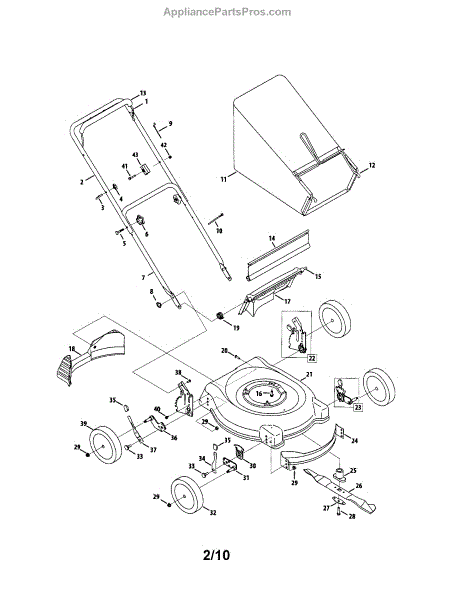

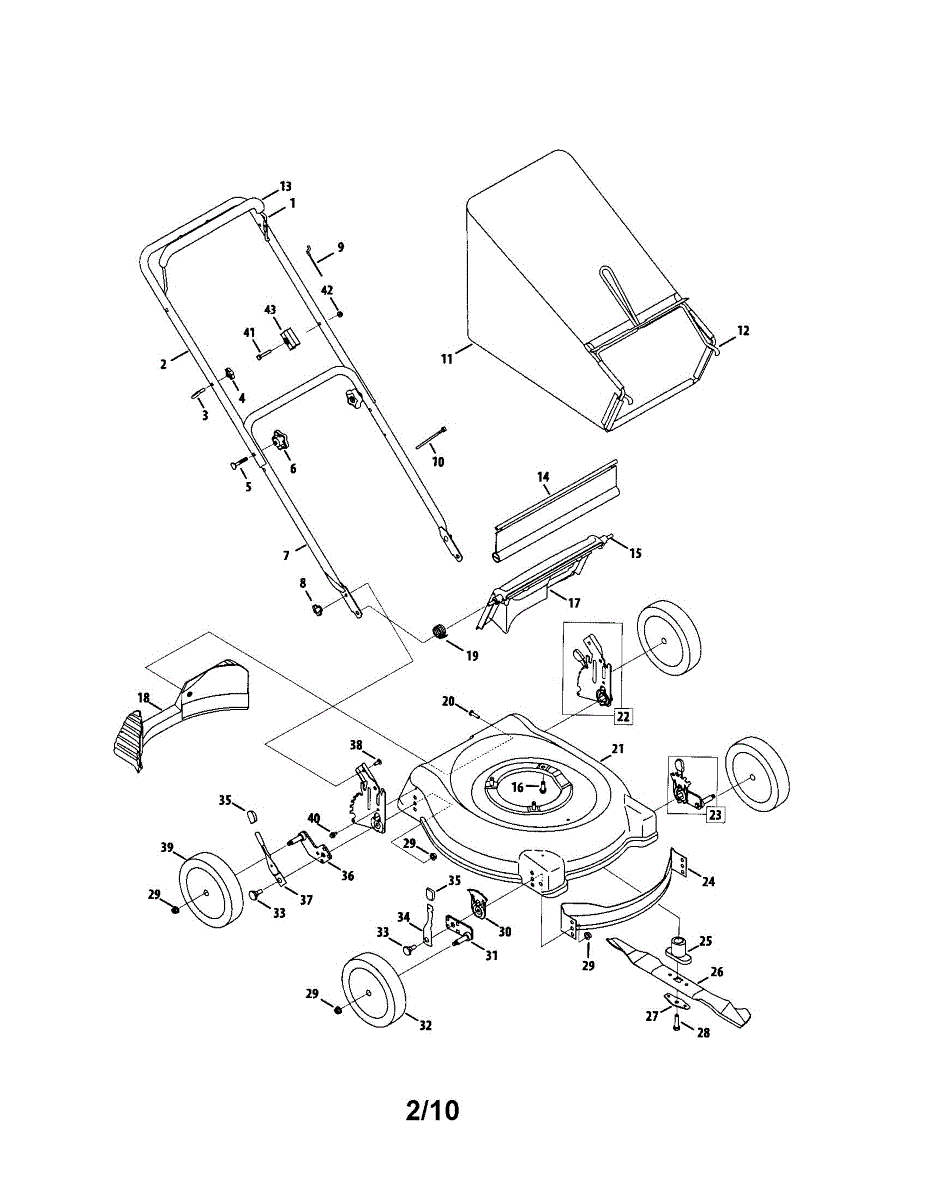

Parts for Mtd 410: Lawn Mower Parts

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

This upper handle can be used as a replacement part for a lawnmower or snowblower. The upper handle allows the user to control the movement of the equipment while it is in operation.If the part suffers damage from direct impact or wears down from use over time, it may need to be replaced. An upper handle can suffer damage in the form of piercing, cracks, scrapes, punctures, and corrosion of the metal material. If this damage makes steering the lawnmower or snowblower difficult, the handle should be removed and replaced with this genuine OEM replacement part before using the appliance again. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This upper handle is a genuine MTD part, sold individually. It is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Yard Machines, Huskee, Craftsman, Yard-Man, and Bolens.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

This is a grass catcher that attaches to the cutting deck of a number of walk behind lawn mowers. The bag fits over the metal bag frame, which is sold separately. The bag and frame are designed to detach easily from the mower so that grass clippings can be discarded quickly and the bag can be reattached. Although it is made of durable fabric, bags do become worn out. This is primarily a result of being dragged against grass, obstacles, fences, and other impediments. Once worn, the bags cannot be satisfactorily repaired and thus need to be replaced. Replacement is a simple matter of removing the fabric bag from the metal frame and slipping the new replacement bag back onto the frame. While making the replacement, it is a good idea to check the status of the metal frame, which can also become bent or even broken during normal use. When replacing this grass catcher bag, it is essential to avoid purchasing a generic, lower quality item. Instead, make sure to use a genuine OEM replacement part such as this one, which is manufactured to be identical to the original. This bag is compatible with mowers offered by Ryobi, MTD, Yard Man, Bolens, Yard Machine, Husky, Cub Cadet, and Troy-Bilt.

This OEM part is a 21 inch grass catcher frame that is used on walk-behind lawnmowers. The grass catcher frame holds and secures the fabric bag which catches the grass clippings from the lawnmower as it cuts them.The grass catcher frame may need to be replaced if it has broken or if it has become bent due to use over time. The operator may notice that the grass-catching bag is dragging on the ground or it is not staying in place; these are signs that the grass catcher frame needs to be replaced. This grass catcher frame part is a genuine Ryobi part sourced directly from the manufacturer and it is sold individually. It is used on both push and propelled walk-behind lawnmowers that are manufactured by Troy-Bilt, Ryobi, MTD, Bolens, Yard-Man, Yard Machines, Cub Cadet, and Husky. Please note that this is just the frame, it does not include the fabric bag.

A train shield is found on many walk-behind lawn mowers. It is located on the rear side of the lawn mower. The function from the position where it is mounted is to keep grass from expelling from the mower deck. With use or as a result of accidental impact, the train shield may become damaged or fall off. If the train shield is broken or missing, it will allow grass to come out from the mower deck, which poses a safety risk. Check to see if grass is being expelled from the motor deck.Installing a train shield on a lawn mower is an easy task. There is hardware required to secure the part in place. Wear gloves for protection. Make sure the machine is entirely cool.This train shield is a genuine OEM replacement part. It is sourced from the manufacturer. The train shield is made of durable, high-quality plastic. It is sold individually. The train shield can be installed on MTD, Troy-Bilt, Yard-Man, Bolens, Yard Machines, Cub Cadet, and Huskee brand lawn equipment. It is compatible with several models of walk-behind lawn mowers.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This screw is a hex wash head screw. It is a genuine MTD part. It is a replacement part for various makes and models of lawn mowers, snowblowers, edgers, and other equipment. A screw is a type of fastener, and as such, there are many screws on these appliances.Screws may become worn over time through normal wear and tear. In addition, screws can become stripped when making another repair, so it is a good idea to have compatible screws on hand in case. This hex wash head screw is made of durable metal.This screw is a genuine OEM part that is sourced directly from the manufacturer. It is sold individually, though there are many screws located on these types of equipment. It is made to be compatible with equipment manufactured by MTD, Yard Machines, Bolen, Troy-Bilt, Craftsman, Husky, Cub Cadet, and many others.

This replacement part is a handle bracket assembly. This is a genuine replacement part made by MTD. Brackets are used to connect two pieces together and ensure that they are secure during use. A new handle bracket assembly might be needed if the current one is unable to properly stay attached in any way. This can be due to damage over time and should be replaced if this is the case. The bracket assembly might have become stripped due to normal wear and tear. Be sure to refer to the proper use guide for more information on how to install this part efficiently and correctly. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This replacement part is a handle assembly. It is a genuine replacement part made by MTD. This type of handle is typically found in push lawnmowers and helps the user control the speed and settings on the lawnmower during use. This part helps the user in turning and maneuvering the machine. A new handle assembly might be needed if the current one is damaged or missing. This can include being cracked, dented, or chipped. If the handle is not working properly the user might not be able to utilize all the functions of the machine and it should be replaced as soon as possible. Be sure to wear work gloves especially if the previous handle is damaged. This part is sold individually and is sourced directly from the manufacturer to ensure long-lasting use. This is also a genuine OEM replacement part.

This OEM replacement part is the height adjustment bracket assembly for lawnmowers. The height adjustment bracket assembly is the part that allows for the mower's height settings to be adjusted, allowing the mower to cut shorter or longer depending on the user's preferences. If the height adjustment bracket is no longer functioning and the mower deck is only able to sit in one position, then it will need to be replaced. Luckily this is a relatively simple repair. To replace the bracket, begin by locating it near the base of the mower. Once located, remove the mounting bolts that hold the bracket in place. Once removed, place the new bracket in a position where it is aligned with the bolt opening of the mower. Once aligned, fasten the bolts to hold the new bracket assembly in place. This genuine replacement part is sold individually and is compatible with MTD brand mowers.

This adjustment assembly is a genuine MTD part. It is intended for use with walk-behind mowers, riding lawn mowers, mulching mowers, and other similar machines made by an array of manufacturers. The adjustment assembly allows the user to adjust the height of the mower by adjusting the wheels.Replacing the adjustment assembly is not a very common repair, however it can be more common for mowers used for commercial purposes, since they will be adjusted much more frequently. It can also become damaged in an accident or by particularly rough terrain.This adjustment assembly is a genuine OEM part sourced directly from the manufacturer and is sold individually. It is compatible with machines made by Bolens, Huskee, Husky, Mastercut, MTD, Platinum, White Outdoor, Yard Machines, and Yard-Man.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement wheel is designed for use with select walk-behind lawn mowers. The wheel is one of four on a mower that is responsible for keeping the deck from making contact with the ground. It also helps maneuver the mower through grass and on uneven terrain. It is attached to the axle with a nut that allows it to spin when the mower is pushed. Wheels can become worn over time or become damaged in a way that stops them from functioning correctly. In that case, a replacement of the wheel would typically be the best option. Without functional wheels, mowing could become difficult or even impossible. This replacement wheel will resolve the issue for compatible models. This genuine OEM wheel is manufactured by MTD. It can be used with hundreds of walk-behind lawn mowers from MTD, Craftsman, Troy-Bilt, Yard Machines, Yard Man, RYOBI, Bolens, and Husky. This wheel is made of high-quality durable plastic and sold as a single unit. Those who need more than one wheel will have to purchase multiple quantities. A socket set or wrench will be required for a wheel replacement. Always wear gloves when performing equipment repairs.

The Lever Knob Assembly is an OEM replacement part for MTD outdoor power equipment. The Lever Knob Assembly is responsible for adjusting the height of the mower blade on the front wheel of the mower.

Over time, the plastic or metal components can degrade due to exposure to the elements, frequent use, or accidental impacts. This can lead to the knob becoming difficult to turn, slipping out of place, or breaking entirely.

Symptoms of a bad lever knob assembly include:

• Difficulty in adjusting or controlling the lever
• The knob becoming loose or wobbly
• Visible damage such as cracks or breaks
• The lever not staying in the desired position

This MTD replacement part is also compatible with other brands and models within the MTD family, ensuring versatility and reliability for your outdoor power equipment.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This replacement part is a pivot arm assembly. This is a genuine replacement part made by MTD. Pivot arm assemblies allow the user to turn or rotate certain parts so that they can maximize the user experience during use. A new pivot arm assembly might be needed if the current one no longer works. If the pivot mechanism is no longer able to turn or rotate, it might be time to replace this part. It is not uncommon that the part can become stripped over time. Remember to wear work gloves when attempting to replace this part. The engine should be turned off completely during this repair. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

Lawnmowers and other lawn and garden equipment need to be mobile, and that means they need wheels. There are many warning signs that it is time to replace the wheel. For example, if a self-propelling machine struggles to move easily or if a push mower is not operating as smoothly as in the past, it may be that the wheel assembly has failed. The reasons for failures include the materials, the amount of weight put on the wheels, the amount of use, and the type of use. Changing a wheel is simple but requires the appropriate parts. It features a bar tread and roughly 8 in diameter. It should work with all self-propelled and manually operated mowers, as well as the machine and equipment types listed. This authentic OEM complete wheel replacement will work on chipper and shredder machines, edgers, and lawnmowers from the Craftsman, Bolens, and Yard Machines brands. It will also work with Ryobi, MTD, Huskee, and Yardman equipment. It will require the appropriate hardware, which is not included.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.
