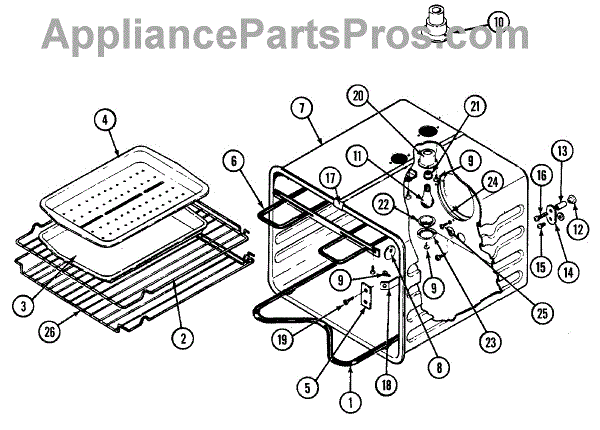

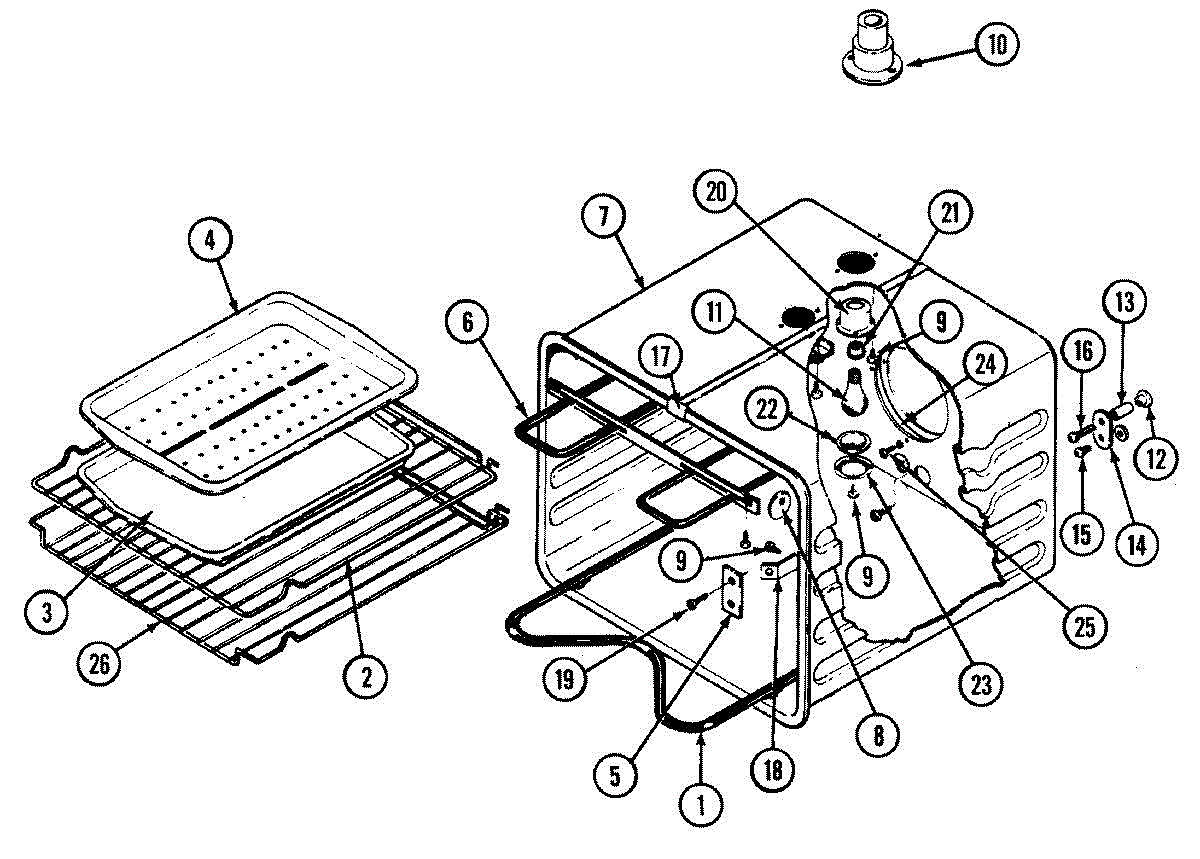

Parts for Jenn-Air W2720B: 06 - Liner Parts

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Broil element not heating or glowing? This upper heating element restores high-heat broiling. Common DIY fix, typically installs in under 10 minutes.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This part has been discontinued by the manufacturer and is no longer available.

Color: Stainless steel

This part has been discontinued by the manufacturer and is no longer available.

This heating element warms the wash and rinse water and helps dry dishes at the end of the cycle. Replacing a failed element restores proper temperatures, cleaning performance, and drying so cycles finish as expected.

• Heats water to target temperature during wash and rinse phases
• Aids in drying by radiating heat into the tub at cycle end
• Controlled by the dishwasher's electronics to maintain proper heat
• Common symptoms of failure: water stays cool, poor drying, extended cycle times, or a visibly broken/burned element

• Disconnect power at the breaker and allow the dishwasher to cool before servicing
• Access is typically from inside the tub and/or beneath the unit after removing the toe panel
• Note wire positions, disconnect leads, remove retaining hardware, and carefully extract/install the element without bending it
• Ensure seals are correctly seated and tightened evenly; run a short cycle to check for leaks and heat

Pop rivet secures sheet-metal panels, brackets, and burner jar lids on appliances. Replace missing, drilled-out, or damaged rivets for permanent hold.

Replacement 10-32 machine screw for securing panels, brackets, and internal components. Ideal for replacing missing, stripped, or damaged hardware.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
