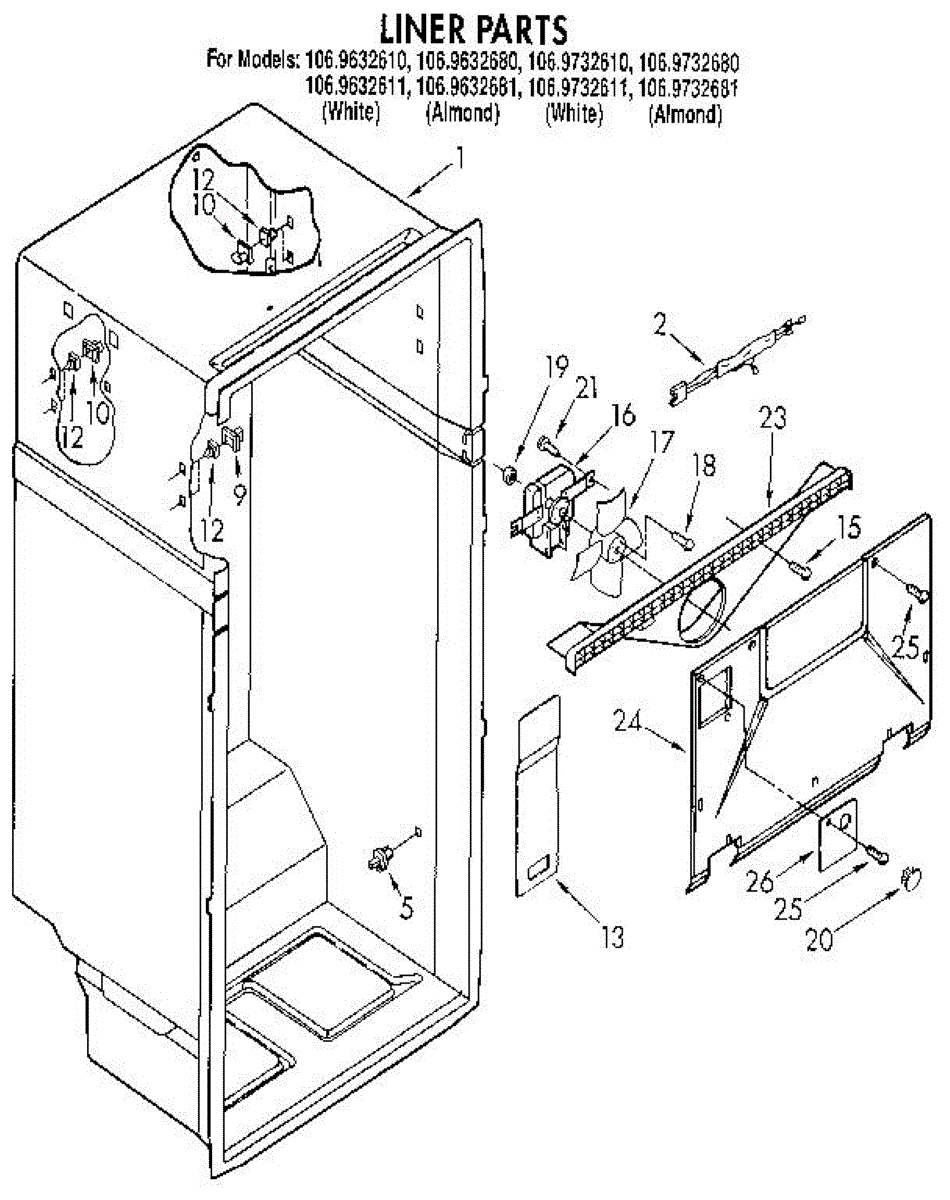

Parts for Kenmore 106.9632611 (1069632611, 106 9632611): Liner Parts

This shelf stud secures a refrigerator shelf or shelf trim to the cabinet, restoring stable shelf positioning and preventing slipping or tilting. A simple hardware replacement that helps keep shelves level and items secure. What it does:

• Provides the mounting point that holds a shelf or shelf trim in place.
• Common replacement when the stud is cracked, broken, stripped, or missing.
• Stops shelves from tilting, sliding, or dropping when loaded.
• Works with the shelf edge/support to maintain proper alignment.

• Disconnect power to the appliance before starting any work, and remove all items from the shelf area.
• Remove the shelf or trim and handle any glass carefully; wear gloves and eye protection.
• The stud typically snaps or presses into the shelf support—refer to the model's diagram for exact orientation and fasteners.
• Support the glass while installing to avoid chipping or dropping.

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

This evaporator fan blade mounts on the freezer's fan motor and circulates cold air through the cabinet. Replacing a cracked, loose, or warped blade restores proper airflow for even cooling and reliable refrigerator performance.

• Circulates air across the evaporator coils to push chilled air throughout the compartments
• Helps maintain consistent temperatures and overall cooling efficiency
• Supports frost control by keeping air moving over the coils
• Typical failure signs: rattling/scraping noises, weak airflow, uneven cooling, or frost buildup

• Unplug the appliance before servicing; wear cut-resistant gloves
• Access the evaporator fan (commonly behind the rear freezer panel)
• Pull the old blade straight off the motor shaft; align and press the new blade on, matching the original orientation/position
• Hand-spin to confirm clearance; reassemble and restore power to test airflow

This machine screw secures appliance panels and components for reliable operation and alignment. A simple replacement that restores proper fit and prevents rattles or loose parts. What it does

• Fastens panels, brackets, or components to restore secure attachment
• Stops squeaks, rattles, or vibration caused by loose fasteners
• Replaces worn, stripped, or missing screws to maintain safety and function
• Matches OEM threading and head style for correct fit when specified

• One machine screw

• Use the correct driver size to avoid stripping the head
• Do not overtighten; stop when snug to prevent damage to threads or parts
• Disconnect power and move the appliance to a safe, stable position before working near electrical components
• Ensure proper torque and consider thread engagement length

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed
