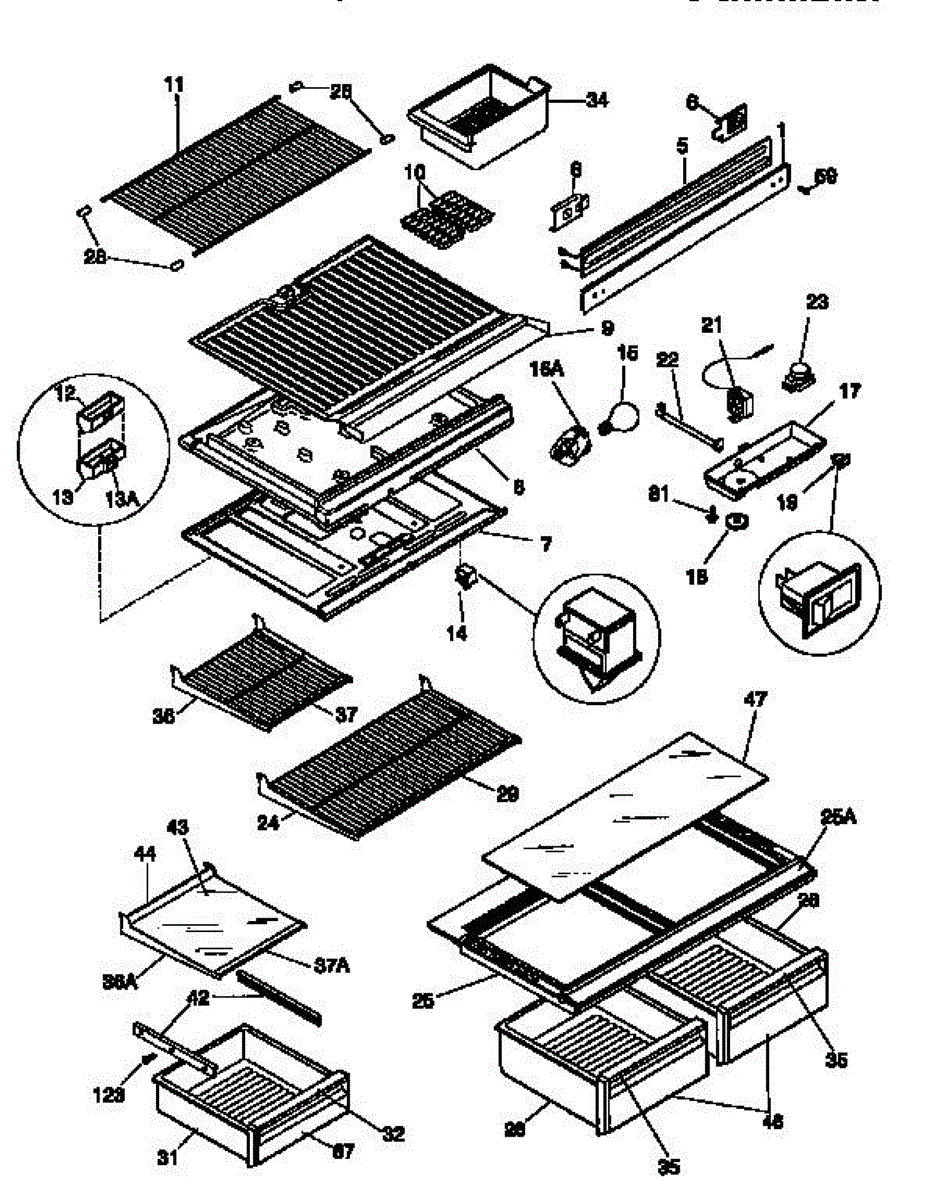

Parts for Kenmore 253.9658380 (2539658380, 253 9658380): Liner Parts

Tapping plate that mounts the mullion vertical trim on your refrigerator. Replace if cracked, stripped, or missing to restore secure trim attachment.

Wiring harness for refrigerators. Connects electrical components inside the appliance. Replace if wires are frayed, damaged, or connections are loose.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

Optional flexible ice tray for those that dont have an icemaker

Full-width wire shelf for refrigerator freezer compartment. Replace broken, rusted, or missing shelves to restore storage organization and support.

Foam seal for refrigerator air deflector. Replace if torn, compressed, or causing temperature issues. Ensures proper airflow between compartments.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Air deflector with cover for freezers. Directs airflow inside the freezer compartment. Replace if cracked, broken, or missing to restore proper air circulation.

This door-activated light switch controls the interior lamp in your refrigerator. Replace a worn or sticking switch to restore dependable lighting and prevent the bulb from staying on and warming the compartment when the door is closed.

• Opens and closes the light circuit as the door is opened and closed
• Helps prevent the light from staying on with the door shut
• Common symptoms: interior light won't turn on, stays on with the door closed, or works intermittently
• Physical signs may include a stuck/broken plunger or damaged housing

• Disconnect power before servicing
• Gently pry the old switch from the liner/panel and release its locking tabs
• Transfer wires one at a time to the same terminals on the new switch
• Press the new switch fully into place; restore power, and test

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace your refrigerator light socket when bulbs won't illuminate or burn out quickly. Provides secure bulb connection and prevents overheating. Verify fit.

This nut anchor secures the appliance control box to the cabinet, keeping the control module mounted and stable for reliable operation. Replacement restores proper fastening when the original anchor is missing or damaged. What it does:

• Provides a captive fastening point for the control box or control board housing
• Holds the control assembly steady to prevent movement, vibration, or rattling
• Helps maintain proper alignment of electrical connections and wiring harnesses
• Used when the original anchor is stripped, cracked, or no longer grips the panel

• One nut anchor for control box mounting

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the control box per your model's service instructions; remove panels carefully
• Press or fasten the nut anchor into the mounting hole until it seats; secure the control box with the appropriate screw
• If supply threads are damaged, replace any mating fasteners and fit snugly, but not over-tightened.

Fix a refrigerator that won't run or cycles incorrectly with this energy saver switch. Controls power-saving mode. Straightforward DIY repair.

This screw is a direct-replacement fastener used to secure appliance panels and trim so components stay in place and operate quietly. It restores proper fit where mounting screws are missing or worn. What it does:

• Secures panels, trim, brackets or small components to the appliance frame
• Helps prevent rattling, misalignment, or loose parts during operation
• Matches OEM thread and head style for correct fit and reliable fastening
• Useful when replacing stripped or missing mounting hardware

• Disconnect power before servicing electrical appliances
• Use the correct screwdriver or bit to avoid stripping the head
• Keep small parts away from children and pets during installation
• Replace with the exact OEM screw to ensure proper fit and safety

Plastic

This is a replacement mounting screw used to secure the defrost timer assembly to the refrigerator control housing, restoring proper fastening and preventing the timer from shifting or vibrating during operation. What it does:

• Secures the defrost timer to the control housing so the timer stays in position.
• Prevents vibration or movement that can cause intermittent contact or noisy operation.
• Helps maintain reliable defrost cycle timing by keeping the timer properly aligned.
• Addresses symptoms such as a loose or missing fastener, rattling behind the control panel, or a timer that shifts when the door is opened.

• Unplug the appliance before starting work to prevent electrical shock.
• Access the control housing or timer bracket per your model's service instructions.
• Use the correct screwdriver or driver bit; do not overtighten—stop when snug to avoid stripping.
• Retain removed hardware for reference and compare screw length/threads before installing.

Glass shelf that sits above the crisper drawer in your refrigerator. Replace if cracked, broken, or missing to restore a stable surface and protect produce.

Replace a cracked, broken, or missing refrigerator crisper pan. This drawer installs in the fresh food compartment to hold produce and keep shelves organized.

The Protector Cap is an OEM part for Frigidaire refrigerators. It is designed to shield and protect specific components within the refrigerator, such as the temperature sensor or wiring connections. This cap helps to ensure that these critical parts remain intact and functional, contributing to the overall efficiency and performance of the appliance.

 A compromised protector cap can expose sensitive components to potential damage, leading to malfunctions and decreased refrigerator efficiency.

Symptoms of a bad protector cap include:

• Visible cracks or damage to the cap
• Loose or missing cap
• Exposed or damaged wiring or sensors

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Removable meat pan drawer that fits inside your refrigerator cabinet. Replace if cracked, broken, or missing to keep meats organized and contained.

Replacement ice bin that collects and stores ice cubes from your freezer ice maker. Needed when original bin is cracked, broken, or missing.

Plastic trim piece that frames and secures the glass shelf edge in your refrigerator. Replace if cracked, broken, discolored, or missing for a clean look.

Replacement hanger bracket for refrigerator meat pan drawers. Mounts to side wall with screws. Order when original hanger is cracked, broken, or missing.

Replacement slide hanger for your refrigerator's meat drawer. Installs on the interior side wall to support the meat pan. Order when cracked or broken.

Secures panels, brackets, and handles in refrigerators and other appliances. Replace missing or stripped screws to restore secure mounting.

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Mounting screw for refrigerator component assembly. Replace worn, stripped, or missing screws to secure panels, brackets, or interior parts properly.

Fix refrigerator cooling issues or compressor leaks with this tube repair kit. Essential sealed system component for restoring proper refrigeration.

This printed repair parts list provides the service diagram and parts index used to identify replacement components and their placement inside the appliance. It helps technicians and DIYers locate the correct parts for repair and ordering. What it does:

• Shows the internal layout and locations of serviceable parts for quick identification
• Lists part names and reference numbers as shown on the service diagram for ordering accuracy
• Helps troubleshoot which component may need replacement when a part is damaged or missing
• Speeds up communication with parts suppliers by referencing diagram callouts

• This item is a reference document only; no mechanical installation required
• Keep the sheet with the appliance manual or service records for future repairs
• Review diagrams carefully before ordering
• For electrical or complex repairs, disconnect power.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.
