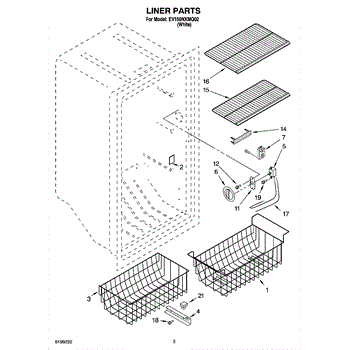

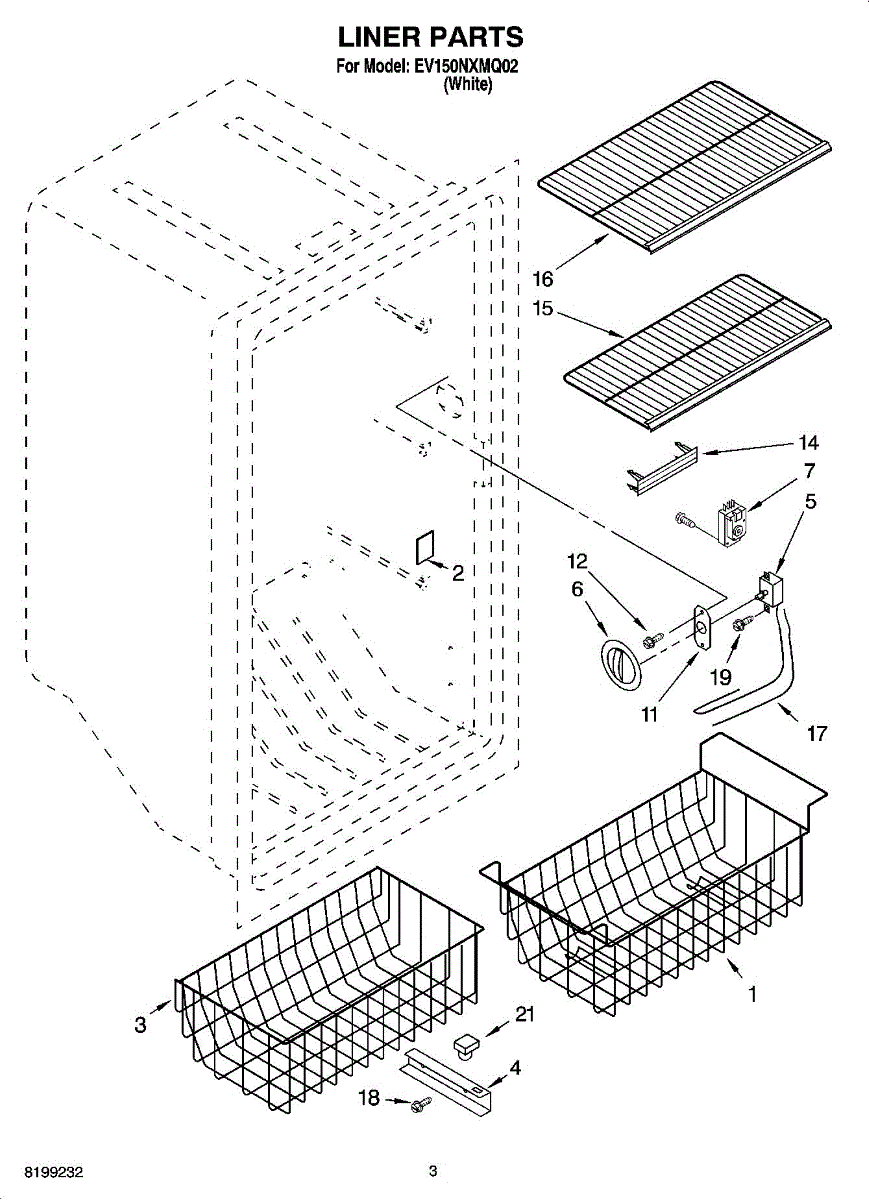

Parts for Whirlpool EV150NXMQ02: 02 - Liner Parts

This control housing cover protects the appliance's control components and wiring while providing a finished look. Replacing a damaged cover helps prevent dirt, moisture, and accidental contact with controls and wiring. What it does:

• Shields control board, switches, and wiring from dust, spills, and debris
• Prevents accidental contact with electrical components for safer operation
• Restores a secure, finished appearance to the control area
• Helps keep buttons and knobs aligned and functioning properly

• One control housing cover

• Disconnect power before servicing to avoid electric shock
• Remove any knobs or trim necessary to access mounting fasteners
• Handle gently to avoid cracking plastic; replace any broken clips or screws

This thermostat regulates the appliance's internal temperature by cycling the cooling or heating circuit on and off to maintain your set point. Replacing a failing thermostat restores accurate temperature control and consistent performance.

• Monitors temperature and opens/closes electrical contacts to maintain the selected setting
• Helps resolve symptoms like temperatures that drift, nonstop running, or failure to start/stop at the set point
• Can address an unresponsive or erratic control knob and irregular cycling
• Restores stable, predictable operation after a worn or stuck thermostat

• Disconnect power before servicing; work in a cool, dry area
• Note wire positions; transfer leads one at a time to the new control
• Mount the control securely and align the control shaft with the knob
• Restore power and verify proper cycling with a thermometer

This defrost timer controls when your refrigerator or freezer enters and exits the automatic defrost cycle to clear frost from the evaporator coils. Replacing a failed timer restores reliable defrosting to help maintain airflow, cooling performance, and stable temperatures.

• Advances on a timed schedule to initiate and end the defrost cycle
• Sends power to the defrost heater during defrost, then returns the system to cooling
• Helps prevent heavy frost buildup that restricts airflow and cooling
• Common symptoms of a bad timer: unit not defrosting or warming over time, heavy ice on the evaporator/cover, stuck running or stuck in defrost, or a timer that won't advance

• Disconnect power before servicing
• Access the timer (commonly in the control housing or machine compartment)
• Note/photograph wire positions and move leads one at a time to the new timer; mount securely
• Restore power and monitor for proper cycling; some models allow using the timer's advance slot to start a test defrost

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
