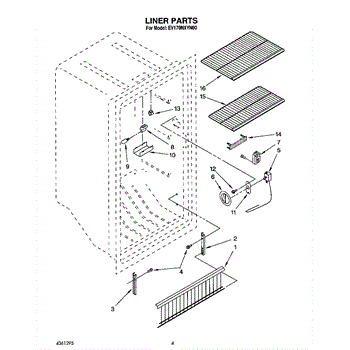

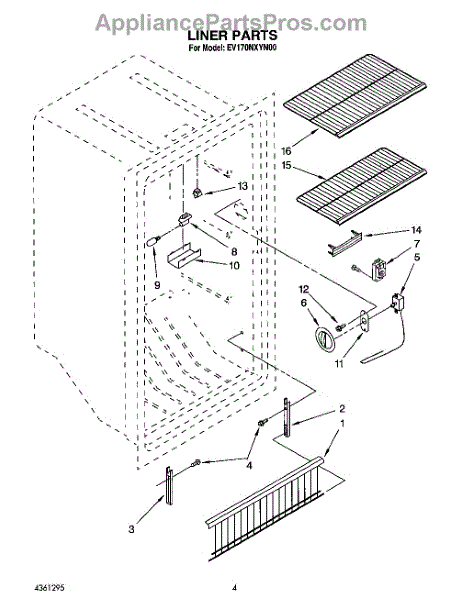

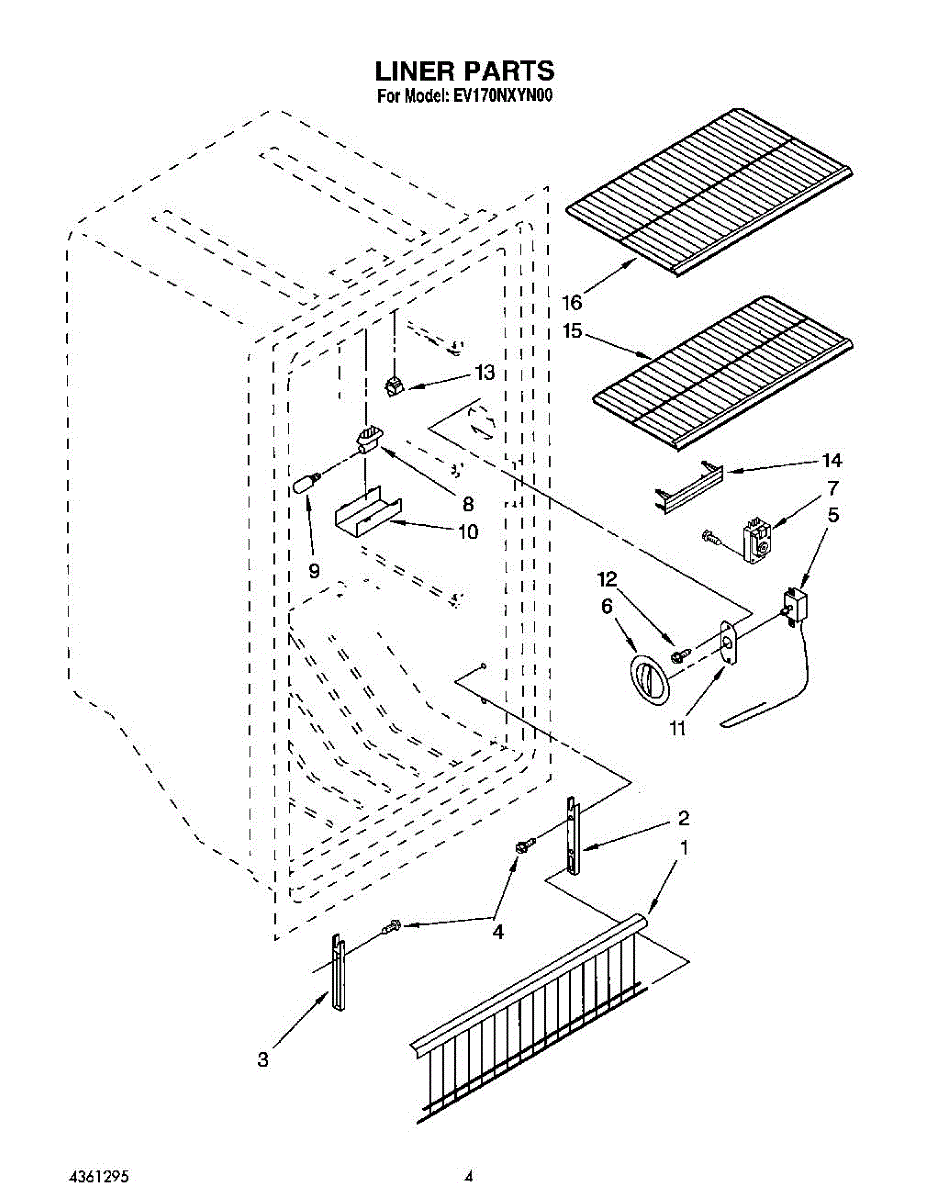

Parts for Whirlpool EV170NXYN00: 03 - Liner Parts

This gate support is the structural bracket that stabilizes the gate or flap inside your appliance, keeping it aligned and moving freely. Replacing a worn support restores smooth operation and helps eliminate noise from loose or misaligned parts.

• Provides stable support for the gate/flap within the assembly
• Maintains correct alignment and clearance for smooth opening/closing
• Reduces excess movement that can cause rattling or rubbing
• Replace if the gate feels loose, binds, won't stay closed, or the support is cracked/broken

What's included: 1 gate support Install notes:

• Disconnect power; also turn off gas or water supply
• Allow the unit to cool and wear cut-resistant gloves
• Access the gate assembly and note fastener locations/orientation before removal
• Transfer existing hardware, secure the new support, and verify smooth gate movement before reassembly

This thermostat regulates the appliance's internal temperature by cycling the cooling or heating circuit on and off to maintain your set point. Replacing a failing thermostat restores accurate temperature control and consistent performance.

• Monitors temperature and opens/closes electrical contacts to maintain the selected setting
• Helps resolve symptoms like temperatures that drift, nonstop running, or failure to start/stop at the set point
• Can address an unresponsive or erratic control knob and irregular cycling
• Restores stable, predictable operation after a worn or stuck thermostat

• Disconnect power before servicing; work in a cool, dry area
• Note wire positions; transfer leads one at a time to the new control
• Mount the control securely and align the control shaft with the knob
• Restore power and verify proper cycling with a thermometer

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement light bulb restores visibility inside your appliance so you can quickly see food, settings, and contents. Replace a burned-out or flickering bulb to bring back bright, reliable illumination in compatible models. What it does:

• Provides interior light when the door is opened or the light switch is activated
• Directly replaces a failed, dim, or intermittently flickering bulb
• Helps you see items and controls clearly during use
• Common signs you need this part: light won't turn on, flickers, is very dim, or the bulb is visibly damaged

• 1 light bulb

• Disconnect power (unplug the appliance or switch off the circuit breaker) before starting
• Allow the old bulb to cool completely to avoid burns
• Remove any lens or cover as your model requires; carefully remove the old bulb and handle the new bulb with a clean cloth or gloves
• Do not exceed the bulb type/wattage specified for your model; restore power and test the light

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Air duct baffle that seals and directs airflow between freezer and fresh-food compartments, helping maintain even temperatures and reduce temperature fluctuations. Replaces a worn or broken vent plug to restore proper airflow. What it does:

• Directs cold air through the refrigerator air duct to help balance temperatures between compartments.
• Seals the duct opening to limit warm air intrusion and reduce uneven cooling.
• Common symptom: refrigerator or fresh-food compartment feels warmer than expected or shows inconsistent cooling.
• Plastic replacement part; use when the existing vent plug is cracked, warped, or missing.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Access typically requires opening the refrigerator interior; remove shelves or bins as needed for clearance.
• Part generally snaps or slides into the duct opening—minimal tools may be required; handle clips and plastic gently to avoid breakage.
