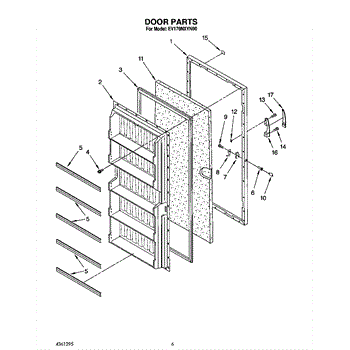

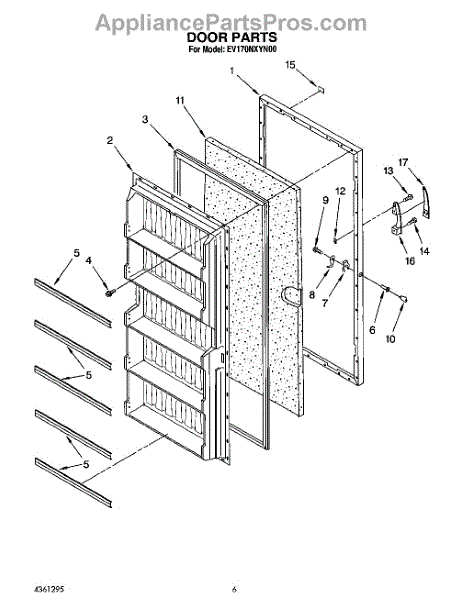

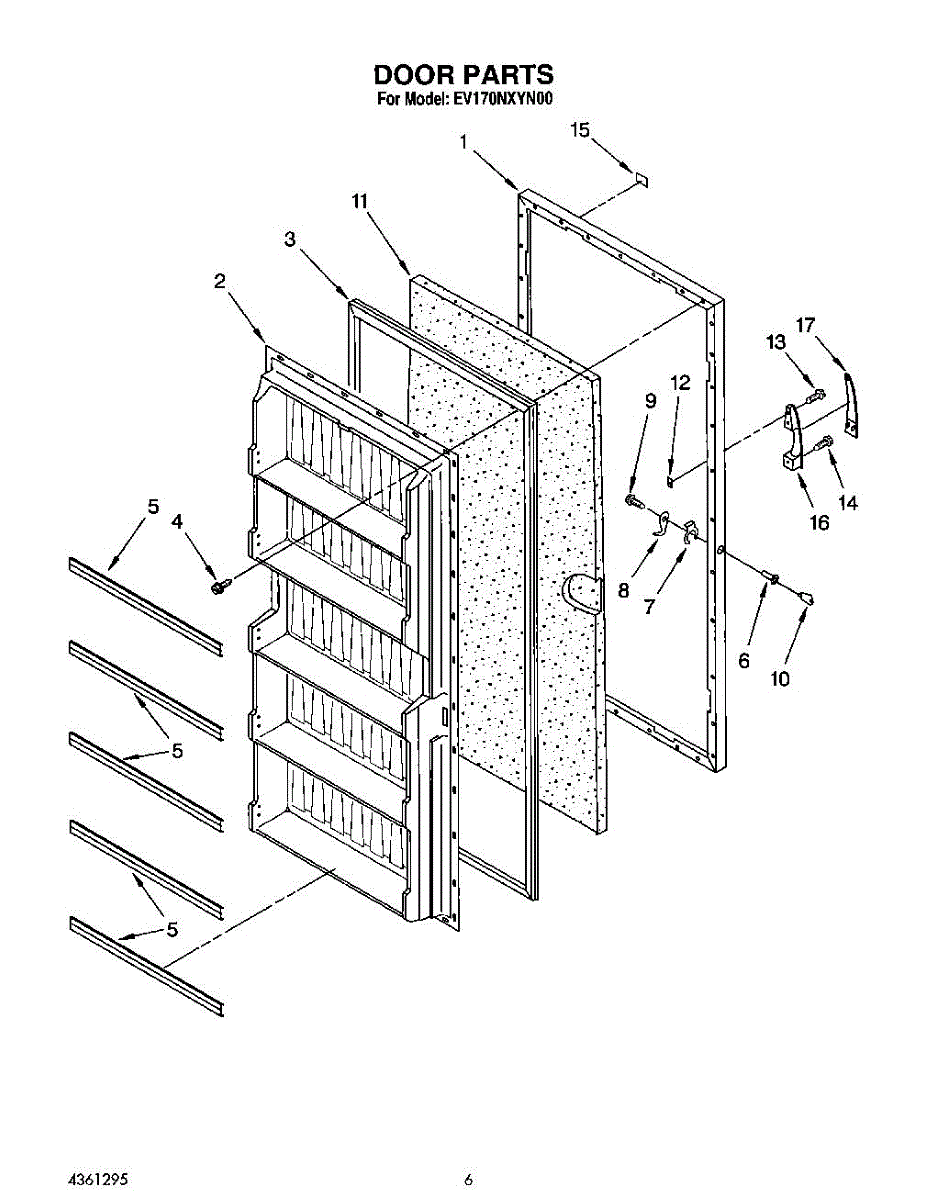

Parts for Whirlpool EV170NXYN00: 04 - Door Parts

This replacement OEM part is a door gasket for refrigerators. The door gasket, sometimes called the door seal, is the rubber piece that fits around the interior door of the refrigerator, creating a seal that prevents warm air from entering the refrigerator. Over time, the door gasket can become damaged after continuous use. If the gasket becomes cracked or is no longer able to tightly secure the door, it might be time to replace it. To replace the seal, begin by opening the refrigerator door. Locate the least secure part of the seal and begin to pull it out from its groove. Pull firmly from one corner to the other until the entire seal has been removed. After removal, proceed to place the new seal into its proper position by pushing it down into the groove of the refrigerator door that attaches it. Start from one corner until the seal completely covers the perimeter of the door. Once secured, close the refrigerator door.This genuine replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears, and Kenmore brand refrigerators.

Size: 8 x 1/2 ab.

This lock assembly secures the appliance door/lid and enables normal cycle starts by engaging the latch. Replaces a worn or broken lock to restore proper door closure and allow the unit to begin and complete cycles reliably. What it does

• Physically latches the door/lid so the appliance can start and run
• Provides the mechanical engagement the control checks before permitting operation
• Common symptom: door won't stay closed or latch does not engage
• Common symptom: appliance won't start, won't advance or shows a door/lock fault

• Disconnect power (and water supply for washers) before beginning any service
• Handle small parts carefully and note their orientation for reassembly
• If wiring is present, disconnect and reconnect matching connectors only; do not force

Size: 8 x 1/2 ab.

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.
