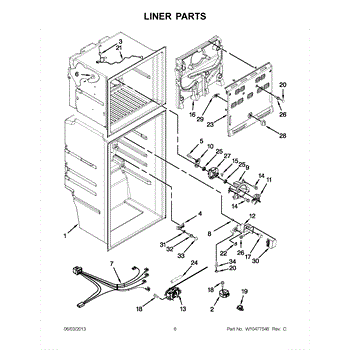

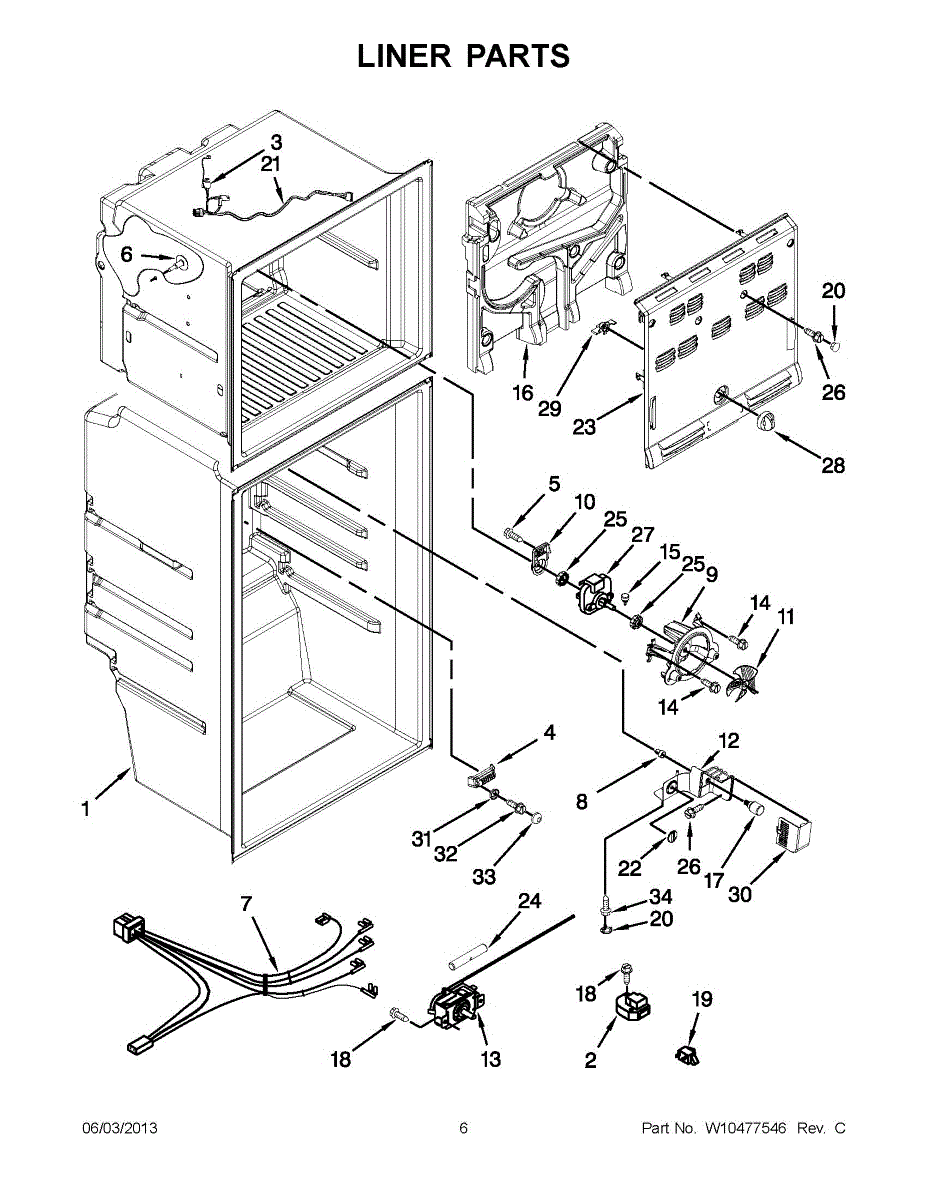

Parts for Whirlpool WRT111SFAF00: 03 - Liner Parts

This mechanical defrost timer advances the refrigerator's defrost cycle so the evaporator periodically melts accumulated frost. It helps restore normal cooling cycles and prevents excessive frost buildup for more reliable refrigerator performance. What it does:

• Advances the appliance between cooling and defrost modes on a timed schedule
• Stops the compressor during defrost so accumulated ice on the evaporator can melt
• Commonly replaced when heavy frost builds on the evaporator or the fridge/freezer cycles abnormally
• Can address symptoms such as excessive frost, reduced cooling, or continuous compressor operation

• Disconnect power to the appliance before starting any repair
• Access the timer through the back or control area per your model's service instructions
• Note wire locations or take a photo before disconnecting to ensure correct reassembly

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

This support mounting bracket helps hold and stabilize internal components so assemblies stay aligned and reduce excess movement. Replacing a worn or broken support restores proper fit and helps reduce noise or rubbing caused by loose parts. What it does:

• Provides structural support for an internal assembly to maintain alignment
• Helps prevent sagging, misalignment, and component-to-component rubbing
• Reduces vibration-related noise when the appliance is operating
• Restores proper spacing that can prevent wear on adjacent parts

• Disconnect power (and water, if applicable) before starting any repairs
• Handle plastic brackets carefully to avoid cracking; use proper hand tools
• Follow the appliance service manual for exact removal and reinstallation steps
• If fasteners or clips are damaged, replace them to ensure a secure fit

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This thermostat monitors and regulates oven temperature to help the range reach and maintain the set cooking temperature. Replacing a faulty thermostat restores more consistent baking and roasting results. What it does:

• Senses oven temperature and signals the controller to cycle heating for consistent temperatures.
• Helps prevent the oven from running continuously or failing to reach set temperature.
• Common symptoms that indicate failure: oven won't heat properly, temperature swings, or uneven cooking.
• Direct replacement for the original thermostat used to restore accurate temperature control.

• Disconnect power to the appliance (unplug or shut off circuit breaker) before servicing.
• Access may require removing the oven back panel or control panel.
• Handle the thermostat sensing element gently to avoid damage; route any capillary/sensor tubing carefully.

Size: 8-18 x 1/2 inch.

The LED Lamp 120V E14 is an OEM part for Whirlpool refrigerators. This lamp provides interior lighting, illuminating the refrigerator compartments to help you easily see and access your food items. The LED technology ensures energy efficiency and long-lasting performance compared to traditional bulbs.

Causes of a bad LED lamp can include electrical issues, power surges, or simply reaching the end of its lifespan. Without proper lighting, the refrigerator can become inconvenient to use, especially in low-light conditions.

Symptoms of a bad LED lamp include:

• Dim or flickering light inside the refrigerator
• Complete failure of the interior light
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This evaporator cover is the interior housing that protects the refrigerator freezer's evaporator coil and helps direct airflow for consistent cooling. Replacing a damaged cover restores proper airflow paths and secures components inside the evaporator compartment. What it does:

• Shields the evaporator coil from direct contact and damage
• Helps channel cold air through the freezer for even cooling
• Reduces ice buildup caused by damaged or warped covers
• Prevents loose components from contacting the evaporator

• One evaporator cover

• Disconnect power to the appliance before beginning any repairs
• Remove all food and shelving from the freezer to access the evaporator area
• Handle the cover carefully to avoid breaking plastic tabs; use the factory-fastening points
• Follow the appliance service manual for steps and torque specs; ensure clips and seals are seated before restoring power

This rubber grommet cushions and protects components where wiring, tubing or hardware pass through panels, helping reduce vibration and wear. Replace worn grommets to restore a snug, quiet fit and help prevent chafing. What it does:

• Cushions parts to reduce vibration and noise during operation
• Protects wires, hoses, and edges from abrasion where they pass through openings
• Keeps components aligned and helps maintain a secure fit
• Prevents metal-to-metal contact that can lead to premature wear

• Unplug the appliance or shut off power before beginning any repair
• Inspect the surrounding mounting area and replace any damaged fasteners or seals
• Pry out the old grommet carefully to avoid enlarging the opening; press the new grommet into place until fully seated

Size: 8 x 1/2 ab.

This replacement vent motor drives the appliance's ventilation system. Restoring a strong, consistent motor ensures proper airflow so heat and moisture are moved away from critical areas and the unit operates as designed. What it does:

• Powers the vent mechanism or blower to move air through the appliance
• Helps regulate internal temperature and moisture during operation
• Common symptoms include no vent/fan operation, weak airflow, loud humming or grinding, or intermittent/stuck vent action
• Restores proper ventilation performance when the original motor has seized, overheated, or become noisy

• Disconnect power at the breaker before servicing
• Allow the unit to cool and use gloves; sheet-metal edges can be sharp
• Note wiring and mounting orientation; transfer any fan blade, bracket, or linkage from the original motor as required
• After mounting, confirm free rotation/vent movement before restoring power

This replacement thermostat knob restores safe, easy temperature selection on compatible ranges and ovens. It provides a secure grip and clear setting alignment so you can accurately set bake and broil temperatures. What it does:

• Replaces a cracked, stripped, or missing temperature control knob
• Allows smooth turning to select oven temperature settings
• Restores tactile feedback and alignment with the control panel
• Helps eliminate slipping or poor connection between user and thermostat shaft

• Includes: 1 thermostat knob

• Disconnect power to the appliance before beginning any service
• Most knobs pull straight off the control shaft; align splines and press firmly to install
• If a set screw is present, tighten securely but do not overtighten

Deflector directs airflow inside the appliance to restore consistent temperature distribution and reduce hotspots or frost buildup. Replacing a cracked or missing deflector helps maintain even cooling and reliable performance. What it does:

• Guides internal airflow so cold or warm air reaches the intended compartments.
• Helps prevent uneven temperatures and localized frost or thawing.
• Restores proper circulation when a broken or dislodged deflector disrupts airflow.
• Simple, passive part — when damaged it often causes uneven cooling or increased frost.

• Disconnect power (unplug appliance or switch off breaker) before beginning service.
• Remove shelves, panels, or trim as needed for access; keep fasteners organized.
• Install in the correct orientation; secure without forcing parts or over-tightening.

Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening
