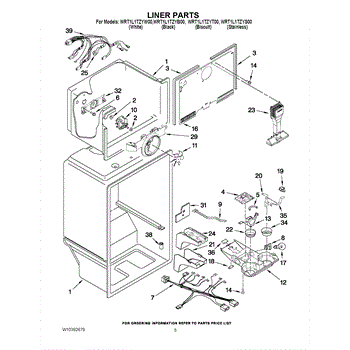

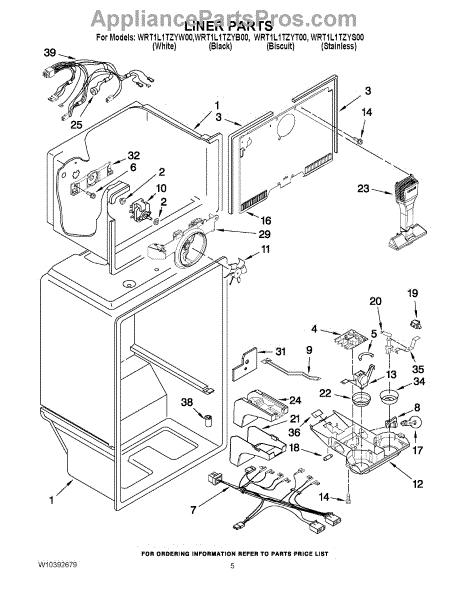

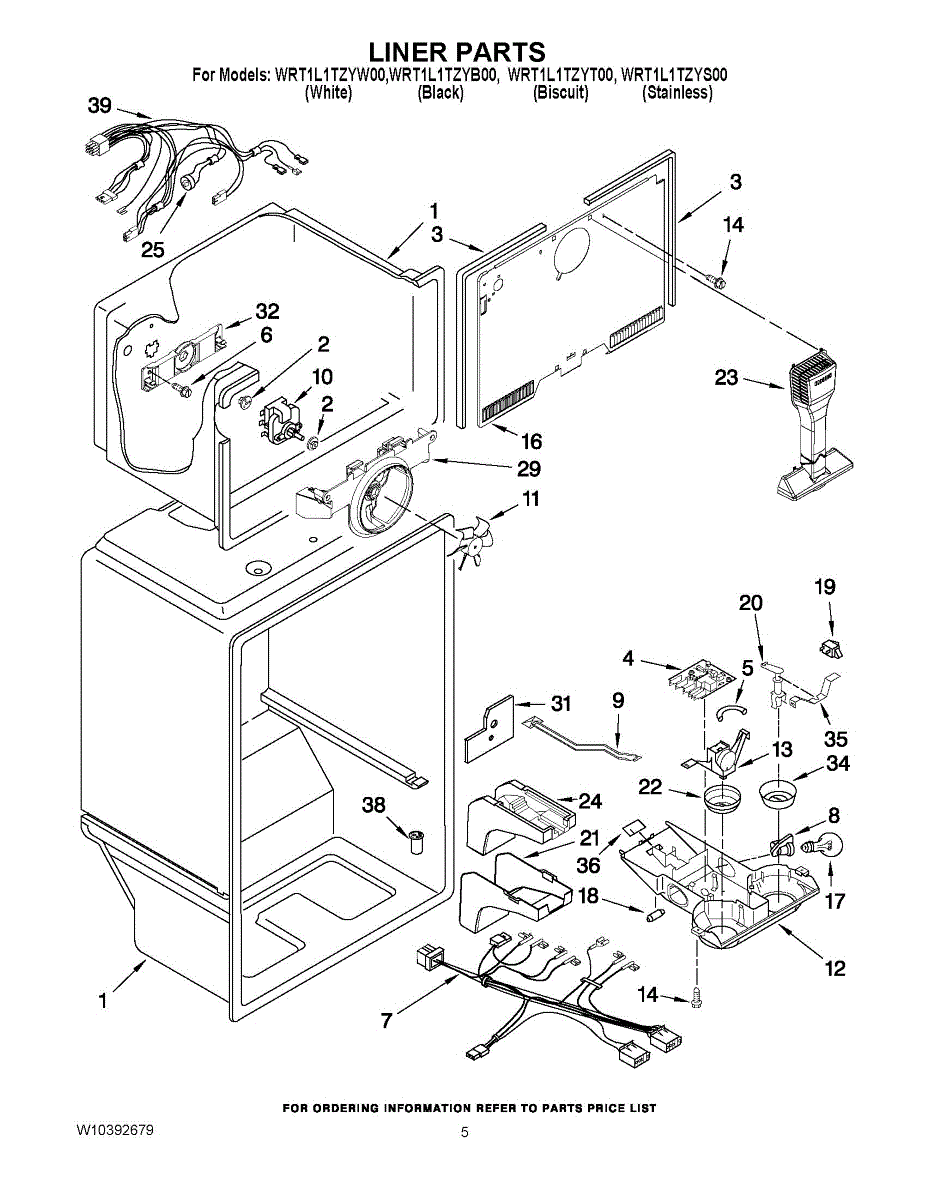

Parts for Whirlpool WRT1L1TZYS00: 03 - Liner Parts

Stops refrigerator fan rattling and buzzing noise. This rubber grommet cushions the fan motor to reduce vibration. Simple DIY fix, takes under 30 minutes.

Fix frost buildup and inconsistent cooling with a new evaporator cover gasket. This seal prevents moisture accumulation at the evaporator compartment.

Fix clicking relay sounds, frozen fresh food, or warm freezer temps with this refrigerator control board. Regulates defrost cycles and cooling functions.

Refrigerator not cooling consistently or compressor short cycling? This thermostat capillary tube shield protects temperature sensing. DIY repair.

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

Wire harness for refrigerators. Replaces damaged, frayed, or disconnected wiring that connects electrical components. Essential when wires are worn or broken.

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

Refrigerator not cooling but freezer works? The evaporator fan motor circulates cold air to both compartments. DIY-friendly repair, typically 10-20 minutes.

Fridge not cooling but freezer works? A worn evaporator fan blade prevents cold air circulation. Easy 15-minute DIY fix with our video guide.

Control box housing for refrigerators. Protects electrical components and wiring. Replace if cracked, broken, or damaged to restore proper coverage.

This thermostat is a temperature-sensitive safety switch that monitors heat and opens or closes the circuit at a set point. Replacing a failed thermostat restores reliable temperature protection and corrects issues caused by tripping or stuck contacts.

• Monitors component/cavity temperature and trips at a preset limit
• Opens (or closes) the electrical circuit to prevent overheating or activate cooling functions
• Common symptoms: no heat or intermittent heating, unit won't start or shuts off during use, cooling/vent fan runs constantly or never turns on
• Useful diagnostic clue: faulty thermostats may test open or stuck closed at room temperature

• Disconnect power at the breaker before servicing; if used in a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire locations; transfer one lead at a time and secure the thermostat in the original mounting position for proper sensing
• Ensure clean metal-to-metal contact with the mounting surface; do not overtighten screws
• After installation, restore power and verify normal operation

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Fix dim or uneven refrigerator lighting with a new air diffuser light cover. Shields the bulb and directs light evenly. Simple 5-minute replacement.

Freezer icing up and not defrosting? This defrost thermostat monitors evaporator temperature to trigger defrost cycles. Located behind freezer wall.

The refrigerator orifice is a small precision opening that controls water flow rate to the ice maker or water dispenser system. Located within the water line assembly, it regulates proper pressure and flow. Replace if water flow is too slow, too fast, or completely blocked, affecting ice production or dispenser function.

This is a metal heat shield designed to protect internal components from excessive heat inside the refrigerator or freezer compartment. It acts as a thermal barrier, typically installed near the defrost heater or compressor area, preventing heat damage to surrounding parts. Replace this shield if it is warped, corroded, or missing, which can lead to uneven cooling or frost buildup.

Secures internal components in your refrigerator to keep parts stable and prevent rattling. Replace if bent, broken, or missing to restore alignment.

Fix inconsistent cooling or freezing issues with this refrigerator thermostat seal. This rubber gasket prevents air leaks for proper temperature control.

Fix ice maker or water dispenser issues with this valve tube body. Routes water from the main valve to dispenser and ice maker. Stops leaks from damaged tubes.
